RX0920 Flat-Shaped Enamelled Wirewound Resistor
RX0920 Flat-Shaped Enamelled Wirewound Resistor
RX0920 Flat-Shaped Enamelled Wirewound Resistor
RX0920 Flat-Shaped Enamelled Wirewound Resistor
RX0920 Flat-Shaped Enamelled Wirewound Resistor
RX0920 Flat-Shaped Enamelled Wirewound Resistor
Specifications
Brand Name :
HUAXING
Model Number :
RX0920
Place of Origin :
China
MOQ :
1000
Payment Terms :
T/T
Description

RX0920 Flat-shaped Enamelled wirewound resistor

Product Introduction
■ Product Features: Radial lead-out leads, equipped with mounting brackets for user convenience. Enamel-coated surface, strong pollution resistance, moisture-resistant, chemically inert, and high-temperature resistant.
■ Application Area: Used in direct current or low-frequency alternating current circuits of large-scale.
■ Product Standard: Technical specifications for RX0920 Enamel-coated Flat Wirewound Resistor according to Q/RW186-1985.
■ Capable of producing products compliant with RoHS, REACH requirements.

RX0920 Flat-Shaped Enamelled Wirewound Resistor

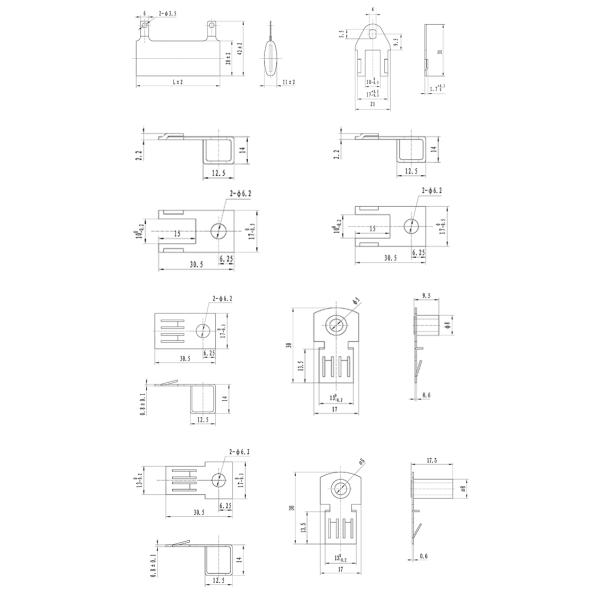

specifications and models rated power(W) resistance range(Q)

Size ( m m )

L

 Remark
RX0920-20W 20 5.1~1K 33 Bracket:a,1
RX0920-55W 55 5.1～5.1K 90 Bracket:a,I,Ⅱ,Ⅲ,IV,V

Key Test Items:

Test Items Test Conditions Performance Requirements Test Standards
Overload 10 times rated power load for 5s △R ≤ ±(2%R + 0.1Ω) GB/T 5732-1985 Section 2.3.4
Temperature Rise Ambient Temperature: (15 to 35)℃, rated power ≤275℃ GB/T 5729-1985 Section 4.14
Solderability HISnPb39, 75W soldering iron method, tinning method Evenly tinned, freely flowing GB/T 2423.28-1982
Vibration Frequency: (10 to 500)Hz, acceleration: 98m/s², 1h △R ≤ ±(1%R + 0.05Ω) GB/T 2423.10-1981
Steady-state Damp Heat Temperature: (40±2)℃, relative humidity: (93±3)%, 96h △R ≤ ±(5%R + 0.1Ω) GB/T 2423.03-1981
Room Temperature Durability Ambient Temperature: (15 to 35)℃, rated power, 1.5h powered; 0.5h unpowered, 1000h △R ≤ ±(5%R + 0.1Ω) GB/T 5729-1985 Section 4.25

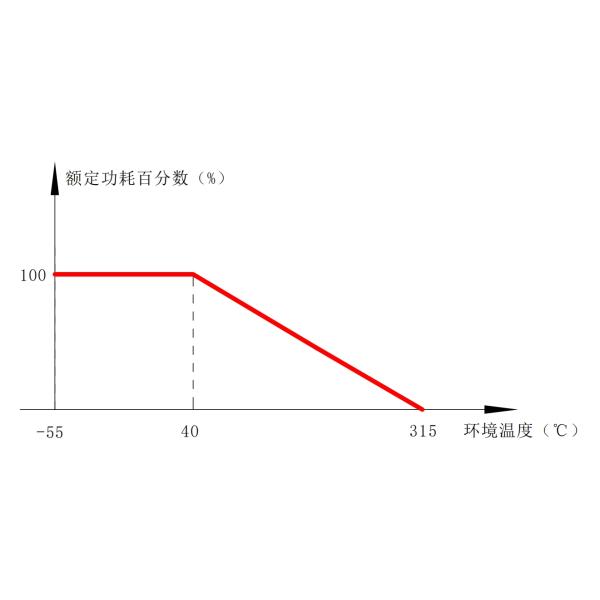

Power dissipation curve:

RX0920 Flat-Shaped Enamelled Wirewound Resistor

Ordering Example:

Model Number :RX0920

Rated Power:20W

Nominal Resistance:10Q

Resistance Tolerance:±5%

Remark:a

Quantity:1000 pieces
