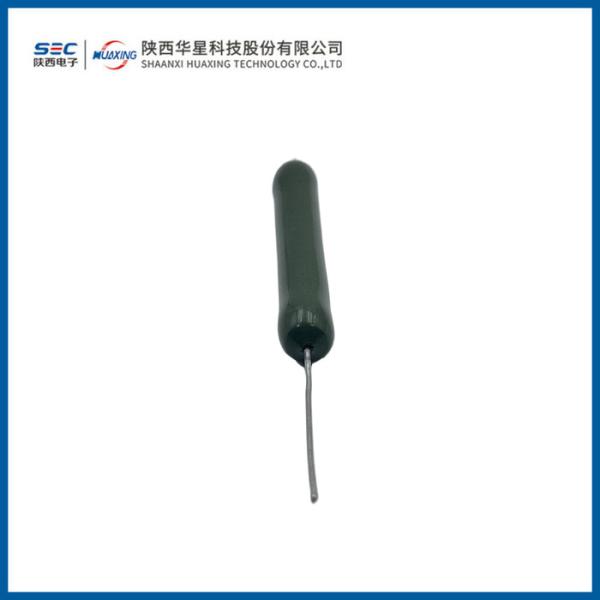

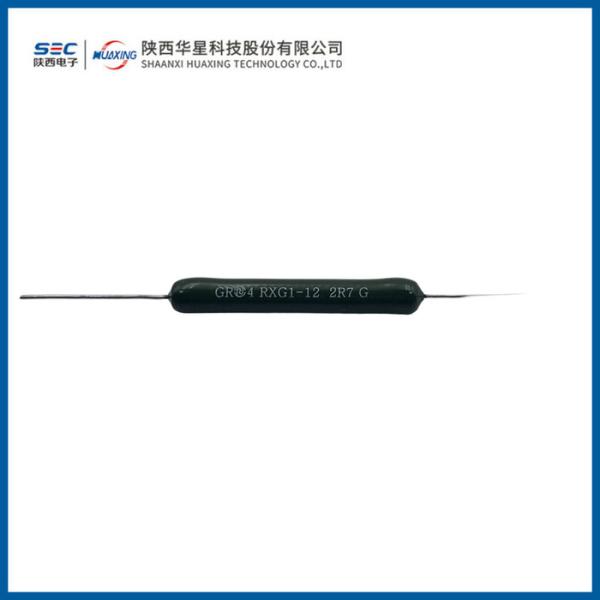

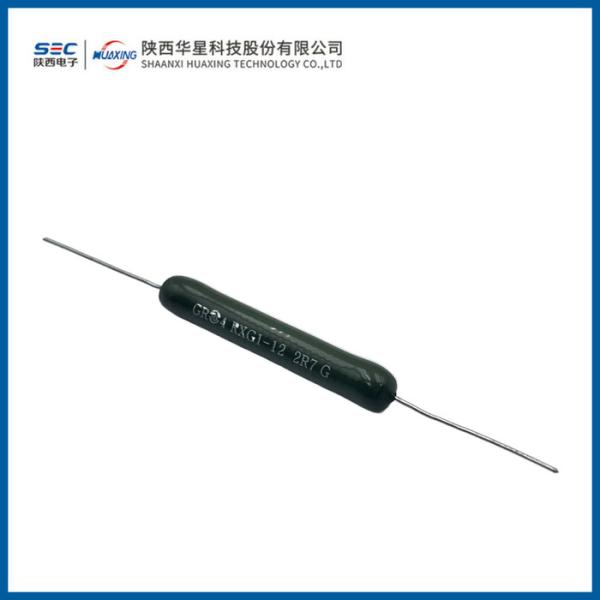

RXG1 Vitreous Enamelled Wirewound Resistors
RXG1 Vitreous Enamelled Wirewound Resistors
RXG1 Vitreous Enamelled Wirewound Resistors
RXG1 Vitreous Enamelled Wirewound Resistors
RXG1 Vitreous Enamelled Wirewound Resistors
RXG1 Vitreous Enamelled Wirewound Resistors
Specifications
Brand Name :
HUAXING
Model Number :
RXG1
Place of Origin :
China
MOQ :
1000
Payment Terms :
T/T
Description

RXG1 Vitreous Enamelled Wirewound Resistors

Product Introduction

■ Product Features: Axial lead-out leads, compact size, high power load. Enamel-coated surface, strong pollution resistance, moisture-resistant, chemically inert, and high-temperature resistant.

■ Application Area: PCB mounting, used in direct current or low-frequency alternating current circuits.

■ Lead Forming Requirements: The base of the lead should be in a fastened state, and bending should be done at a distance greater than 2mm from the end face of the resistor.

■ Product Standard: Detailed specifications for RXG1 Enamel Power Wirewound Resistor according to SJ2746-1987.

■ Can provide products with resistance deviation of ±2% (G) .

■ Capable of producing products compliant with RoHS, REACH requirements.

Size:

RXG1 Vitreous Enamelled Wirewound Resistors

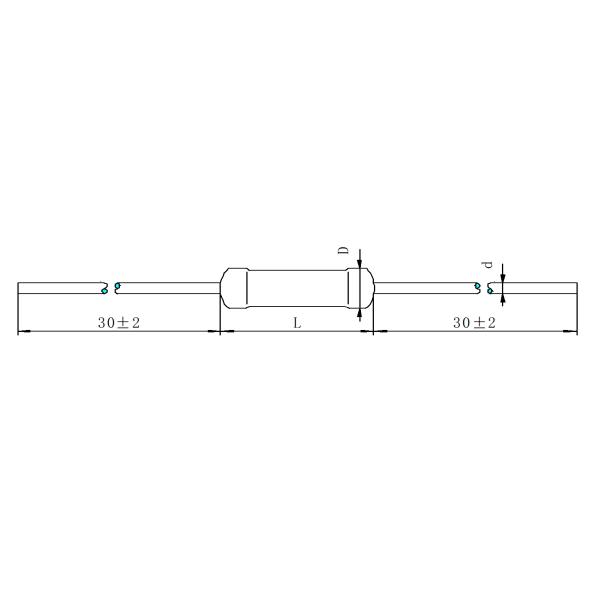

RXG1 Outline drawing:

specifications and models rated power(W) resistance range(Ω) Peak Voltage (DC or AC RMS) (V) Size ( m m )
Lmax ΦDmax φd
RXG1-2.5W 2.5 1~1k 100 12.7 5.6 0.8
RXG1-3W 3 1～1k 120 14 7
RXG1-4.3W 4.3 1～3.6k 160 23
RXG1-6W 6 1～6.8k 200 22.2 8
RXG1-6.5W 6.5 1～6.8k 240 27
RXG1-8W 8 1～9.1k 400 34.7 1
RXG1-9W 9 1~11k 500 38.1 0.8
RXG1-11W 11 1~15k 750 46.8 10.8 1
RXG1-12W 12 1～13k 750 53.5 8 0.8

Key Test Items:

Test Items Test Conditions Performance Requirements Test Standards
Resistance Variation with Temperature Lower Category Temperature: (-55±3)℃, Upper Category Temperature: (+200±2)℃ ≥10Ω: ±200ppm/℃, 5Ω~10Ω: ±400ppm/℃, <5Ω: No specific requirement GB/T 5729-1985 Section 4.8
Overload 10 times rated power load for 5s △R ≤ ±(1%R + 0.05Ω) GB/T 5732-1985 Section 2.3.4
Lead Strength Pull Force: ≤6.5W; 10N, ≥8W; 20N, 10s △R ≤ ±(1%R + 0.05Ω) GB/T 2423.29-1982
Solderability Bath Temperature: (235±5)℃, Immersion Time: (2±0.5)s Solder wets the lead-out ends and flows freely GB/T 2423.28-1982
Vibration Frequency: (10-500)Hz, Amplitude 0.75mm or Acceleration 98m/s², Time: 6h △R ≤ ±(1%R + 0.05Ω) GB/T 2423.10-1981
Steady-state Damp Heat Temperature: (40±2)℃, Relative Humidity: (93±3)%, 96h △R ≤ ±(5%R + 0.1Ω) GB/T 2423.03-1981
Room Temperature Durability Ambient Temperature: (1535)℃, rated power, 1.5h powered; 0.5h unpowered, 1000h △R ≤ ±(5%R + 0.1Ω) GB/T 5729-1985 Section 4.25

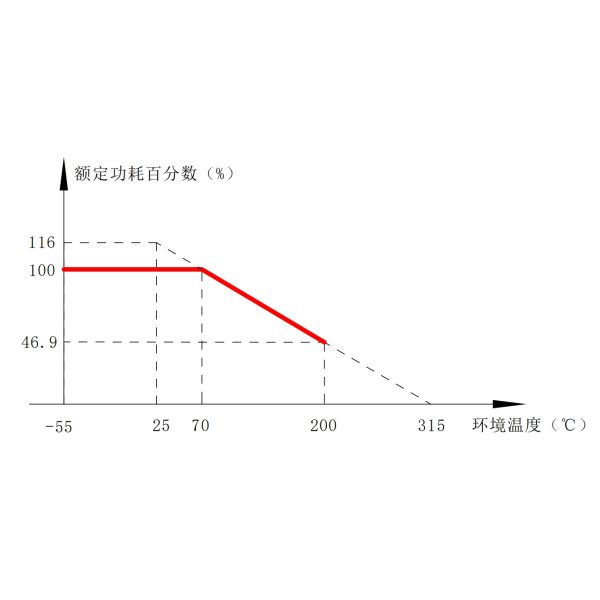

Power dissipation curve:

RXG1 Vitreous Enamelled Wirewound Resistors

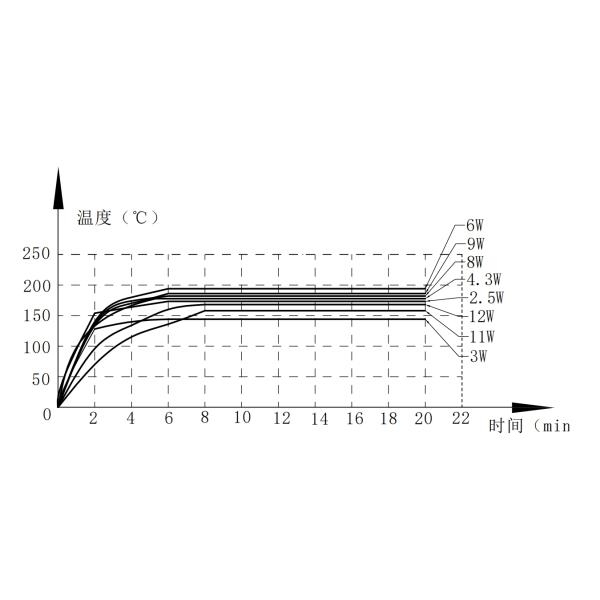

Temperature rise curve:

RXG1 Vitreous Enamelled Wirewound Resistors

Ordering Example:

Model Number :RXG1

Rated Power:12W

Nominal Resistance:10Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
