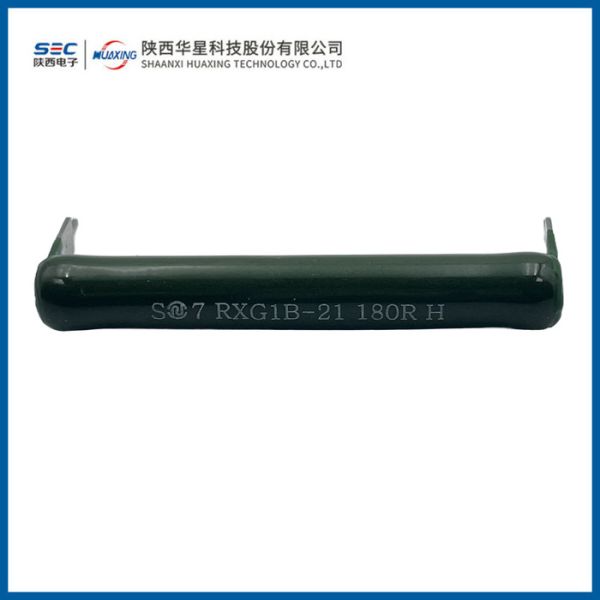

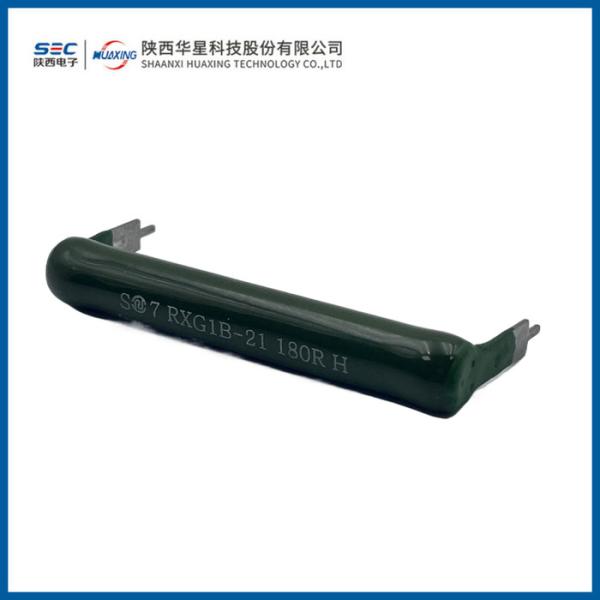

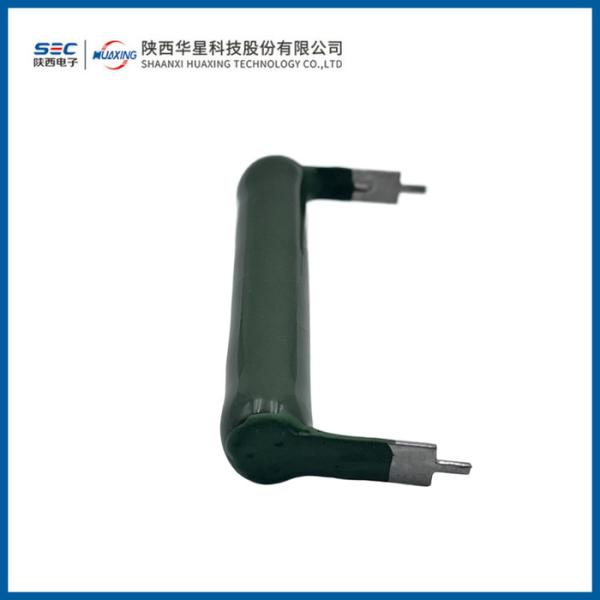

RXG1B Vitreous Enamelled Wirewound Resistors

Product Introduction

■ Product Features: Radial lead-out leads, compact size, high power load. Enamel-coated surface, strong pollution resistance, moisture-resistant, chemically inert, and high-temperature resistant.

■ Application Area: PCB mounting, used in direct current or low-frequency alternating current circuits.

■ Product Standard: Detailed specifications for RXG1B Enamel Power Wirewound Resistor according to Q/RW483-2010.

■ Capable of producing products compliant with RoHS, REACH requirements.

Size:

RXG1B Enamelled Wirewound Resistor

specifications and models rated power(W) resistance range(Ω) Size ( m m )

Weight

(g)

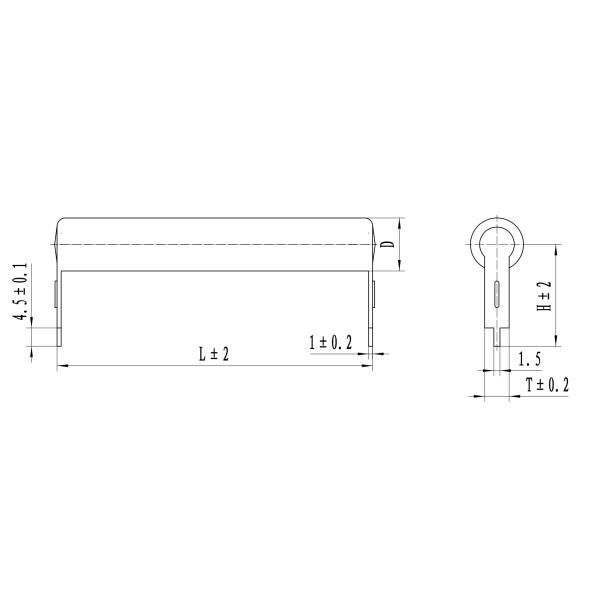

L φDmax H T
RXG1B-13W 13 5.1~4.7K 64 12 18 4 15
RXG1B-21W 21 5.1～5.6K 78 15.5 25 6 31
RXG1B-26W 26 5.1~6.2K 86 15.5 25 6 38

Key Test Items:

RXG1B Enamelled Wirewound Resistor

Main test project:

Test Item Condition Of Experiment Performance Requirement Test Criteria
The resistance value varies with the temperature

Lower limit category temperature: (-55 ± 3) ℃,

Upper class temperature: (+ 155 ± 2) ℃

≥10Ω:

±200ppm/℃,

＜10Ω:±400ppm/℃

 GB / T 5729-2003 Article 4.8
overload 10 x rated power load for 5s ΔR≤±(1%R+0.05Ω) GB / T 5732-1985, clause 2.3.4

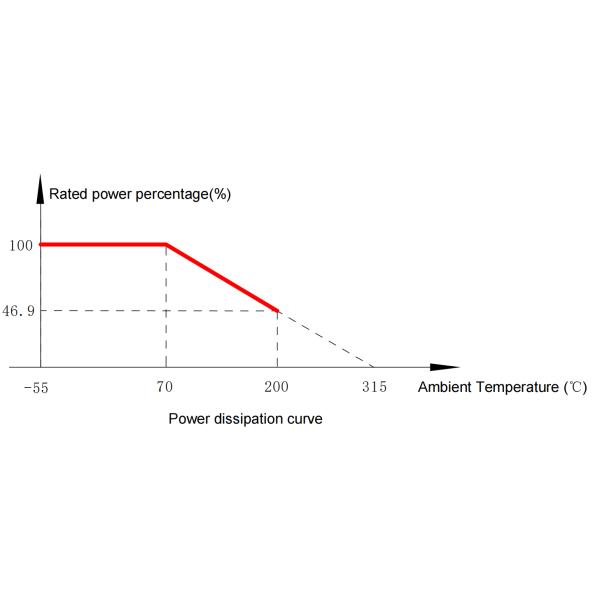

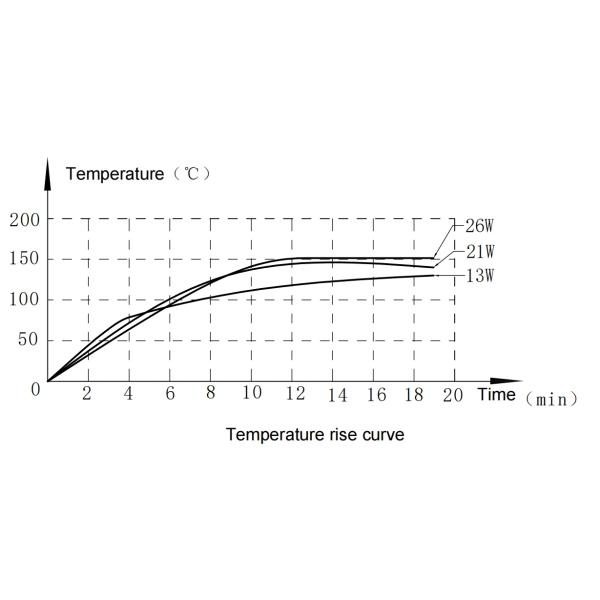

temperature rise Ambient temperature: (15~35) ℃, rated power ＜245℃ GB / T 5729-2003, Article 4.14
Lead-end strength Tension force: 40N, 10s ΔR≤±(1%R+0.05Ω) GB/T 2423.29-1999
solderability Trough temperature: (235 ± 5) ℃, dip time: (2 ± 0.5) s Uniform stained with tin, free flow GB/T 2423.28-2005
The temperature changes rapidly Temperature range: (-55~ + 155) ℃, 5 cycles ΔR≤±(1%R+0.05Ω) GB/T 2423.22-2002
collide Acceleration: 390 m/s2,4,000 times ΔR≤±(1%R+0.05Ω) GB/T 2423.06-1995
lash Acceleration: 490 m/s2, time: 11ms, semi-sine wave ΔR≤±(1%R+0.05Ω) GB/T 2423.05-1995
vibrate Frequency: (10~500) Hz, amplitude 0.75mm or acceleration 98 m/s2,6h ΔR≤±(1%R+0.05Ω) GB/T 2423.10-2008
Steady state damp heat Temperature: (40 ± 2) ℃, relative humidity: (93 ± 3)%, 96h ΔR≤±(5%R+0.1Ω) GB/T 2423.03-1993
room temperature durability Ambient temperature: (15~35) ℃, rated power, 1.5h power on; 0.5h power off, 1000h, ΔR≤±(5%R+0.1Ω) GB / T 5729-2003, Article 4.25

RXG1B Enamelled Wirewound Resistor

Ordering Example:

Model Number :RXG1B

Rated Power:21W

Nominal Resistance:10Ω

Resistance Tolerance:±5%

Quantity:1000 pieces
