MATEK MATEKSYS MR24-30-TX MLRS MAVLINK 2.4GHZ TX MODULE KIT 2.4G LoRa 30 dBm RF power For Long Range Rc Model
MLRS MAVLINK 2.4GHZ TX MODULE KIT, MR24-30-TX
Specifications
mR24-30
STM32G431KB, mLRS firmware
LoRa SX1281 with TCXO
PA/LNA SKY68383-11
RF Frequency: 2.4GHz ISM
RF power: 13dBm(min) / 20dBm / 24dBm / 27dBm / 30dBm(1000mW)
Antenna connector: IPEX MHF-1 to SMA/RP-SMA

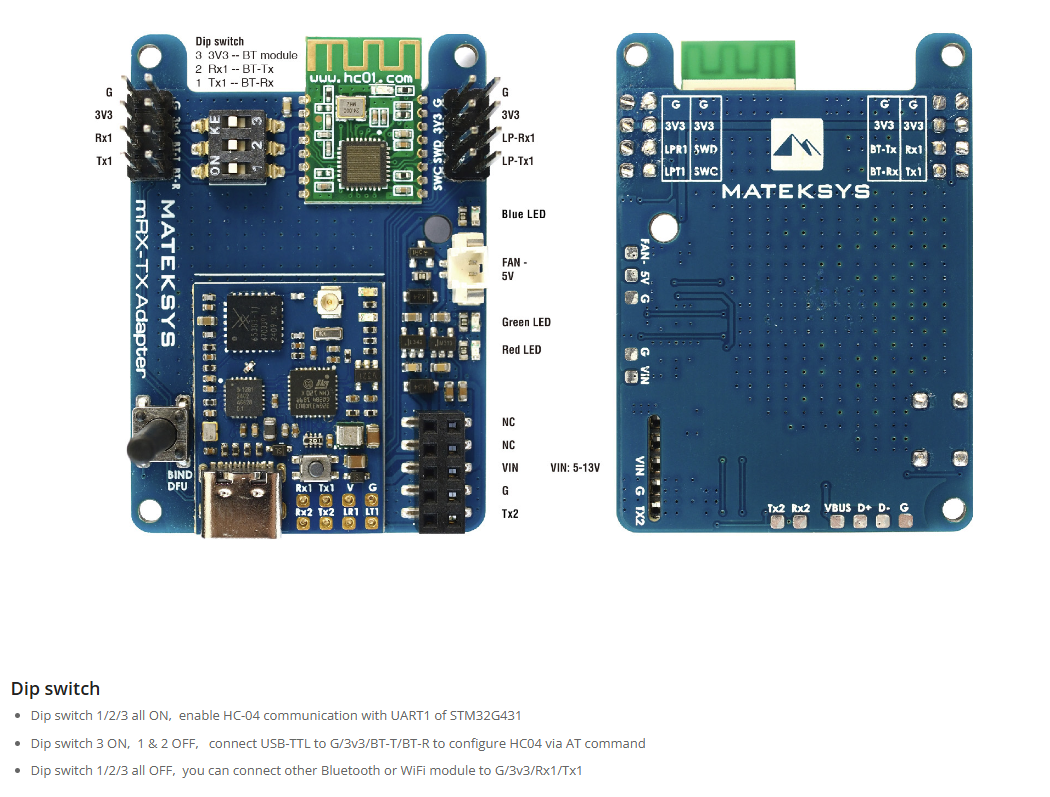

mRx-Tx Adapter
Built-in HC-04 Bluetooth module
Built-in 5V fan controller, running if ourput power>=500mW
TX2: RC IN(CRSF)
one buttom for DFU mode and Bind
Red and Green LED for mLRS status
Blue LED for bluetooth status
Power supply: 5-13V DC @ JR_PIN3 (VIN)

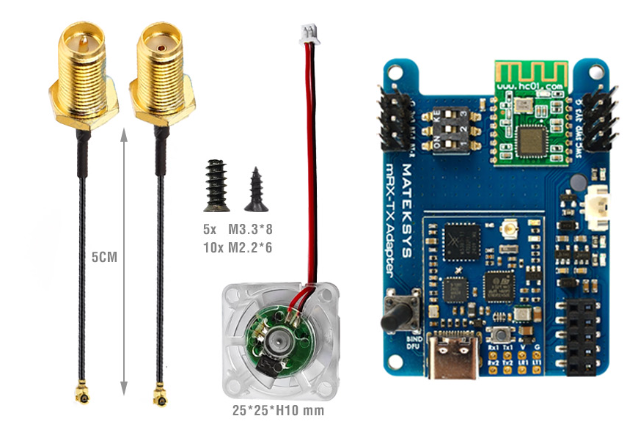

Packing:
1x mR24-30-TX
1x IPEX MHF1 to SMA adapter cable 5cm
1x IPEX MHF1 to RP-SMA adapter cable 5cm
1x 5V Fan (25*25*10mm) and some screws
no SMA antenna & 3D printed Case packed
Downloads:
JR Bay Case 3D print (stl)
mRX-TX Adapter 3D (step)
LED Status
[Red flashing 2Hz], not connected to transmitter
[Green flashing 1Hz], connected to transmitter
[Red and Green alternately ], Binding mode enabled
Binding
After powering on, press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.
https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md
Firmware
mLRS https://github.com/olliw42/mLRS/tree/main/firmware/pre-release-stm32
Target: tx-matek-mr24-30-g431kb-default
Tips
mLRS Github & Documentation
mLRS Discord
mLRS Facebook group
