Description
Product Features
brand nameMatek
Age Range14 Years & up
UseElectrical Toys
private moldNo
MaterialMetal, Plastic
place of originGuangdong, China
Tool SuppliesAssembly Category
Technical parameters:Value 10

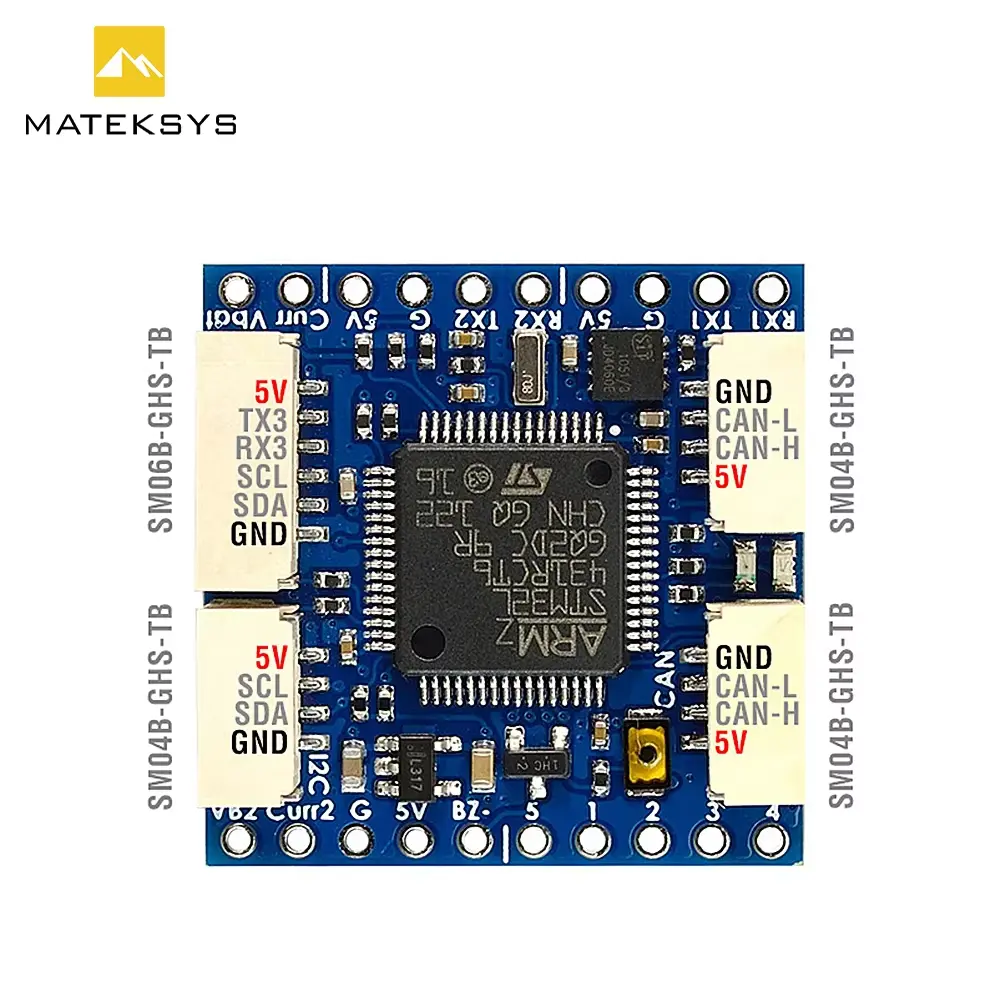

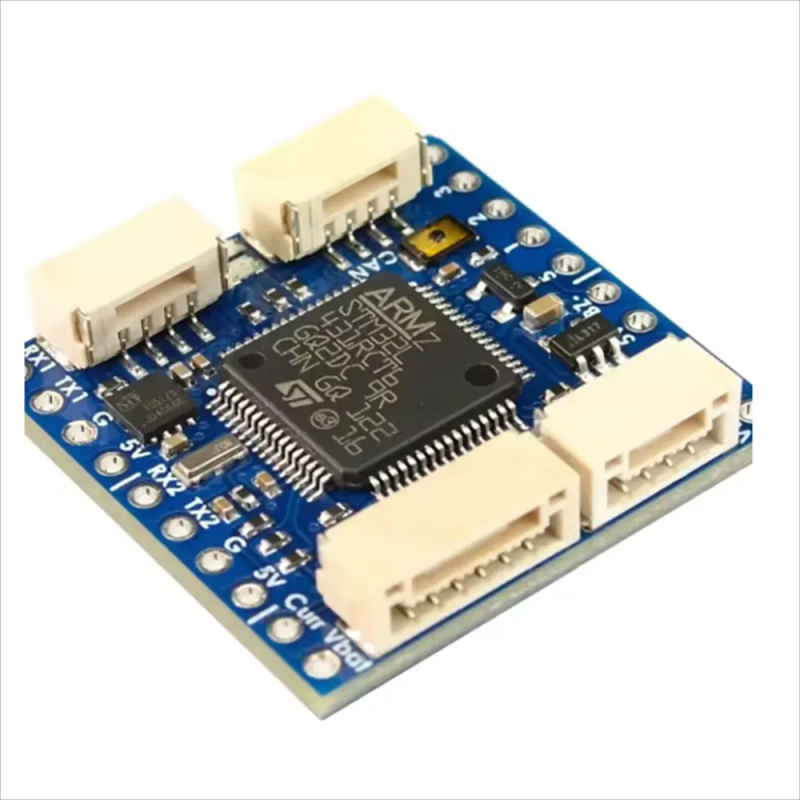

Matek Can-l431 Ap_periph Can Node Dronecan L431 26x26mm for Ardupilot Gnss Barometer Airspeed Sensor Gpio
Product Description

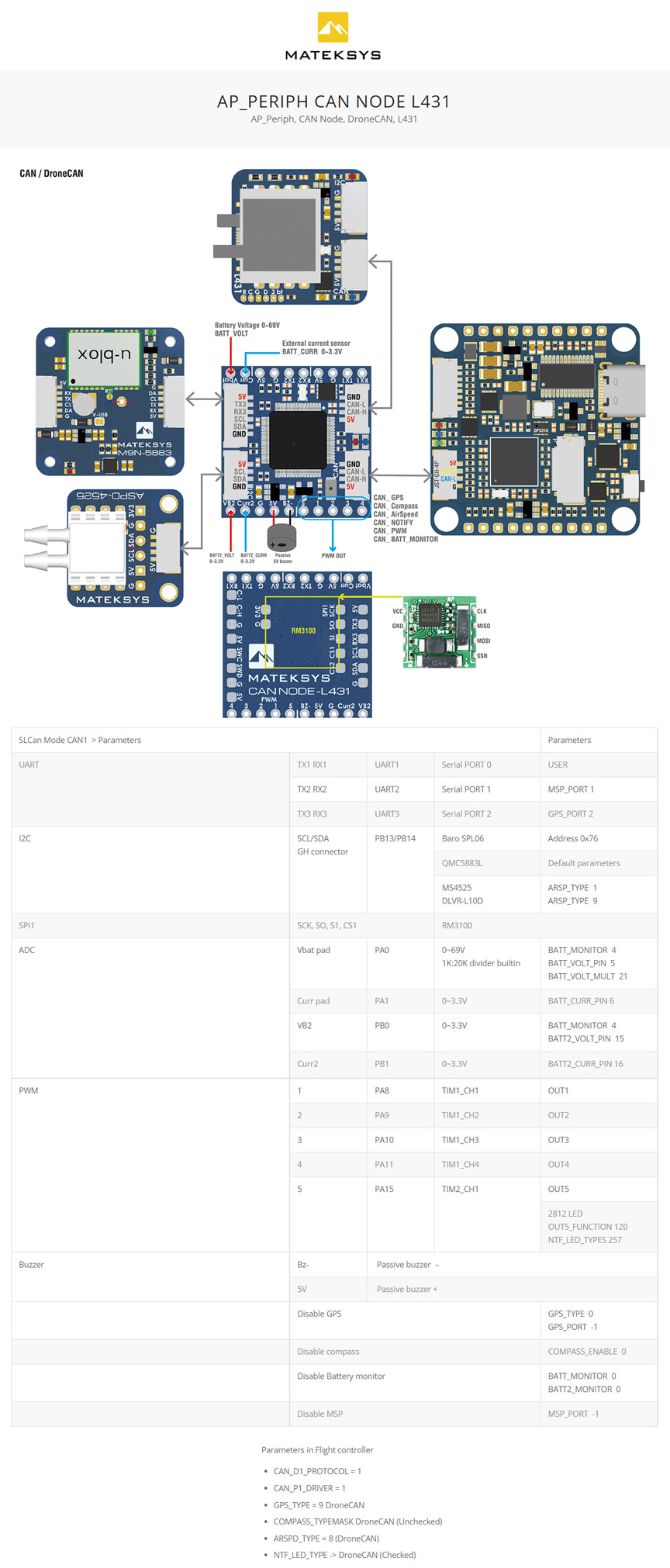

  • CAN-L431 is an Adapter Node based on ArudPilot AP_Periph firmware.
  • With this board, you can easily utilize the ArduPilot driver library to convert ArduPilot supported GNSS, Compass, Barometer,Airspeed sensor, and GPIO based (PWM, Buzzer/LED notify) peripherals to DroneCAN bus peripherals.

Specifications

  • MCU: STM32L431xC, 256KB Flash
  • CAN transceiver data rates up to 1 Mbit/s
  • 1x CAN, DroneCAN Protocol (2x GH-4P connectors in parallel)
  • 3x UARTs
    • UART1, spare
    • UART2, MSP default, DFU
    • UART3, GPS default
  • 1x I2C
    • for peripheral Airspeed sensor
    • for peripheral Barometer
    • for peripheral Compass QMC5883L
  • 1x SPI
    • for peripheral RM3100
  • 4x ADC
    • BATT_VOLT, PIN 5
    • BATT_CURR, PIN 6
    • BATT2_VOLT, PIN 15
    • BATT2_CURR, PIN 16
  • 5x PWM outputs
  • 1x GPIO with TIM16 for buzzer
  • ST debug, SWCLK & SWDIO
  • LED
    • Blue, Fast blinking, Booting
    • Blue, Slow blinking, working
    • Red, 3.3V indicator
  • Input voltage range: 4.5~5.5V @5V pad/pin
  • Power consumption: 40mA
  • Operating Temperatures: -20~80 °C
  • Physical
    • 2x JST-GH-4P(SM04B-GHS-TB) for CAN
    • 1x JST-GH-4P(SM04B-GHS-TB) for I2C
    • 1x JST-GH-6P(SM06B-GHS-TB) for UART3 I2C

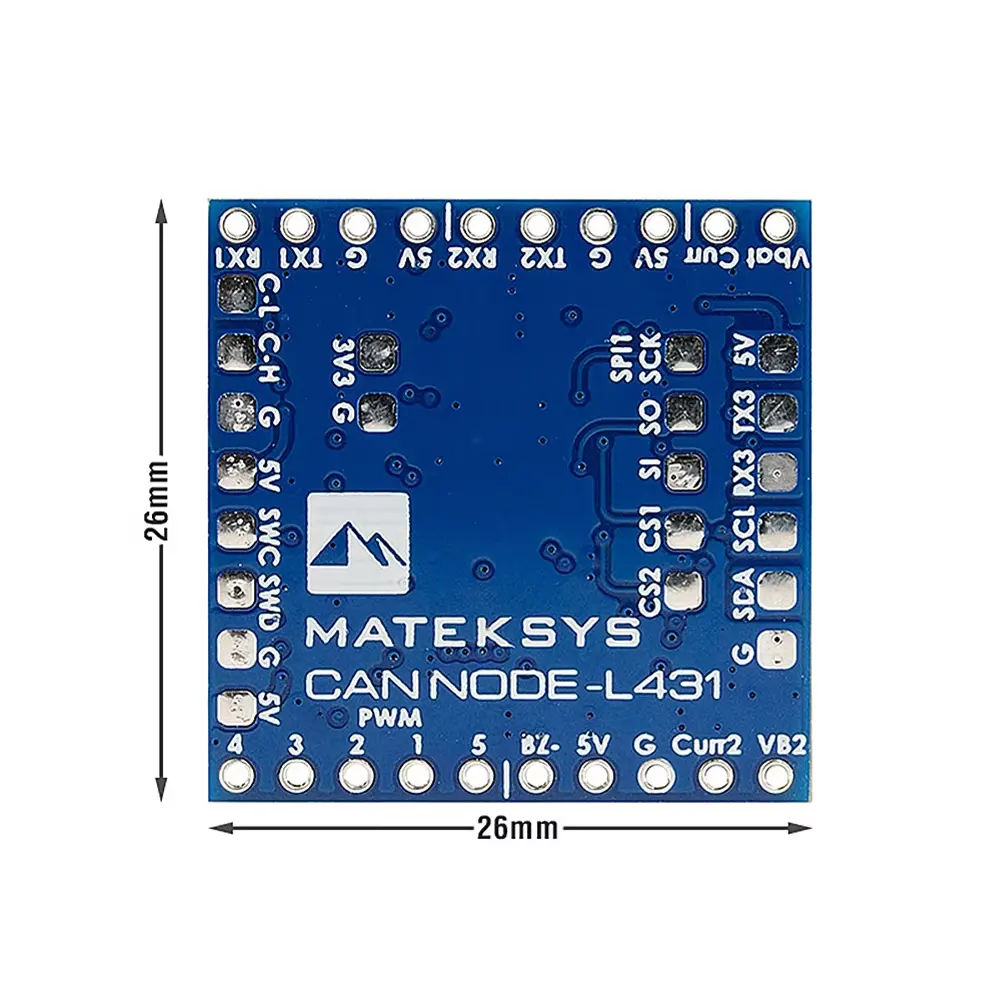

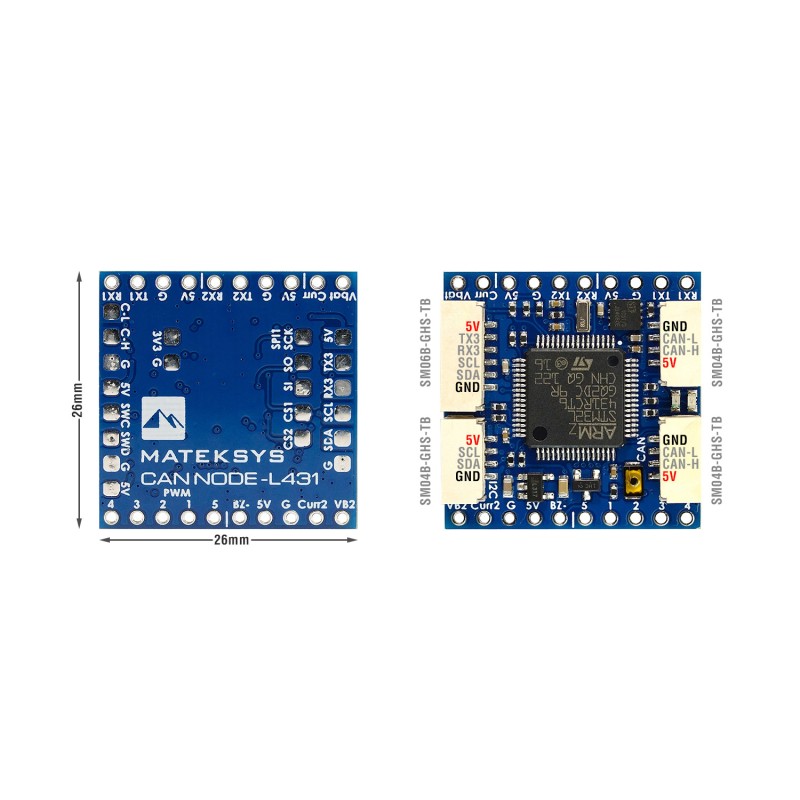

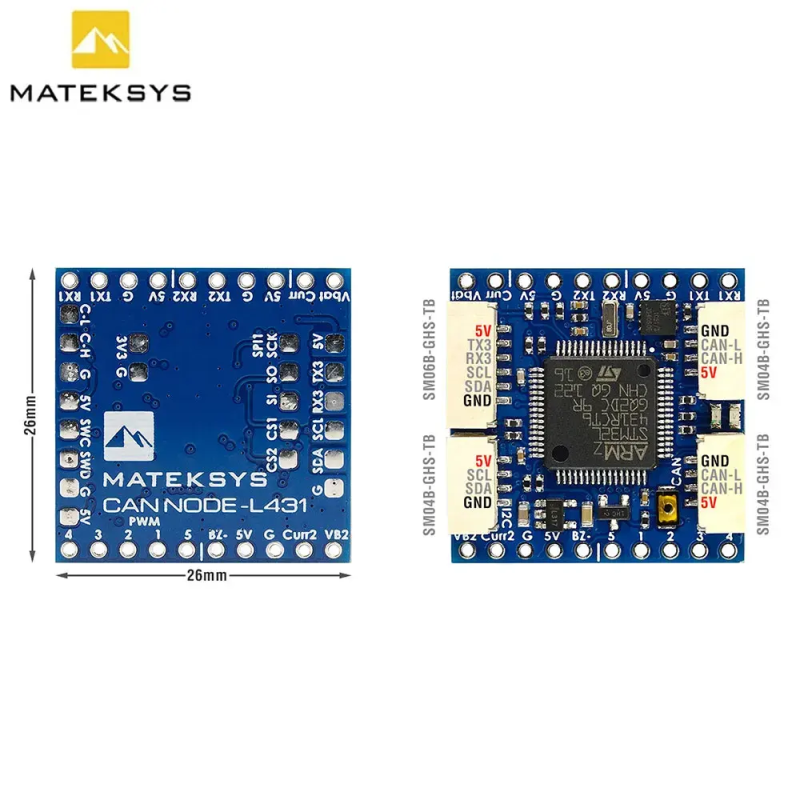

    • Board Size: 26mm*26mm*6mm. 3.7g
    • 3D file : CAN-L431_STEP.zip
  • Firmware
    • ArduPilot AP_Periph MatekL431-Periph, or MatekL431-Airspeed
    • Update via DroneCAN GUI Tool

Packing

  • 1x CAN-L431 board
  • 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
  • 1x JST-GH-6P to JST-GH-6P 20cm silicon wire
