Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
Specifications
Age Range :
14 Years & up, other
Type :
Charging Components, RC Quadcopter Parts
MCU :
100MHz STM32F411CEU6
Use :
Vehicles & Remote Control Toys
Brand Name :
Matek
Weight :
10g
Model Number :
F411-WTE
MOQ :
1 piece
Mounting :
22 x 22mm
Motor Type :
Charging Components, Brushless
IMU :
BMI270 (SPI)
Price :
$32.88-38.88 / piece
Gender :
Unisex
Place of Origin :
China, Guangdong China
Material :
Metal
Baro :
SPL06-001 (I2C)
Dimensions :
31 x 26 x 16.5 mm
Description
Product Features
Place of OriginGuangdong, China
BaroSPL06-001 (I2C)
Age Range14 Years & up
UseDolls & Hobby
Dimensions31 x 26 x 16.5 mm
GenderUnisex
Model NumberF411-WTE
Weight10g
Brand NameMatek
IMUBMI270 (SPI)
Mounting22 x 22mm
TypeCharging Components
MCU100MHz STM32F411CEU6
Matek F411-WTE FLIGHT CONTROLLER F411 WTE OSD 2~6S INAV Barometer for Racing Drone FLYWING Airplane

Matek F411-WTE FLIGHT CONTROLLER F411 WTE OSD 2~6S INAV Barometer For Racing Drone FLYWING Airplane

Features

Matek F411-WTE FLIGHT CONTROLLER F411 WTE OSD 2~6S INAV Barometer For Racing Drone FLYWING Airplane

Product Details

FC Specifications
- MCU: 100MHz STM32F411CEU6
- IMU: BMI270 (SPI)
- Baro: SPL06-001 (I2C)
- OSD: AT7456E (SPI)
- Blackbox: No
- 2x Uarts
- 2x Full Softserial
- 6x PWM outputs (2x Motors, 4x Servos)
- 1x I2C
- 4x ADC (VBAT, Current, RSSI, AirSpeed)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- Built in inverter on UART2-RX for SBUS input
- Switchable Dual Camera Inputs
- Vbat power ON/OFF switchable for VTX and camera
- PPM receiver: not supported
Power
- 6~30V DC IN (2~6S LiPo)
- 132A Current Sense (Scale 250)
- PDB/Current sense resistor: 90A continuous, 132A burst.
- BEC 5V 1.5A for FC & Peripherals
- BEC Vx 5A for servos, 5V/ 6V option
- Vbat for VTX and camera (ON/OFF switchable)
- LDO 3.3V 200mA
- Battery Voltage Sensor: 1k:10k
FC Firmware
- INAV Target: MATEKF411TE ( INAV4.1 or newer)
Physical

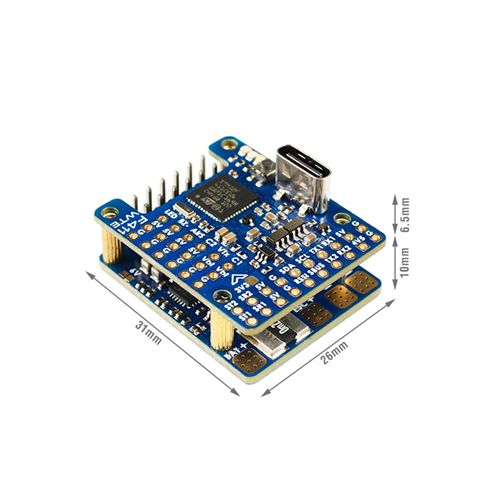

- Dimensions: 31 x 26 x 16.5 mm
- Mounting: 22 x 22mm, 2mm
- Weight: 10g

Item Packing

1x FC F411-WTE
Dupont 2.54 pins (Board is shipped unsoldered)

Detailed Images

Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
Matek F411-Wte Flight Controller F Wte Osd 2~6s Inav Barometer for Racing Drone Flywing Airplane
