Specifications
private mold :
Yes
Power consumption: :
40mA
Input voltage range: :
4.5~5.5V @5V pad/pin
Price :
$9-12.80 / piece
Operating Temperatures: :
-20~80 .C
Place of Origin :
China, GuangdongChina
Material :
PVC
Product name :
MATEK CAN-L431 AP_Periph CAN
compatible brand :
Others
Brand Name :
MATEK
MCU: :
STM32L431xC 256KB Flash
MOQ :
10 pieces
Description
Product Features
Operating Temperatures:-20~80 .C
Power consumption:40mA
brand nameMATEK
Product nameMATEK CAN-L431 AP_Periph CAN
Input voltage range:4.5~5.5V @5V pad/pin
private moldYes
MaterialPVC
place of originGuangdong,China
MCU:STM32L431xC, 256KB Flash
Original MATEK CAN-L431 AP_Periph CAN Node DroneCAN L431 26X26mm for ArduPilot GNSS Barometer Airspeed Sensor GPIO

Original MATEK CAN-L431 AP_Periph CAN Node DroneCAN L431 26X26mm for ArduPilot GNSS Barometer Airspeed Sensor GPIO

Product Description

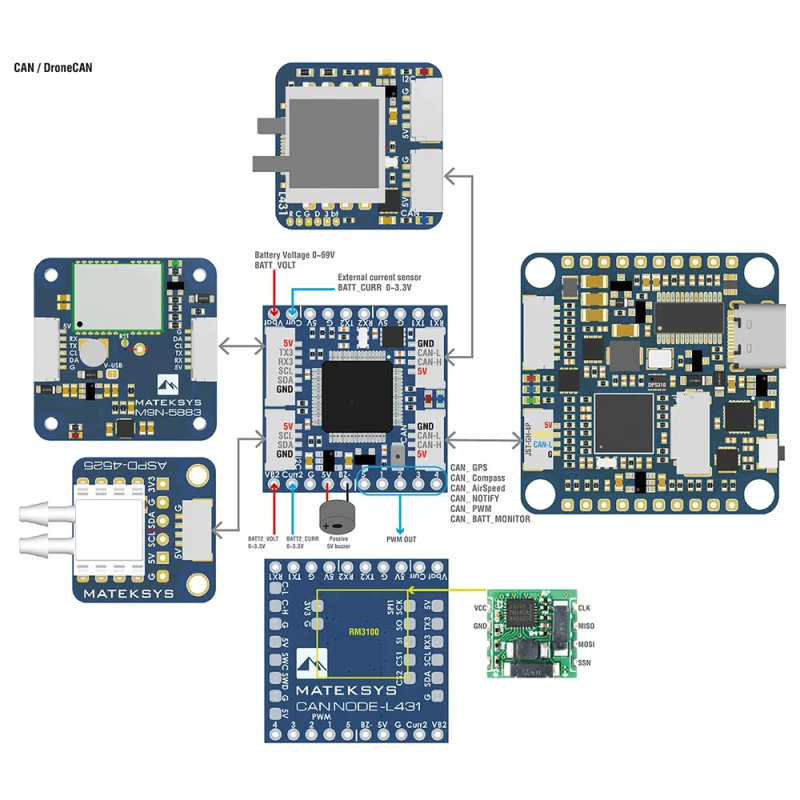

* CAN-L431 is an Adapter Node based on ArudPilot AP_Periph firmware.
* With this board, you can easily utilize the ArduPilot driver library to convert ArduPilot supported GNSS, Compass,
Barometer,Airspeed sensor, and GPIO based (PWM, Buzzer/LED notify) peripherals to DroneCAN bus peripherals.
Specifications
* MCU: STM32L431xC, 256KB Flash
* CAN transceiver data rates up to 5 Mbit/s in the CAN FD fast phase
* 1x CAN, DroneCAN Protocol (2x GH-4P connectors in parallel)
* 3x UARTs
* UART1, spare
* UART2, MSP default, DFU
* UART3, GPS default
* 1x I2C
* for peripheral Airspeed sensor
* for peripheral Barometer
* 1x SPI
* for peripheral RM3100
* 4x ADC
* BATT_VOLT, PIN 5
* BATT_CURR, PIN 6
* BATT2_VOLT, PIN 15
* BATT2_CURR, PIN 16
* 5x PWM outputs
* 1x GPIO with TIM16 for buzzer
* ST debug, SWCLK & SWDIO
* LED * Blue, Fast blinking, Booting
* Blue, Slow blinking, working
* Red, 3.3V indicator
* Input voltage range: 4.5~5.5V @5V pad/pin
* Power consumption: 40mA
* Operating Temperatures: -20~80 °C

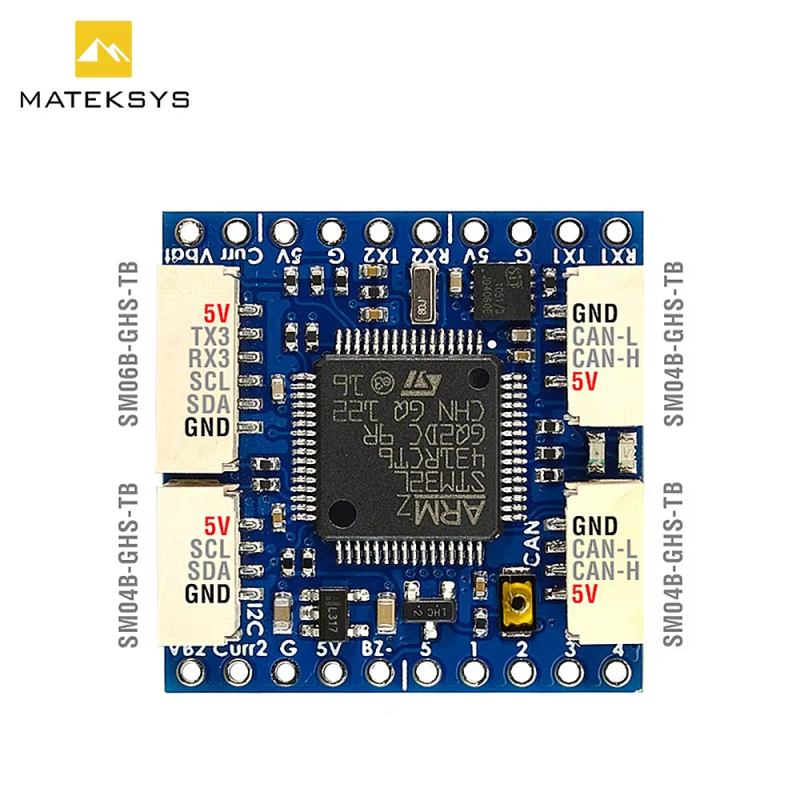

* Physical * 2x JST-GH-4P(SM04B-GHS-TB) for CAN
* 1x JST-GH-4P(SM04B-GHS-TB) for I2C
* 1x JST-GH-6P(SM06B-GHS-TB) for UART3 I2C

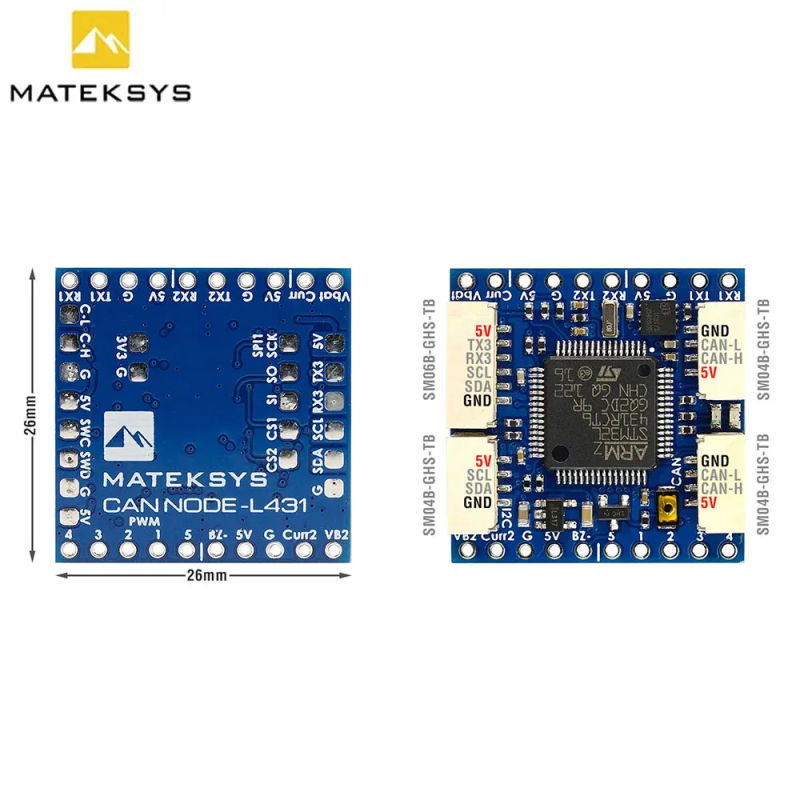

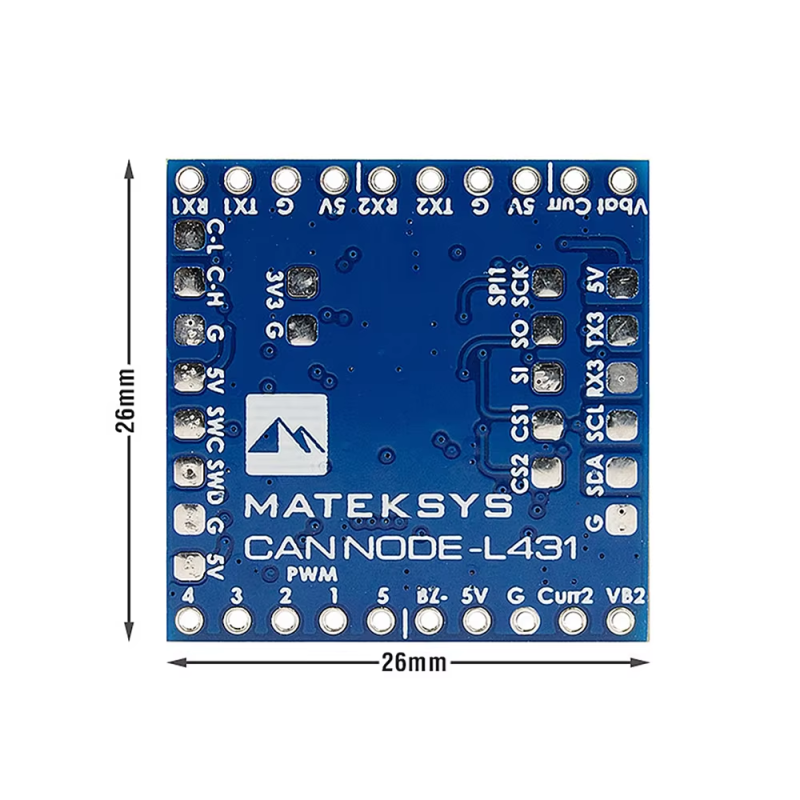

* Board Size: 26mm*26mm*6mm. 3.7g
* Firmware * ArduPilot AP_Periph MatekL431-Periph, or MatekL431-Airspeed
* Update via DroneCAN GUI Tool
Packing
* 1x CAN-L431 board
* 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
* 1x JST-GH-6P to JST-GH-6P 20cm silicon wire
Original Matek Can-L431 ap_periph Can Node Dronecan L 26xmm for Ardupilot Gnss Barometer Airspeed Sensor Gpio
Original Matek Can-L431 ap_periph Can Node Dronecan L 26xmm for Ardupilot Gnss Barometer Airspeed Sensor Gpio
Original Matek Can-L431 ap_periph Can Node Dronecan L 26xmm for Ardupilot Gnss Barometer Airspeed Sensor Gpio
Original Matek Can-L431 ap_periph Can Node Dronecan L 26xmm for Ardupilot Gnss Barometer Airspeed Sensor Gpio
Original Matek Can-L431 ap_periph Can Node Dronecan L 26xmm for Ardupilot Gnss Barometer Airspeed Sensor Gpio
Specification

Place of Origin
China
Brand Name
MATEK
Product name
MATEK CAN-L431 AP_Periph CAN
MCU:
STM32L431xC, 256KB Flash
Input voltage range:
4.5~5.5V @ 5V pad/pin
Power consumption:
40mA
Operating Temperatures:
-20~80 °C
