Specifications
Price :
$50.90-51.80 / piece
compatible brand :
Autel
Brand Name :
Mateksy
Material :
ABS
MOQ :
1 piece
Place of Origin :
China, Guangdong China
private mold :
Yes
Description
Product Features
brand name Mateksy
private mold Yes
Single package size 5*5*5cmm
Material ABS
place of origin Guangdong, China
Matek Mateksys F405-WING-V2 Baro OSD Blackbox ArduPilot INAV RC Fixed Wing Drone Accessories for Airplane Model
Matek Mateksys F405-WING-V2 Baro OSD Blackbox ArduPilot INAV RC Fixed Wing Drone Accessories For Airplane Model
Specifications

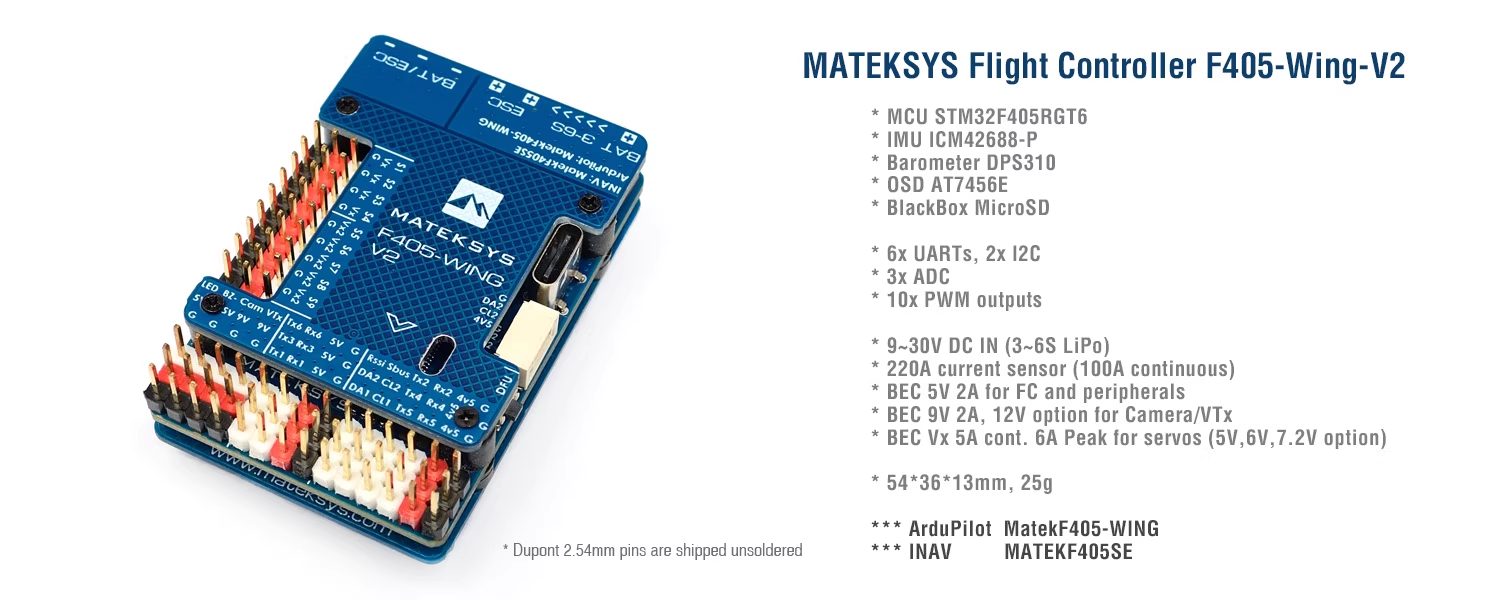

Matek Flight Controller F405-WING-V2
STM32F405RGT6, ICM42688P, DPS310, OSD, 6xUARTs, 10x PWM, 2xI2C, 3xBEC
FC Specifications
* MCU: STM32F405RGT6, 168MHz , 1MB Flash
* IMU: ICM42688-P
* Baro: DPS310
* OSD: AT7456E
* Blackbox: MicroSD card slot
* 6x UARTs, 1x Softserial_Tx option(INAV)
* 10x PWM outputs
* 2x I2C
* 3x ADC (VBAT, Current, RSSI)
* Built in inverter for SBUS input
* USB Type-C(USB2.0) FC Firmware
* ArduPilot: MatekF405-Wing (ArduPlane 4.4 or newer)
* INAV: MATEKF405SE (INAV 6.0 or newer) PDB
* Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
* Current Senor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7A/V)
* Sense resistor: 100A continuous, 220A peak
* Battery Voltage divider 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot) BEC 5V output
* Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
* Continuous current: 2 Amps BEC 9V /12V output
* Designed for Video Transmitter, Camera, Gimbal ect.
* Continuous current: 2 Amps
* 12V option with Jumper pad
* for stable 9V/12V output, input voltage should > output voltage 1V BEC Vx output
* Designed for Servos
* Voltage adjustable, 5V Default, 6V or 7.2V options
* Continuous current: 5 Amps, 6A Peak
* for stable Vx output, input voltage should > Vx voltage 1V BEC 3.3V output
* Designed for external 3.3V peripherals
* Linear Regulator
* Continuous current: 200mA Physical
* Mounting: 30.5 x 30.5mm, 4mm with Grommets 3mm

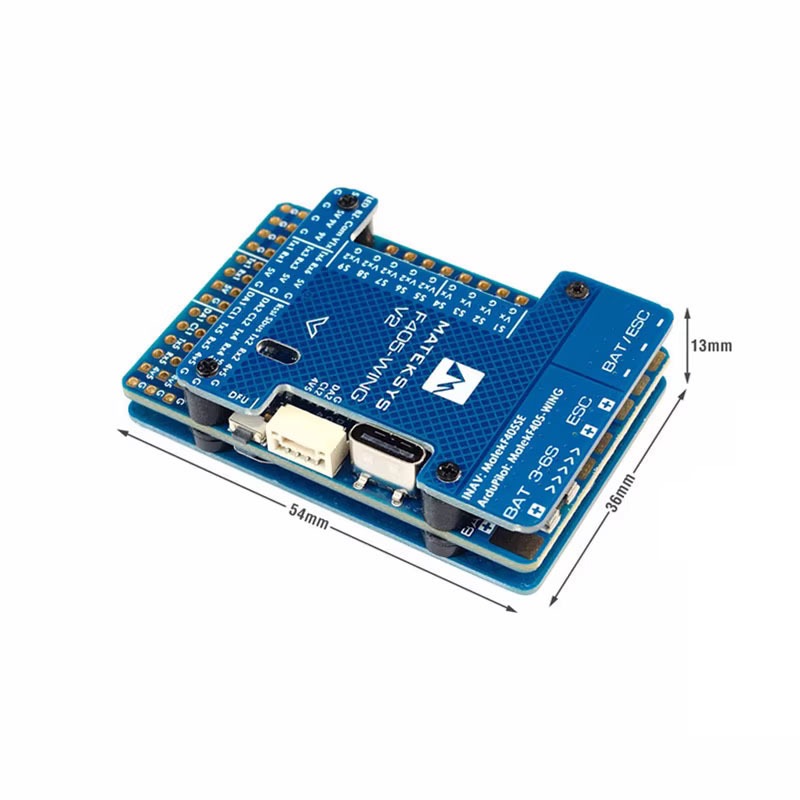

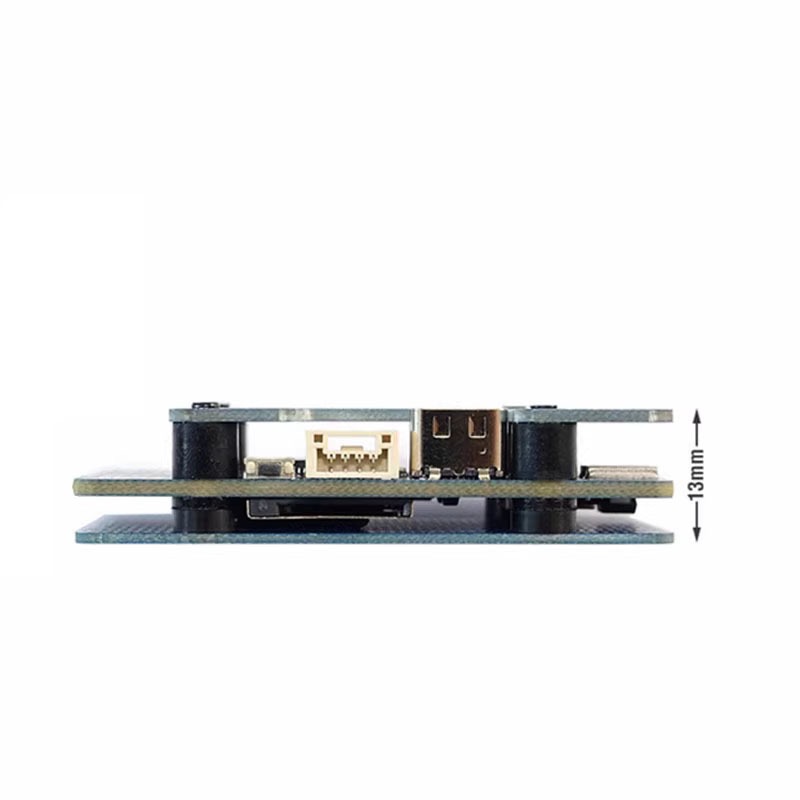

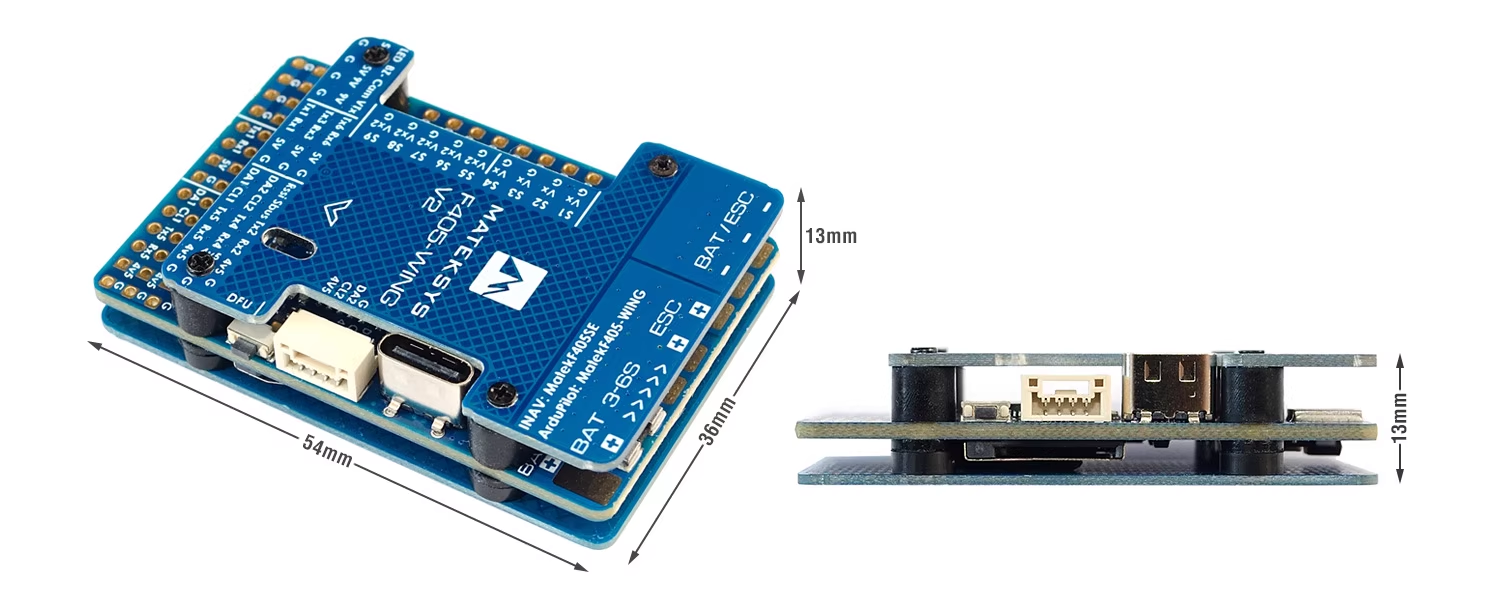

* Dimensions: 54 x 36 x 13 mm
* Weight: 25g
Including
* 1x F405-Wing-V2
* 1x 20cm JST-GH-4P to JST-GH-4P cable for I2C port
* Dupont 2.54 pins (Board is shipped unsoldered)
Matek Mateksys F405-WING-V2 Baro OSD Blackbox ArduPilot INAV RC Fixed Wing Drone Accessories For Airplane Model
