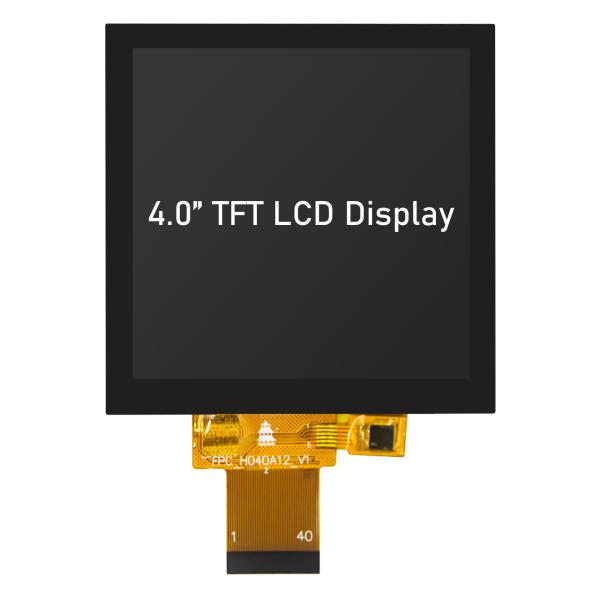

Square IPS TFT LCD Display 4 Inch Capacitive Touch TFT LCD Display

Specifications

Brand Name :

HOTHMI

Model Number :

TFT-H040A12DHIIL3C40

Place of Origin :

dongguan,China

MOQ :

Payment Terms :

L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability :

99999

Delivery Time :

25 days

Product Type :

Square LCD Display

Backlight brightness :

350cd/m2

Connection method PIN number :

FPC-40PIN

Viewport Window Size :

4.0 inch

Special Instructions :

Adapt to 86 Box Solution

Driver IC Model :

ILI9488

Description

4 Inch 320x320 Dots IPS Square TFT LCD Display / Panel With CTP TFT-H040A12DHIIL3C40

Product parameters

Display Content - 320x320
Dimensions (mm) - 74.66x76.54x2.02
Display Size - 4.0 inch
Effective Size (mm) - 71.14x69.82
Product Application - Instrumentation
Perspective - Full Perspective
Interface - SPI+MCU
Working temperature - (-20~70℃)
Supply Voltage - 2.8v

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H040A12DHIIL3C40
Diagonal size	4.0”	Inch
Resolution	320x320	Dot
Dimensions	83.9x83.9x3.21	mm
Active area (AA)	71.14x69.82	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View(U80/D80/R80/L80)
Aspect ratio	3:2
Backlight type	LED white
TFT driver IC	ILI9488 or compatible IC
Brightness	350	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃

Describe

H040A12DHIIL3C40 is a high brightness 4" square IPS TFT-LCD display module with projected capacitive touch panel (CTP); made of resolution 320 x 320 pixels. This module supports SPI+MCU interface, adopts IPS panel, has left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typical), contrast ratio 800: 1 (typical value of wider viewing angle), brightness 350 nits (typical), anti-glare panel, 1:1 aspect ratio. The display screen is suitable for 86 box installation, suitable for central air conditioning display panel, smart machine home appliance control, industrial control, etc.

The H040A12DHIIL3C40 square TFT liquid crystal display module is an integrated driver IC ILI9488 on the module. The interface power supply voltage range is 2.5V to 3.6V, and the typical value is 2.8V. The H040A12 model can operate from -20°C to +70°C; its storage temperature range is -30°C to +80°C.

Search keyword: tft 4", 4 tft lcd, 4" tft lcd, 4 inch tft lcd, tft lcd 4, 4 tft display, 4" tft display, 4 inch tft display, tft display 4"

Square IPS TFT LCD Display 4 Inch Capacitive Touch TFT LCD Display

TFT-H040A12DHIIL3C4.pdf
