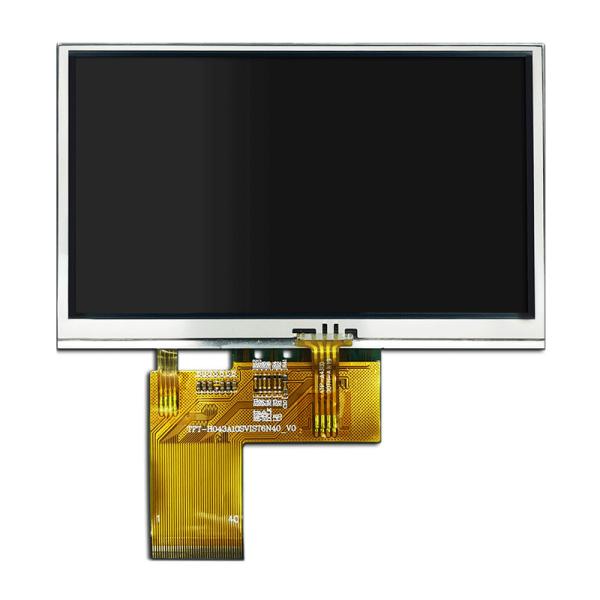

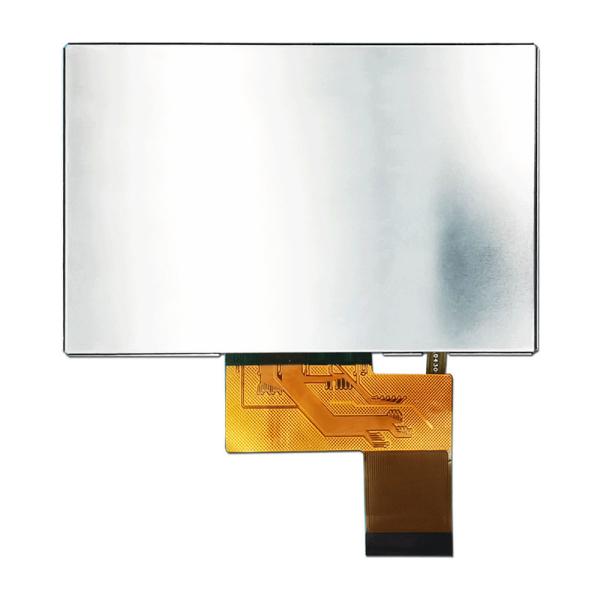

4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller
4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller
4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller
4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller
4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller
4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller
4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller
4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller
4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller
4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H043A10SVIST5R40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product Type :
TFT Landscape
Dimensions (mm) :
105.5X67.2X4.55
Effective Size (mm) :
95.04X53.85
Viewport Window Size :
4.3"
Working temperature :
-40~80℃
Connection method PIN number :
40PIN
Description

4.3 Inch Standard Resistive TFT Display/800x480 Dots/TFT-H043A10SVIST5R40

Product parameters


Display Content - 800X480
Display Size - 4.3"
Product application - industrial control equipment, vehicle instrumentation, ultra-wide temperature display
Perspective - Full Perspective
Backlight brightness - 500~850cd/m2
Interface - TTL18bit/24bit
Supply Voltage - 3.3V
Driver IC Model - ST7262

TFT-H043A10SVIST5R40 | 4.3" Standard LCD | 800x480 Pixels | Resistive Touchscreen

This 800x480 resolution LCD TFT is a standard display with 8-bit/16-bit Parallel interface, offering 16.7M colors and a FULL optimal view. This Liquid Crystal Display has a built-in ST7262 controller, FFC ZIF I/O connection, is RoHS compliant and has a 4-wire resistive touchscreen.

project Parameter Description unit
TFT series Standard TFT
Diagonal size 4.3” Inch
Resolution 800 × RGB × 480 (TFT) dots

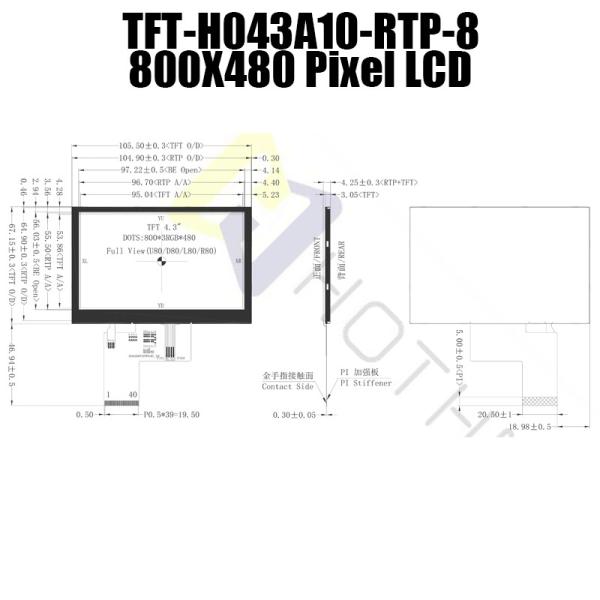

Dimensions 105.50x67.15x4.25 mm
Effective area (AA) 96.7x55.5 mm
LCD type Horizontal TFT
Display perspective 80/80/80/80 (IPS)
Aspect ratio 1.1:2
Backlight type LED, white
TFT driver IC ST7262
Touch panel Resistive touch screen
Surface Glossy
Brightness 500 cd/㎡
Operating temperature -40~+80 °C
Storage temperature -40~+80 °C

Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3, tft display 4.3"

4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller

4.3 Inch TFT LCD Display Module | Resistive Touchscreen With ST7262 Controller

TFT-H043A10SVIST5R40.pdf

TFT-H043A10SVIST8R40.pdf
