4.3 Inch 480x800 TFT Display For Industrial
4.3 Inch 480x800 TFT Display For Industrial
4.3 Inch 480x800 TFT Display For Industrial
4.3 Inch 480x800 TFT Display For Industrial
4.3 Inch 480x800 TFT Display For Industrial
4.3 Inch 480x800 TFT Display For Industrial
4.3 Inch 480x800 TFT Display For Industrial
4.3 Inch 480x800 TFT Display For Industrial
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H043A7WVIST5N40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product Type :
TFT Module
Display Content :
480x800 dots

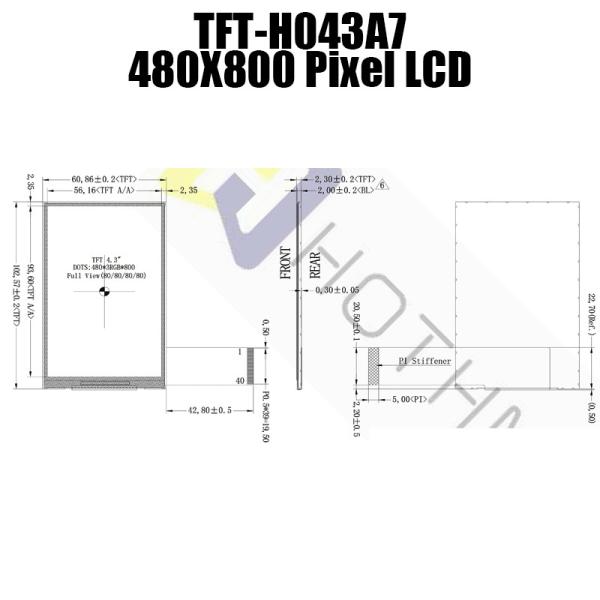

Dimensions (mm) :
60.86x102.57x2.5
Viewport Window Size :
4.3 inch
Effective Size (mm) :
56.16x93.6
Product Application :
Intelligent Information Collector Instrument
Description

4.3 Inch IPS SPI+RGB Interface TFT LCD Module 480x800 Resolution/TFT-H043A7WVIST5N40

Product parameters


Display Size - 4.3 inch
Perspective - Full Perspective
Backlight brightness - 500cd/m2
Connection method PIN number: FPC-40PIN
Interface mode: RGB
Working temperature: -20~70℃
Supply voltage: 3.3V
Driver chip model: ST7701S

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H043A7WVIST5N40
Diagonal size 4.3” Inch
Resolution 480x800 Dot
Dimensions 60.86X102.57X2.3 mm
Active area (AA) 56.16X93.6 mm
LCD type TFT LCD Display mm
Display viewing angle Full View(U80/D80/R80/L80)
Aspect ratio 2:3
Backlight type LED white
TFT driver IC ST7701S
Brightness 800 cd/m2
Operating temperature -20~60℃ ℃
Storage temperature -40~80℃ ℃

DESCRIPTION


TFT-H043A7WVIST5N40 is a 4.3 inch IPS TFT-LCD display module; made of resolution 480 x 800 pixels. H043A7 module supports SPI+RGB interface (2 lanes), it featured with IPS panel which is having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical), contrast ratio 720 (typical value), brightness 550 nits (typical value), Anti-Glare surface panel.

This 4.3 inch MIPI LCD display is portrait mode; it integrated driver IC ST7701S on module, interface supply voltage range 2.8V to 3.3V. This TFT module can be operating at temperatures from -20℃ to +60℃; its storage temperatures range from -30℃ to +80℃.

4.3 Inch 480x800 TFT Display For Industrial4.3 Inch 480x800 TFT Display For Industrial4.3 Inch 480x800 TFT Display For Industrial4.3 Inch 480x800 TFT Display For Industrial4.3 Inch 480x800 TFT Display For Industrial4.3 Inch 480x800 TFT Display For Industrial4.3 Inch 480x800 TFT Display For Industrial4.3 Inch 480x800 TFT Display For Industrial4.3 Inch 480x800 TFT Display For Industrial

4.3 Inch 480x800 TFT Display For Industrial

TFT-H043A7WVIST5N40.pdf
