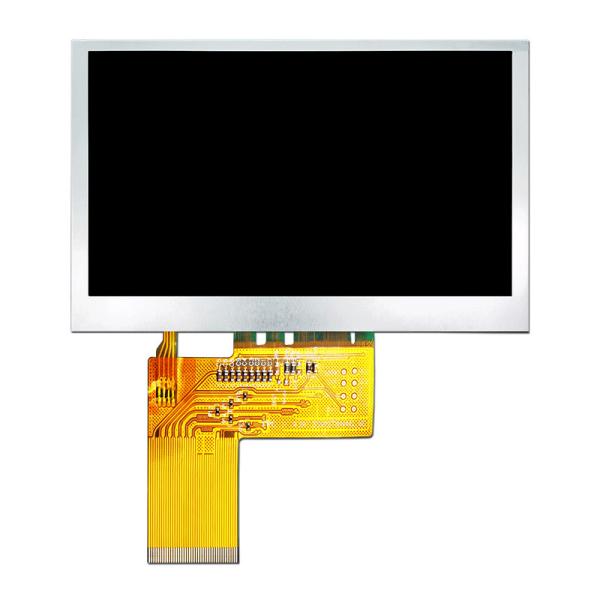

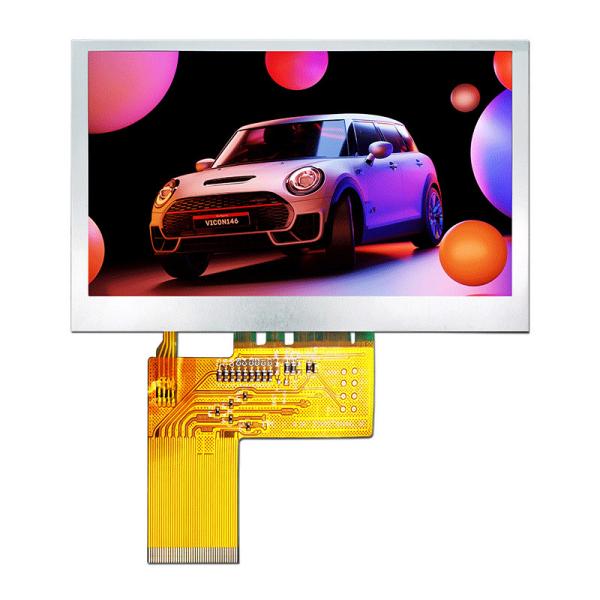

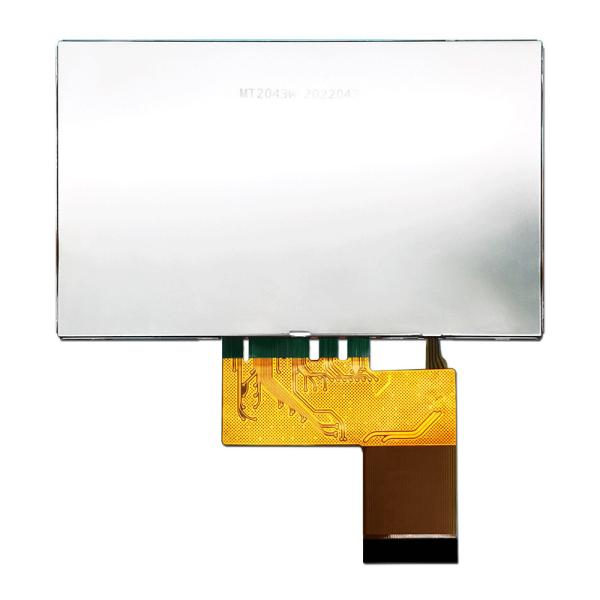

4.3 TFT LCD Display Module With LVDS Interface
4.3 TFT LCD Display Module With LVDS Interface
4.3 TFT LCD Display Module With LVDS Interface
4.3 TFT LCD Display Module With LVDS Interface
4.3 TFT LCD Display Module With LVDS Interface
4.3 TFT LCD Display Module With LVDS Interface
4.3 TFT LCD Display Module With LVDS Interface
4.3 TFT LCD Display Module With LVDS Interface
Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H043A13SVIST6N40
Place of Origin :
dongguan,China
MOQ :
2
Payment Terms :
L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability :
99999
Delivery Time :
25 days
Product Type :
TFT LCD Landscape
Display content :
800x480 resolution
Dimensions (mm) :
105.5x67.2x4.55
Field of View Window Size :
4.3 inches
Effective Size (mm) :
95.04x53.856
Product Applications :
Monitors, Smart Devices, LVDS Displays
Driver IC Model :
ST7262
Supply Voltage :
3.3V
Description

4.3-Inch Sunlight-Readable LVDS TFT Display/800x480 Pixels/TFT-H043A13SVIST6N40

Product parameters
Display Size - 4.3 inches
Perspective - Full Perspective
Backlight brightness - 600~1000cd/m2
Connection method PIN number - FPC-40PIN
Interface method - LVDS
Special Instructions - LVDS 3L/4L
Working temperature - -20~70℃

parameter Parameter Description unit
TFT LCD Standard TFT
Diagonal inches 4.3” Inch
resolution 800 × RGB × 480 (TFT) dots

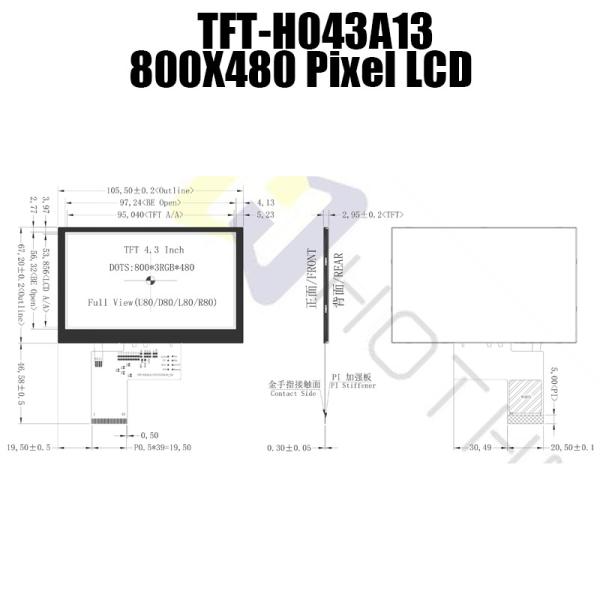

Dimensions 105.50x67.15x3.05 mm
Size (AA) area 95.04x53.856 mm
LCD specifications TFT, white, transmissive
Display perspective 80/80/80/80 (IPS)
aspect ratio 1.1:2
Backlight specifications LED, white
TFT driver chip ST7262
Touch glass type None
surface Glossy
Display brightness 1000 cd/㎡
Operating temperature -40~+80 °C
Storage temperature -40~+80 °C

Search keyword: tft 4.3, tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3, tft display 4.3"

4.34.34.34.34.34.34.34.34.3
4.3

TFT-H043A13SVIST6N40.pdf
