Specifications
Brand Name :
HOTHMI
Model Number :
TFT-H043A12SVILT4C40
Place of Origin :
dongguan,China
Product Type :
TFT Landscape
Dimensions (mm) :
105.5x67.2x2.95
Viewport Window Size :
4.3"
Product Application :
Instrumentation
Backlight type or brightness :
400cd/m2
Special Instructions :
with CTP
Description

4.3 Inch Projected Capacitive Touch Screen Module/800x480 Dots/TFT-H043A12SVILT4C40

Product parameters


Display Content - 800x480
Display Size - 4.3"
Effective size (mm) - 95.040x53.856
Perspective - Full Perspective
Connection method PIN number - FPC-40PIN
Interface - MCU 8/16 Bit
Operating temperature - (-20~70℃)
Supply Voltage - 3.3V
Driver IC Model - ST7262

ITEM PARAMETER DESCRIPTION UNIT
TFT series TFT-H043A12SVILT4C40
Diagonal size 4.3” Inch
Resolution 800x480 Dot

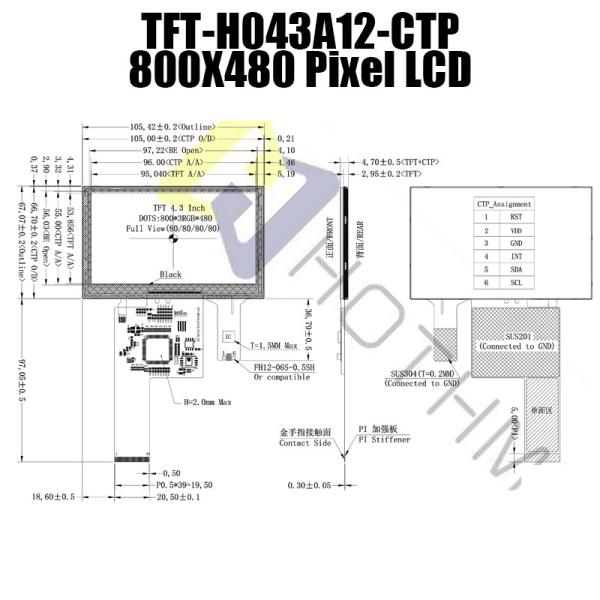

Dimensions 105.42x67.07x4.7 mm
Active area (AA) 95.04x53.856 mm
LCD type TFT LCD Display mm
Display viewing angle Full View(U80/D80/R80/L80)
Aspect ratio 3:2
Backlight type LED white

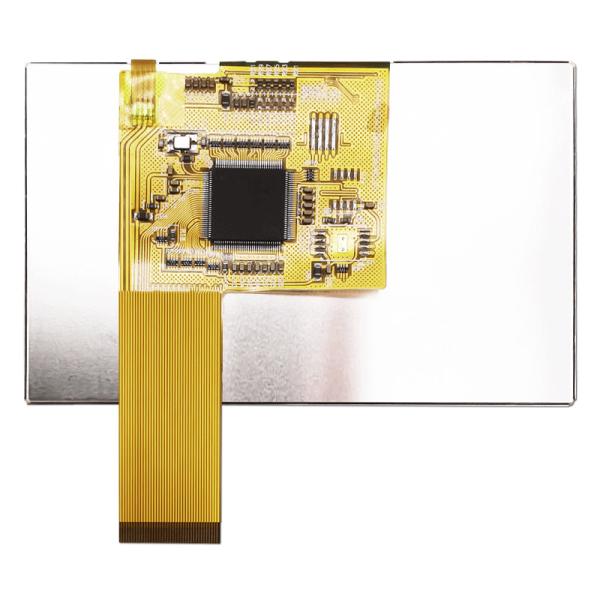

TFT driver IC ST7262+HT7381(TFT),GT911(CTP)
Brightness 400 cd/m2
Operating temperature -30~80℃ ℃
Storage temperature -30~85℃ ℃

Describe

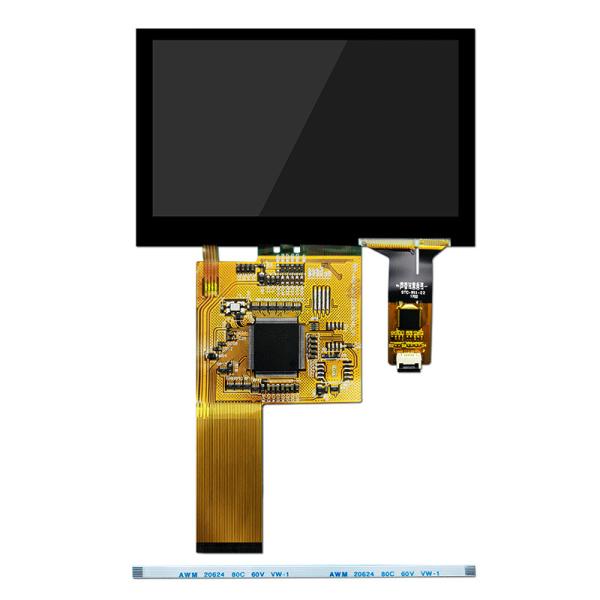

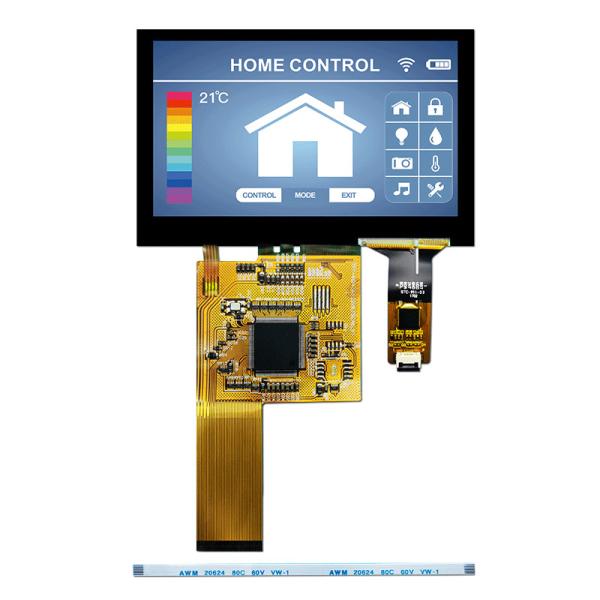

The H043A12SVILT4C40 TFT LCD module is a 4.3-inch diagonal, 800xRGBx480, full-color TFT module with a projected capacitive touchscreen on the module, with an external dimension of 105.42 × 67.07 mm and an AA dimension of 95.04 × 53.856 mm. This 4.3" TFT LCD with projected capacitive touch screen can be used in embedded systems, industrial equipment, security and handheld devices that need to display high quality and color images.

4.3 Inch TFT display | Capacitive Touchscreen MCU interface4.3 Inch TFT display | Capacitive Touchscreen MCU interface4.3 Inch TFT display | Capacitive Touchscreen MCU interface4.3 Inch TFT display | Capacitive Touchscreen MCU interface4.3 Inch TFT display | Capacitive Touchscreen MCU interface4.3 Inch TFT display | Capacitive Touchscreen MCU interface4.3 Inch TFT display | Capacitive Touchscreen MCU interface4.3 Inch TFT display | Capacitive Touchscreen MCU interface4.3 Inch TFT display | Capacitive Touchscreen MCU interface4.3 Inch TFT display | Capacitive Touchscreen MCU interface

4.3 Inch TFT display | Capacitive Touchscreen MCU interface

TFT-H043A12SVILT4C40.pdf
