Specifications
Brand Name :
MENSIONFLEX
Model Number :
MS P32
Certification :
CE RoHS ISO
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range (mm) :
14 - 87
Hose Size (Inch) :
2 1/2
Die Sets :
13
Color :
Blue
Max. Opening (mm) :
31
Crimping Force (T) :
650
System Pressure (Mpa) :
31.5
Power (kw) :
4
Size (mm) :
653*558*1354
Weight (kg) :
310
Description

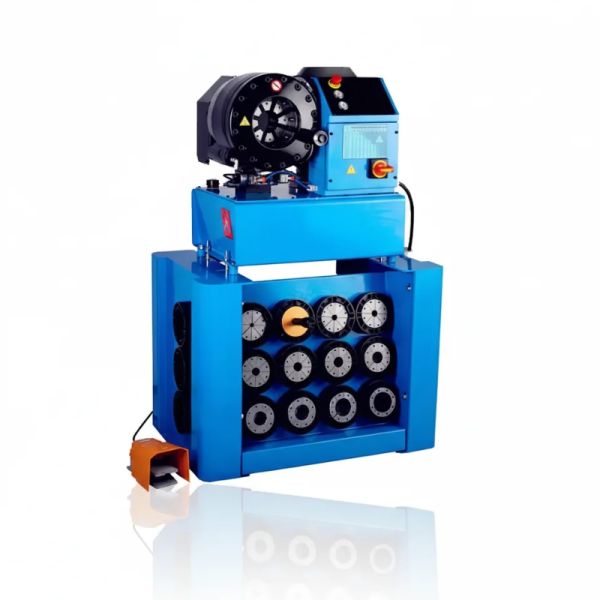

MS P32 Hydraulic Hose Crimping Machine
The MS P32 Hydraulic Hose Crimping Machine is engineered for high-performance hose pressing applications, designed to meet demanding industrial requirements with precision and reliability.
Rubber Product Making Machinery P32 Hydraulic Hose Crimping Machine for Hose Press
Product Overview
The MS P32 is engineered based on customer requirements for high-level series hose crimpers. It comes with 13 standard die sets and is suitable for hydraulic high-pressure, high-tensile hose pressing from 1/4 inch to 2.5 inches. This mid-range power machine offers a compact design that optimizes workspace efficiency.
Delivering 6500 kN crimping force in a highly compact, ergonomic design, the MS P32 is ideally suited for single-piece production in machine shops and repair workshops. As a table-top machine, it can be mounted on a QC Tool Base, with storage capacity for up to 16 die sets for operator convenience.
Key Features & Advantages
  • Solenoid Valve by Rexroth, Germany
  • Stable electric motor from Siemens, Germany
  • Chrome 40 Steel Structure Material for The Hydraulic Cylinder
  • Cr12Mov Steel for Die Sets with High Hardness
  • Electrical Board & Switch By Eaton, Ireland
  • High Stable Hydraulic Pump from Italy
  • Oil Seal with Good Wear Resistance
  • Finn Power Same Crimping Dial with High Accuracy
  • Foot Pedal Offers Convenient Operation
  • Die Sets with Quick Change to Improve Efficiency
  • Safe Design with International CE Quality Certification
  • Simple Structure with Minimal Failure Points
  • Increased Work Efficiency and Reduced Operational Costs
  • Supports Modernized Management Practices
Technical Specifications
Model MS P32 Hydraulic Hose Crimping Machine
Crimping Range (mm) 14 - 87
Hose ID (Inch) 2 1/2
Industrial Hose (Inch) 3
Max Opening (mm) 31
Crimping Force (kN) 6500
Crimping Force (Tonage) 650
Die Type P32
Die Sets 13
System Pressure (Mpa) 31.5
Control MS
Power (KW) 4
Voltage Single Phase or Three Phase
Voltage (V) 220 or 380
Length (mm) 653
Width (mm) 558
Height (mm) 1354
Weight (KG) 312
Additional Notes:
1) Crimping range can be increased with special dies.
2) Maximum opening is the total die travel. Add this value to the D size of the die sets for the crimping diameter of the dies used.
3) 12V or 24V battery power available.
4) UC control system is available.
Die Sets Specifications
Die No. Crimping Range (mm) D (mm) Length (mm)
6 *6 - 8655
8 *8 - 10855
10 *10 - 121055
12 *12 - 141255
1414 - 161455
1616 - 191655
1919 - 221955
2222 - 262270
2626 - 302670
3030 - 343070
3434 - 393475
3939 - 453975
4545 - 514590
5151 - 575190
5757 - 6357100
6363 - 6963110
6969 - 7569110
74 *74 - 8074110
78 *78 - 8778110
Note: * indicates non-standard die sets. Customized die sets with special diameter, shape, and length are available.
Main Spare Parts
Rubber Product Making Machinery P32 Hydraulic Hose Crimping Machine for Hose Press
Rexroth Solenoid Valve
Rubber Product Making Machinery P32 Hydraulic Hose Crimping Machine for Hose Press
Eaton Switch
Rubber Product Making Machinery P32 Hydraulic Hose Crimping Machine for Hose Press
Die Sets with Quick Change
Rubber Product Making Machinery P32 Hydraulic Hose Crimping Machine for Hose Press
Dies Holder
Rubber Product Making Machinery P32 Hydraulic Hose Crimping Machine for Hose Press
Seal Kits
Rubber Product Making Machinery P32 Hydraulic Hose Crimping Machine for Hose Press
Hydraulic Pump
Rubber Product Making Machinery P32 Hydraulic Hose Crimping Machine for Hose Press
Micrometer
Rubber Product Making Machinery P32 Hydraulic Hose Crimping Machine for Hose Press
Foot Pedal
After-Sales Service
  • 3 years warranty for whole machine
  • 7 * 24 hours online support
  • Specific and professional after-sales team
  • Spare parts readily available
