Specifications
Brand Name :
MENSION
Model Number :
MS-S102
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 187mm
Hose Size :
1/4 - 4inch
Die Sets :
16+1
Color :
Blue
Max. Opening :
45mm
Crimping Force :
980T
System Pressure :
31.5Mpa
Power :
7.5KW
Size :
850*530*980mm
Weight :
510Kg
Description

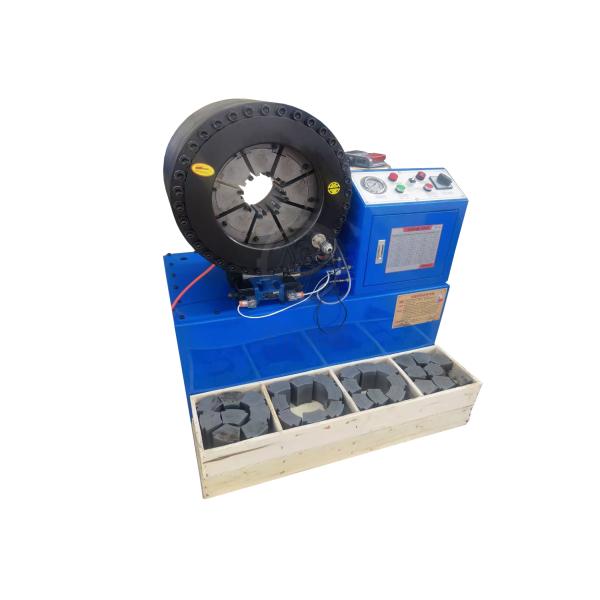

MS-S102 Hydraulic Hose Crimping Machine
102mm Hydraulic Hose Swaging Machine designed for industrial large pipe pressing applications
Product Overview
The MS-S102 hose crimper is specifically engineered for large diameter hydraulic hose applications. This machine is capable of pressing high pressure rubber hose from 1/4 inch to 4 inch (102mm) inner diameter, making it ideal for industrial-scale operations.
Main Features
  • Automatic crimping for high efficiency operation
  • Wide hose swage range for versatile applications
  • Compact structure for space-efficient installation
Technical Specifications
Model MS-S102 Hydraulic Hose Crimping Machine
Crimping Range 14 - 187 (mm)
Crimping Force 980 (T)
Hose Size 1/4 - 4 (inch)
Max. Opening 45 (mm)
Die Sets 16 + 1
Die Set Type S102
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 380 (V)
Motor Power 7.5 (KW)
Length 850 (mm)
Width 530 (mm)
Height 980 (mm)
Weight 510 (KG)
Hose Swaging Machine Pipe Press Machine Hyd Hose Crimping Tool 4 Inch Hydraulic Hose Crimping Machine
S102 Crimping Machine Die Sets
Die No. Crimping (mm) Length (mm)
6* 6.0 - 8.0 55
8* 8.0 - 10.0 55
10* 10.0 - 12.0 55
12 12.0 - 15.0 55
15 15.0 - 19.0 55
19 19.0 - 23.0 55
23 23.0 - 26.0 55
26 26.0 - 31.0 55
31 31.0 - 36.0 55
36 36.0 - 41.0 75
41 41.0 - 47.0 75
47 47.0 - 55.0 90
55 55.0 - 63.0 90
63 63.0 - 75.0 100
75 75.0 - 87.0 110
87 87.0 - 100.0 110
100 100.0 - 115.0 120
115 115.0 - 130.0 120
130 130.0 - 145.0 120
• "*" indicates non-standard die sets
• Customized die sets are available upon request
• Special voltage options available: 110V, 208V, 240V, 415V
