Specifications
Hose Size :
1/4 - 1inch
Max. Opening :
20mm
Crimping Force :
150T
Size :
400*320*300mm
Weight :
32Kg
Crimping Range :
14 - 45mm
Die Sets :
7
Color :
Blue
System Pressure :
31.5Mpa
Power :
Hand Pump
Product Name :
P16 Hose Crimper
Price :
Contact Us
Brand Name :
MENSION
Model Number :
MS-P16
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Description

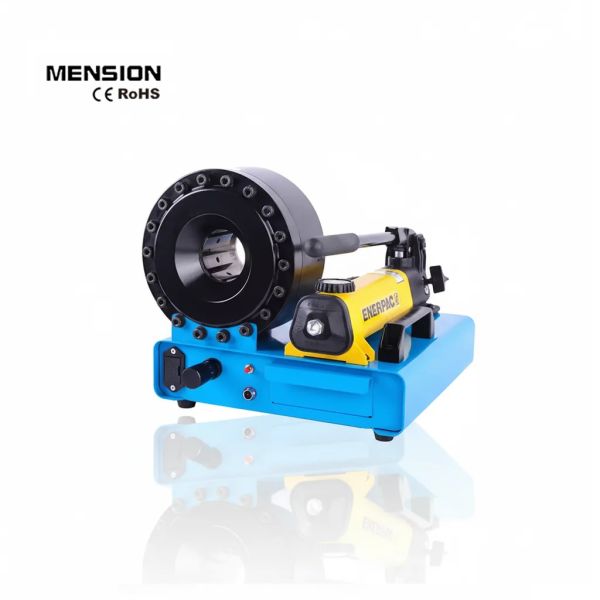

Gates GC16XD Portable Crimper Finn Power P16HP Manual Hydraulic Cable Crimper
Product Overview

The MS-P16 is a manual hydraulic hose crimping machine designed for portability and operation in locations without electricity supply. This compact crimper is ideal for field service and remote hose assembly applications.

Key Advantages
  • Famous "ENERPAC" hydraulic valve for high stability and reliability
  • Simple design for easy operation by novice users
  • Substantial crimping force capable of handling up to 4 steel wire hoses
  • High productivity with efficient operation
  • Low maintenance cost for extended service life
Technical Specifications
ModelP16 Hose Crimper Machine
Crimping Range14 - 47 (mm)
Crimping Force150 (T)
Hose Size1/4 - 1 (inch)
Max. Opening20 (mm)
Die Sets7
Die Set TypeP16
System Pressure31.5 (Mpa)
Accuracy0.01 (mm)
ControlMS
Standard VoltageManual Pump
Motor PowerManual Pump
Length400 (mm)
Width320 (mm)
Height300 (mm)
Weight32 (KG)
Gates GC16XD Portable Crimper Finn Power P16HP Manual Hydraulic Cable Crimper For Sale
P16 Crimper Die Sets
Die No.Crimping RangeLength
6*6 ... 8mm55
8*8 ... 10mm55
10*10 ... 12mm55
12*12 ... 14mm55
1414 ... 16mm55
1616 ... 19mm55
1919 ... 23mm55
2323 ... 27mm55
2727 ... 31mm55
3131 ... 35mm65
3535 ... 41mm65
Important Notes
  • " * " indicates non-standard die sets
  • Customized die sets are available upon request
  • Maximum opening refers to the stroke between die sets fully closed and fully opened
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
  • UC control system
  • Electric Crimper conversion
Detailed Product Features

Famous "ENERPAC" hydraulic oil pump

Gates GC16XD Portable Crimper Finn Power P16HP Manual Hydraulic Cable Crimper For Sale

Die sets for hydraulic hose assembly pressing

Gates GC16XD Portable Crimper Finn Power P16HP Manual Hydraulic Cable Crimper For Sale

Package with ply wood case, free for fumigation

Gates GC16XD Portable Crimper Finn Power P16HP Manual Hydraulic Cable Crimper For Sale
Crimping Samples
Gates GC16XD Portable Crimper Finn Power P16HP Manual Hydraulic Cable Crimper For Sale
