Specifications
Brand Name :
MENSION
Model Number :
MS-E150
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 127mm
Hose Size :
1/4 - 3inch
Die Sets :
15
Max. Opening :
35mm
Color :
Blue
Crimping Force :
780T
System Pressure :
31.5Mpa
Power :
3KW
Size :
650*550*650mm
Weight :
250Kg
Description

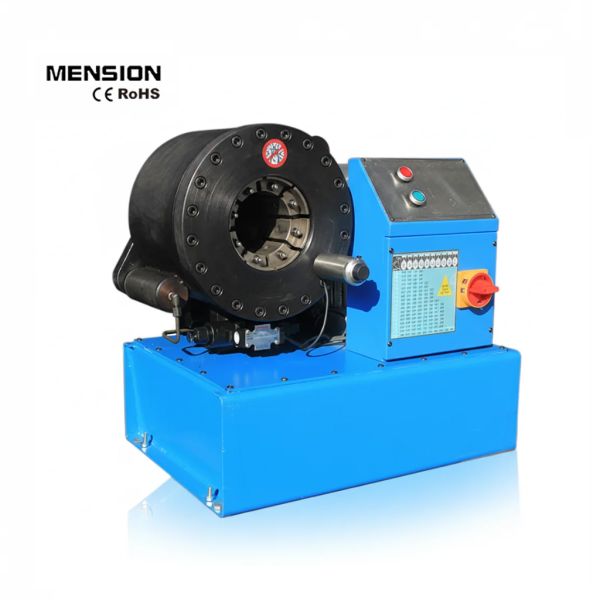

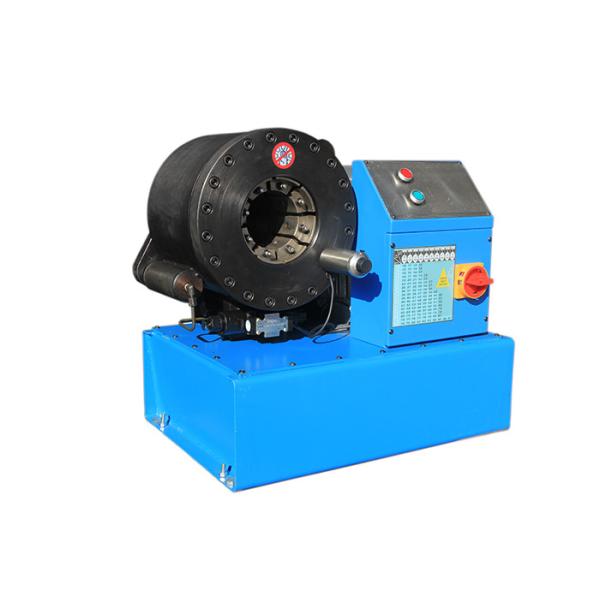

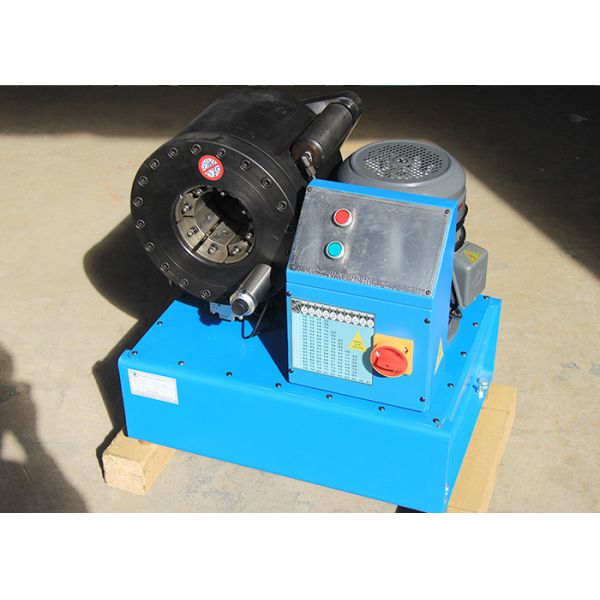

MS-E150 3 Inch Hydraulic Oil Hose Crimper
Professional Hydraulic Hose Crimping Machine
The MS-E150 is a heavy-duty 3-inch hose crimper machine delivering 780T crimping force, ideal for hose assembly single-piece production in machine shops and repair workshops. This hydraulic crimping machine features a specialized die set rack with storage for all 15 mold sets in the base for operator convenience.
Main Features
  • Forged one-piece crimping head design prevents oil leakage and maintains high system pressure
  • Compact structure with lightweight design among same-size competitors
  • Double conical master die provides superior crimping force and high accuracy
  • High hardness die sets ensure extended service life
Technical Specifications
Model MS-E150 Hose Crimper
Crimping Range 14 - 127 mm
Crimping Force 780 T
Hose Size 1/4 - 3 inch
Max. Opening 35 mm
Die Sets 15
Die Set Type 150
System Pressure 31.5 MPa
Accuracy 0.01 mm
Control MS
Standard Voltage 220V / 380V
Motor Power 3 KW
Length 650 mm
Width 550 mm
Height 650 mm
Weight 250 KG
3 Inches Hydraulic Oil Hose Crimper P32 Hydraulic Hose Crimping Machine Hose Press
150 Crimping Machine Die Sets
Die No. Crimping Range
6* 6 - 8mm
8* 8 - 10mm
10* 10 - 12mm
12* 12 - 14mm
14 14 - 16mm
16 16 - 19mm
19 19 - 22mm
22 22 - 26mm
26 26 - 30mm
30 30 - 34mm
34 34 - 39mm
39 39 - 45mm
45 45 - 51mm
51 51 - 57mm
57 57 - 63mm
63 63 - 69mm
69 69 - 74mm
74 74 - 78mm
78 78 - 87mm
Important Notes:
• "*" indicates non-standard die sets
• Customized die sets available with different sizes or shapes
• Special voltages including 110V, 208V, 240V, 415V available
• Foot pedal accessory available for hands-free operation
Double Conical Master Die
The E150 features the same master die structure as our FINN POWER hose crimping machines, ensuring reliable performance and precision.
3 Inches Hydraulic Oil Hose Crimper P32 Hydraulic Hose Crimping Machine Hose Press
User-Friendly Control Panel
Three-button operation panel designed for simplicity, making it suitable for both experienced operators and novices.
3 Inches Hydraulic Oil Hose Crimper P32 Hydraulic Hose Crimping Machine Hose Press
High Hardness Die Sets
E150 includes 15 die sets with exceptional hardness of 59-63HRC, providing extended service life and durability.
3 Inches Hydraulic Oil Hose Crimper P32 Hydraulic Hose Crimping Machine Hose Press
Application Samples
The MS-E150 is widely used for high-pressure hydraulic oil hose assembly crimping, cable and wire rope pressing, steel tube swaging, and automotive components including brake hose jointing.
3 Inches Hydraulic Oil Hose Crimper P32 Hydraulic Hose Crimping Machine Hose Press
Factory Workshop
3 Inches Hydraulic Oil Hose Crimper P32 Hydraulic Hose Crimping Machine Hose Press
