Specifications
Brand Name :
MENSION
Model Number :
MS-51L
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2inch
Die Sets :
10
Color :
Blue
Max. Opening :
30mm
Crimping Force :
500T
System Pressure :
31.5Mpa
Power :
3KW
Size :
800*640*1300mm
Weight :
320Kg
Description

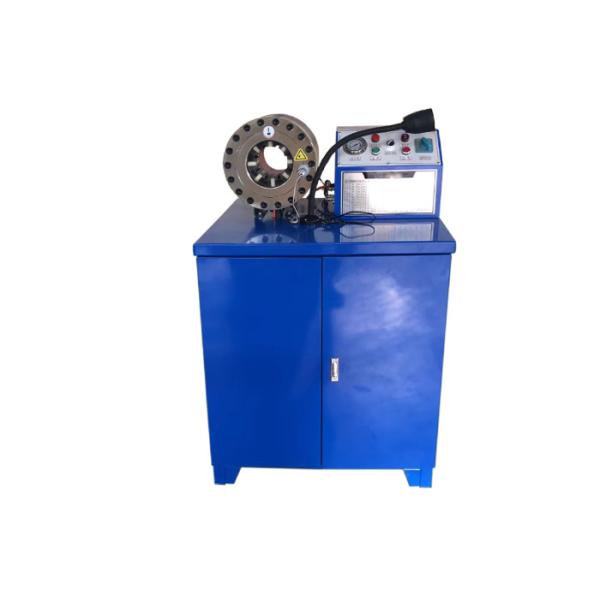

MS-51L Hydraulic Hose Crimping Machine
The MS-51L is a professional hydraulic hose crimper designed for high-pressure flexible hoses ranging from 1/4 inch to 2 inch, accommodating one to six stainless steel wire braided or spiraled hoses. This versatile machine offers three different operating modes to meet diverse customer requirements.
Main Advantages
  • High-capacity oil pump for efficiency and long service life
  • Multifunctional control panel for easy switching between automatic and semi-automatic modes
  • Integrated pressure display on the control panel
  • Standard foot pedal for hands-free operation
  • Built-in work light for enhanced visibility during crimping operations
Technical Specifications
Crimping Range 14 - 87 mm
Crimping Force 500 Tons
Hose Size 1/4 - 2 inch
Maximum Opening 30 mm
Die Sets 10
Die Set Type 51
System Pressure 31.5 MPa
Accuracy 0.05 mm
Standard Voltage 220V / 380V
Motor Power 3 KW
Dimensions (L*W*H) 800 * 640 * 1300 mm
Weight 320 KG
Transmission Line Pipe Crimping Tool Hydraulic Hose Crimping Machine Finn Power P32 Manual
51 Crimper Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 35
8* 8 - 10mm 35
10* 10 - 12mm 35
12* 12 - 15mm 35
15 15 - 19mm 60
19 19 - 23mm 60
23 23 - 26mm 60
26 26 - 31mm 60
31 31 - 36mm 70
36 36 - 41mm 70
41 41 - 47mm 70
47 47 - 55mm 80
55 55 - 63mm 80
63 63 - 69mm 80
69* 69 - 76mm 110
* Denotes non-standard die sets
Customized die sets are available
Special voltages (110V, 208V, 240V, 415V) are available
Optional Features
  • Quick Change Tool
  • UC Control System
Operational Features
Convenient switching between automatic or semi-automatic operating modes
Transmission Line Pipe Crimping Tool Hydraulic Hose Crimping Machine Finn Power P32 Manual
Foot pedal switch for hands-free operation with dual closing and opening functions
Transmission Line Pipe Crimping Tool Hydraulic Hose Crimping Machine Finn Power P32 Manual
High-quality copper wire aluminum motor with excellent heat dissipation
Transmission Line Pipe Crimping Tool Hydraulic Hose Crimping Machine Finn Power P32 Manual
Integrated die set storage box within the machine body
Transmission Line Pipe Crimping Tool Hydraulic Hose Crimping Machine Finn Power P32 Manual
Applications
