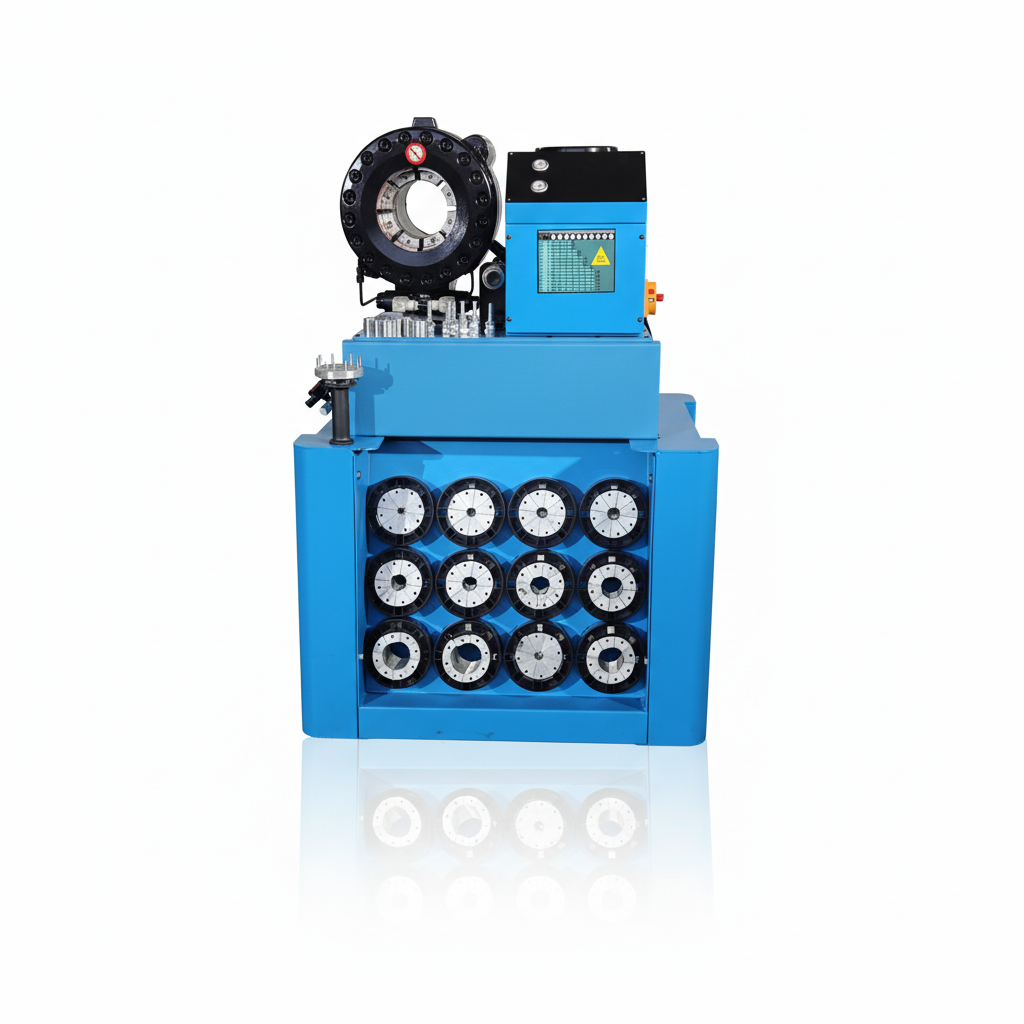

Factory P32 AC Hose Crimping Machine 2'' Hydraulic Hose Crimper Workshop
Factory P32 AC Hose Crimping Machine 2'' Hydraulic Hose Crimper Workshop
Specifications
Brand Name :
MENSION
Model Number :
P32
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2.5inch
Die Sets :
13
Color :
Blue
Max. Opening :
31mm
Crimping Force :
650T
Product Name :
P32 AC Hose Crimping Machine
Application :
Workshop
System Pressure :
31.5Mpa
Power :
3.75KW
Size :
650*550*1360mm
Weight :
310Kg
Description
P32 AC Hose Hydraulic Crimping Machine
The P32 hydraulic hose crimping machine is engineered for large-scale hydraulic hose assembly production. Featuring a quick-change die system that minimizes setup time, this machine significantly enhances working efficiency across industrial applications.
Key Features
  • High production efficiency for hose crimping operations
  • Quick and easy die change and installation process
  • Optional emergency stop device for enhanced safety
  • Numerical control hose crimper with precision operation
  • Crimps up to 2-inch 4-layer hydraulic hoses and 3-inch industrial hoses
  • Rapid crimping and retracted process cycles
  • Constructed with high-quality materials and renowned brand components
  • Delivers precision-formed crimping results
Technical Specifications
Model P32 AC Hose Crimping Machine
Crimping Range 14 - 87 mm
Crimping Force 650 Tons
Hose Size 1/4 - 2.5 inch
Maximum Opening 31 mm
Die Sets 13
Die Set Type P32
System Pressure 31.5 MPa
Accuracy 0.01 mm
Control System MS
Standard Voltage 220 V
Motor Power 3 KW
Dimensions (L x W x H) 650 x 550 x 1360 mm
Weight 310 kg
Factory P32 AC Hose Crimping Machine 2'' Hydraulic Hose Crimper Workshop
P32 Hose Crimper Die Sets
Die Number Crimping Range Length
6 * 6 ... 8 mm 55 mm
8 * 8 ... 10 mm 55 mm
10 * 10 ... 12 mm 55 mm
12 * 12 ... 14 mm 55 mm
14 14 ... 16 mm 55 mm
16 16 ... 19 mm 55 mm
19 19 ... 22 mm 55 mm
22 22 ... 26 mm 70 mm
26 26 ... 30 mm 70 mm
30 30 ... 34 mm 70 mm
34 34 ... 39 mm 75 mm
39 39 ... 45 mm 75 mm
45 45 ... 51 mm 90 mm
51 51 ... 57 mm 90 mm
57 57 ... 63 mm 100 mm
63 63 ... 69 mm 110 mm
69 69 ... 74 mm 110 mm
74 * 74 ... 78 mm 110 mm
78 * 78 ... 87 mm 110 mm
Note: * indicates non-standard die sets. Customized die sets are available upon request. Special voltage configurations including 110V, 208V, 240V, and 415V are available.
Optional Features
  • UC control system upgrade
  • Position limit device for enhanced precision
Crimping Applications
The P32 hydraulic hose crimping machine is designed for comprehensive crimping applications across various industrial hose types and sizes.
Factory P32 AC Hose Crimping Machine 2'' Hydraulic Hose Crimper Workshop Factory P32 AC Hose Crimping Machine 2'' Hydraulic Hose Crimper Workshop
