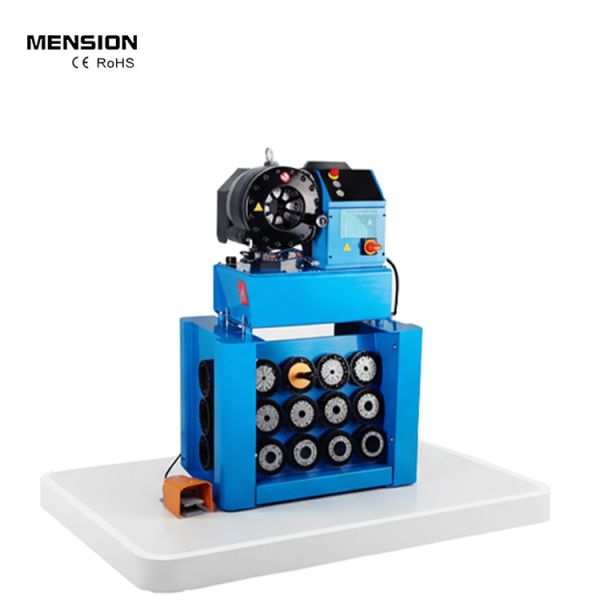

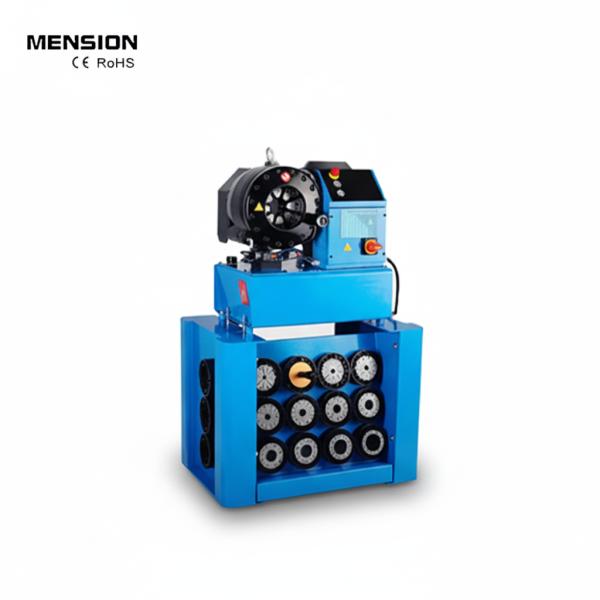

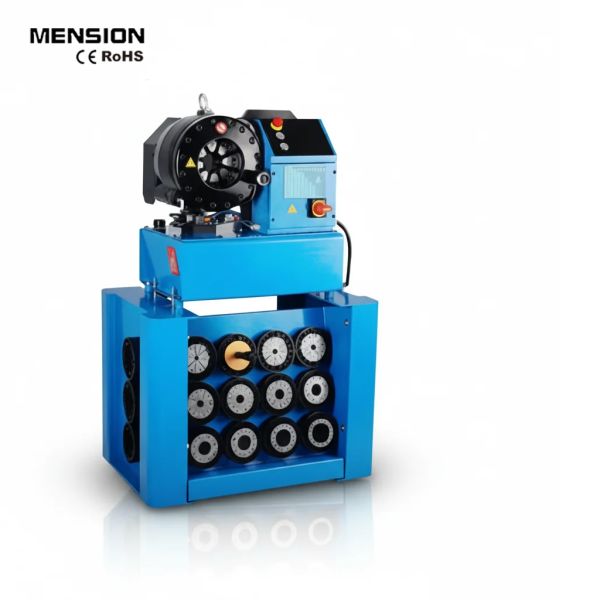

P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure
P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure
P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure
P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure
Specifications
Brand Name :
MENSION
Model Number :
MS-E130
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14-87mm
Hose Size :
1/4-2.5inch
Die Sets :
13
Color :
Blue
Max. Opening :
31mm
Crimping Force :
650T
System Pressure :
31.5Mpa
Power :
3.75KW
Size :
650*550*1360mm
Weight :
310Kg
Description
High Quality Factory P32 Hydraulic Hose Crimping Machine
MS-E130 P32 Hydraulic Hose Crimping Machine
Description
The MS-P32 hose crimping machine is a popular model with strong market demand in 2024. It delivers substantial crimping force and is suitable for high-pressure hydraulic hose applications ranging from 6mm to 64mm.
Key Advantages
Rexroth valve system provides powerful crimping force and extended service life
Quick-change tooling for die sets reduces setup time and increases productivity
Foot pedal operation frees both hands for improved work efficiency
Technical Specifications
Model MS-E130 P32 Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 650 (T)
Hose Size 1/4 - 2.5 (inch)
Max. Opening 31 (mm)
Die Sets 13
Die Set Type P32
System Pressure 31.5 (Mpa)
Accuracy 0.01 (mm)
Control MS
Standard Voltage 220 (V) / 380 (V)
Motor Power 3.75 (KW)
Length 650 (mm)
Width 550 (mm)
Height 1360 (mm)
Weight 310 (KG)
P32 Hydraulic Hose Crimping Machine with 650T Crimping Force 13 Die Sets and 31.5Mpa System Pressure
P32 Crimping Machine Die Sets
Die No. Crimping Range Length
6* 6 - 8mm 55
8* 8 - 10mm 55
10* 10 - 12mm 55
12* 12 - 14mm 55
14 14 - 16mm 55
16 16 - 19mm 55
19 19 - 22mm 55
22 22 - 26mm 70
26 26 - 30mm 70
30 30 - 34mm 70
34 34 - 39mm 75
39 39 - 45mm 75
45 45 - 51mm 90
51 51 - 57mm 90
57 57 - 63mm 100
63 63 - 69mm 110
69 69 - 78mm 110
Important Notes
"*" indicates non-standard die sets
Customized die sets are available upon request
Special voltage options available: 110V, 208V, 240V, 415V
Applications
The E130 is a high-performance hose crimping machine capable of processing high-pressure stainless steel braided hydraulic rubber hose, industrial hose, cables and wires, steel and iron tubes, automotive brake lines, and air suspension or spring systems.
