Specifications
Brand Name :
MENSION
Model Number :
MS-P32CS
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2.5inch
Die Sets :
13
Color :
Blue
Max. Opening :
31mm
Crimping Force :
280T
Control :
MS
Power :
2.2KW
Size :
630*540*420mm
Weight :
150Kg
Description
12V/24V 2" Mobile Hydraulic Hose Crimping Machine
Wholesale pricing available for industrial distributors and service providers.
12V/24V 2

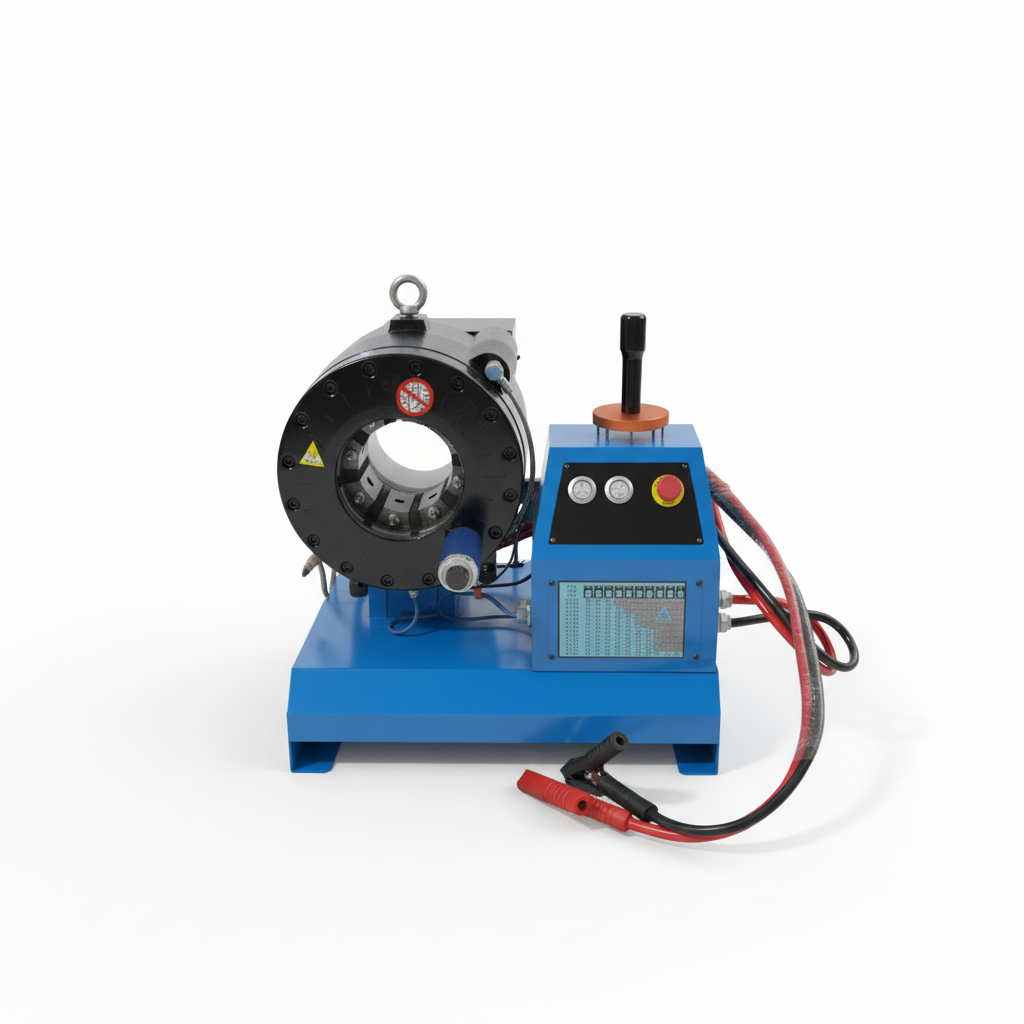

24V Mobile Hydraulic Hose Crimping Machine - MS-P32CS
The MS-P32CS cable crimping machine is a specialized 24V hydraulic hose crimper powered by automotive electrical systems, making it the ideal solution for on-site crimping operations with mobile service vehicles.
Key Features
  • Mobile operation capability for on-site crimping with service vehicles
  • High-quality components with extensive crimping range
  • Rapid crimping and opening cycles for enhanced productivity
Technical Specifications
ModelMS-P32CS Hydraulic Crimping Machine
Crimping Range14 - 87 (mm)
Crimping Force280 (T)
Hose Size1/4 - 2.5 (inch)
Max. Opening31 (mm)
Die Sets13
Die Set TypeP32
System Pressure31.5 (Mpa)
Accuracy0.01 (mm)
ControlMS
Standard Voltage24 (V)
Motor Power2.2 (KW)
Length630 (mm)
Width540 (mm)
Height420 (mm)
Weight150 (KG) without oil
12V/24V 2
P32 Crimping Machine Die Sets
Die No.Crimping RangeLength
6*6 - 8mm55
8*8 - 10mm55
10*10 - 12mm55
12*12 - 14mm55
1414 - 16mm55
1616 - 19mm55
1919 - 22mm55
2222 - 26mm70
2626 - 30mm70
3030 - 34mm70
3434 - 39mm75
3939 - 45mm75
4545 - 51mm90
5151 - 57mm90
5757 - 63mm100
6363 - 69mm110
6969 - 76mm110
74*74 - 80mm110
78*78 - 87mm110
Notes:
- "*" indicates non-standard die sets
- Customized die sets are available upon request
- 12V voltage option is available
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
Double Bevel Crimping Die Base
One-piece oil cylinder with double bevel die base design provides exceptional accuracy and crimping force for reliable performance.
12V/24V 2
High Hardness Die Sets
13 specialized die sets accommodate hose sizes from 1/4 to 2 inches, engineered for high-pressure applications with superior durability.
12V/24V 2
Precision Micrometer Control
High-precision micrometer with excellent stability enables easy diameter setting and features a large, readable scale for accurate adjustments.
12V/24V 2
Premium Raw Steel Materials
12V/24V 2
Applications
This versatile crimping machine is suitable for hydraulic high-pressure oil rubber hose assembly manufacturing, low-pressure water or air pipe pressing, steel tube and iron tube swaging, wire rope and cable pressing, and lock device fabrication.
