Power P32 Hydraulic Hose Crimping Machine For Industrial Machinery Hose Hydraulic Press
Power P32 Hydraulic Hose Crimping Machine For Industrial Machinery Hose Hydraulic Press
Power P32 Hydraulic Hose Crimping Machine For Industrial Machinery Hose Hydraulic Press
Power P32 Hydraulic Hose Crimping Machine For Industrial Machinery Hose Hydraulic Press
Specifications
Hose Size :
1/4 - 2.5inch
Weight :
310Kg
Power :
3.75KW
Crimping Range :
14 - 87mm
Die Sets :
13
Color :
Blue
System Pressure :
31.5Mpa
Max. Opening :
31mm
Size :
650*550*1360mm
Brand Name :
MENSION
Model Number :
MS-P32
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,,
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Force :
650T
Description

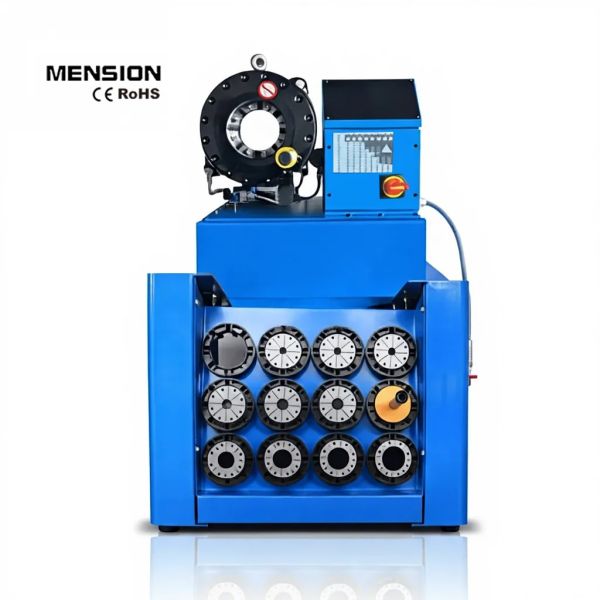

SP32 Hydraulic Hose Crimping Machine
The SP32 hydraulic pipe crimping machine is designed for creating high-pressure flexible hose assemblies ranging from 1/4 inch to 2.5 inches, accommodating 1 to 6 wire configurations. This robust crimper is the ideal solution for single-piece hose production in industrial applications.
Key Advantages
  • Quick-change die sets for efficient tooling transitions
  • Double conical master die design delivering substantial crimping force
  • Foot pedal operation for hands-free control during crimping
Technical Specifications
ModelMS-SP32 Crimping Machine
Crimping Range14 - 87 mm
Crimping Force650 Tons
Hose Size1/4 - 2.5 inch
Maximum Opening31 mm
Die Sets13
Die Set TypeP32
System Pressure31.5 MPa
Accuracy0.01 mm
Control SystemMS
Standard Voltage220V / 380V
Motor Power3.75 KW
Dimensions (L*W*H)650 * 550 * 1360 mm
Weight310 KG
Power P32 Hydraulic Hose Crimping Machine For Industrial Machinery Hose Hydraulic Press
P32 Standard Die Sets
Die NumberCrimping Range (mm)Length (mm)
6*6.0 - 8.055
8*8.0 - 10.055
10*10.0 - 12.055
12*12.0 - 14.055
1414.0 - 16.055
1616.0 - 19.055
1919.0 - 22.055
2222.0 - 26.070
2626.0 - 30.070
3030.0 - 34.070
3434.0 - 39.075
3939.0 - 45.075
4545.0 - 51.090
5151.0 - 57.090
5757.0 - 63.0100
6363.0 - 69.0110
6969.0 - 74.0110
7474.0 - 78.0110
7878.0 - 87.0110
Note: Asterisk (*) denotes non-standard die sets
Customized die sets available upon request
Special voltage options: 110V, 208V, 240V, 415V
Premium CR12MOV 13 Die Sets
Features 13 high-quality die sets with hardness rating of 59-63HRC. Includes quick-change tooling for significantly improved productivity.
Power P32 Hydraulic Hose Crimping Machine For Industrial Machinery Hose Hydraulic Press
Compact Design with High Crimping Force
Engineered with a compact structure and small footprint while delivering exceptional crimping force for demanding industrial applications.
Power P32 Hydraulic Hose Crimping Machine For Industrial Machinery Hose Hydraulic Press
Industrial Applications
The SP32 high-configuration hose crimper is suitable for crimping high-pressure stainless steel braided hydraulic rubber hose, cables and wires, steel iron square or round tubes, brake hose lines in automotive systems, and air suspension or spring components.
