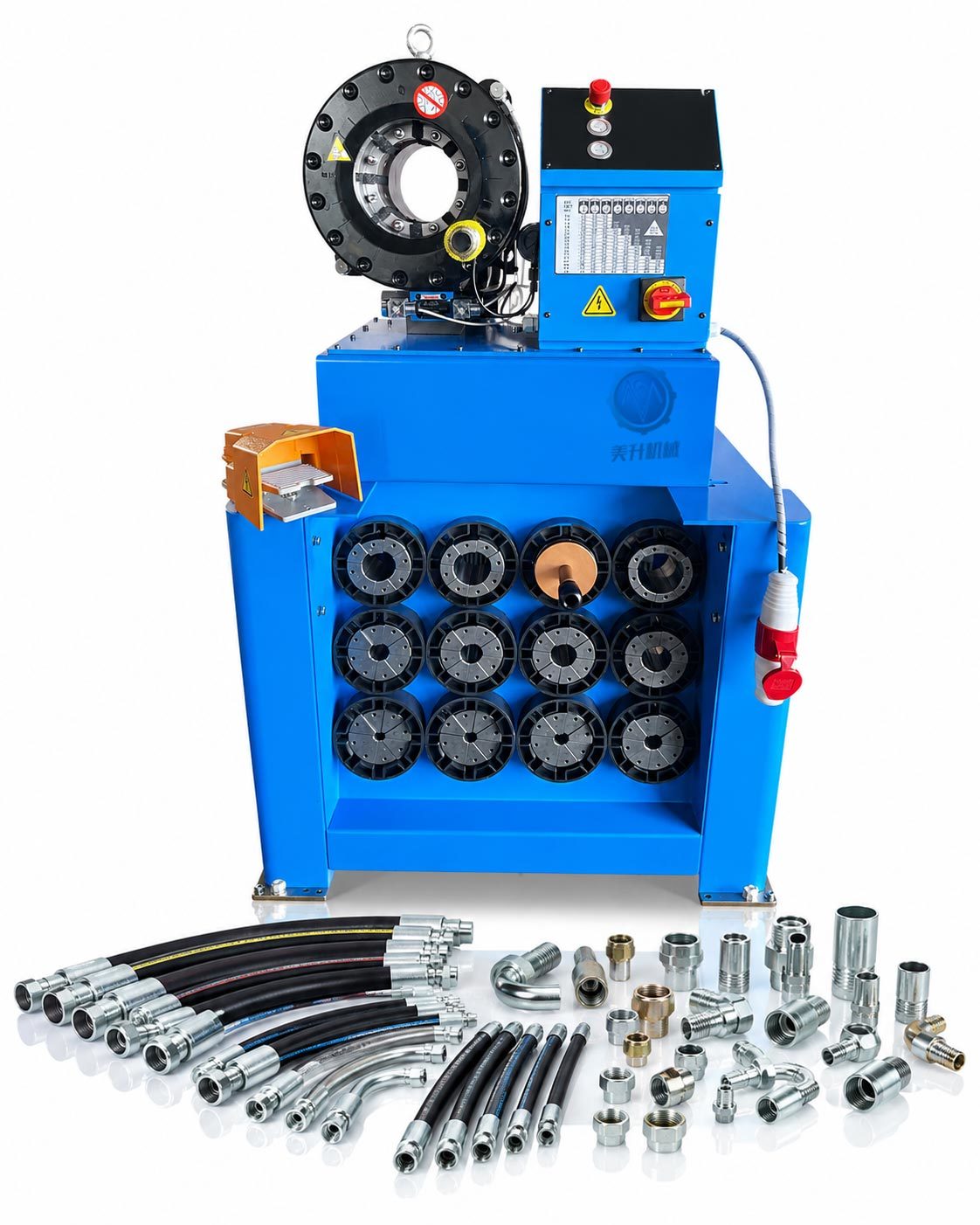

P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
Specifications
Hose Size :
1/4 - 2.5inch
Model Number :
P32
Power :
3.75KW
Packaging Details :
One Plywood For One Set
Max. Opening :
31mm
System Pressure :
31.5Mpa
MOQ :
1 Set
Delivery Time :
2 - 7 Working Days
Product Name :
P32 AC Hose Crimping Machine
Weight :
310Kg
Payment Terms :
T/T,Paypal
Application :
Workshops · Constr. Mach · Hyd. Repair · Mining Equip
Size :
650*550*1360mm
Supply Ability :
1000 Sets Per Month
Crimping Range :
14 - 87mm
Brand Name :
MENSION
Color :
Blue
Place of Origin :
CN
Crimping Force :
650T
Wty :
3Year
Price :
Contact Us
Die Sets :
13
Certification :
CE RoHS
Description
P32 AC Hose Hydraulic Crimping Machine
The P32 hydraulic hose crimping machine is designed for large-scale hydraulic hose assembly.Its high-quality components deliver superior durability and reliability.The quick-change die system shortens setup time and greatly boosts productivity for industrial use.
Key Features
  • High production efficiency for hose crimping operations
  • Quick and easy die change and installation process
  • Optional emergency stop device for enhanced safety
  • Numerical control hose crimper with precision operation
  • Crimps up to 2-inch 4-layer hydraulic hoses and 3-inch industrial hoses
  • Rapid crimping and retracted process cycles
  • Constructed with high-quality materials and renowned brand components
  • Delivers precision-formed crimping results
Technical Specifications
Model P32 AC Hose Crimping Machine
Crimping Range 14 - 87 mm
Crimping Force 650 Tons
Hose Size 1/4 - 2.5 inch
Maximum Opening 31 mm
Die Sets 13
Die Set Type P32
System Pressure 31.5 MPa
Accuracy 0.01 mm
Control System MS
Standard Voltage 220 V
Motor Power 3 KW
Dimensions (L x W x H) 650 x 550 x 1360 mm
Weight 310 kg
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
P32 Hose Crimper Die Sets
Die Number Crimping Range Length
6 * 6 ... 8 mm 55 mm
8 * 8 ... 10 mm 55 mm
10 * 10 ... 12 mm 55 mm
12 * 12 ... 14 mm 55 mm
14 14 ... 16 mm 55 mm
16 16 ... 19 mm 55 mm
19 19 ... 22 mm 55 mm
22 22 ... 26 mm 70 mm
26 26 ... 30 mm 70 mm
30 30 ... 34 mm 70 mm
34 34 ... 39 mm 75 mm
39 39 ... 45 mm 75 mm
45 45 ... 51 mm 90 mm
51 51 ... 57 mm 90 mm
57 57 ... 63 mm 100 mm
63 63 ... 69 mm 110 mm
69 69 ... 74 mm 110 mm
74 * 74 ... 78 mm 110 mm
78 * 78 ... 87 mm 110 mm
Note: * indicates non-standard die sets. Customized die sets are available upon request. Special voltage configurations including 110V, 208V, 240V, and 415V are available.
Optional Features
  • UC control system upgrade
  • Position limit device for enhanced precision
Forged from top-grade materials
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
Supplier of well-known brands
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
Top driving force
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
Manual control panel
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
Foot switch control, freeing up your hands
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
Precision control with millimeter-level adjustment
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
High-strength premium mold with quick change function
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets

Crimping Applications
The P32 hydraulic hose crimping machine is designed for comprehensive crimping applications across various industrial hose types and sizes.
P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets P32 AC Hydraulic Hose Crimping Machine with 650T Crimping Force, 14-87mm Range, and 13 Die Sets
