2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool
2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool
2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool
2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool
2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool
2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool
Specifications
Brand Name :
MENSION
Model Number :
MS-E38
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Price :
Contact Us
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2inch
Die Sets :
10
Max. Opening :
31mm
Color :
Blue
Crimping Force :
640T
System Pressure :
31.5Mpa
Power :
3KW
Size :
630*450*600mm
Weight :
200Kg
Description

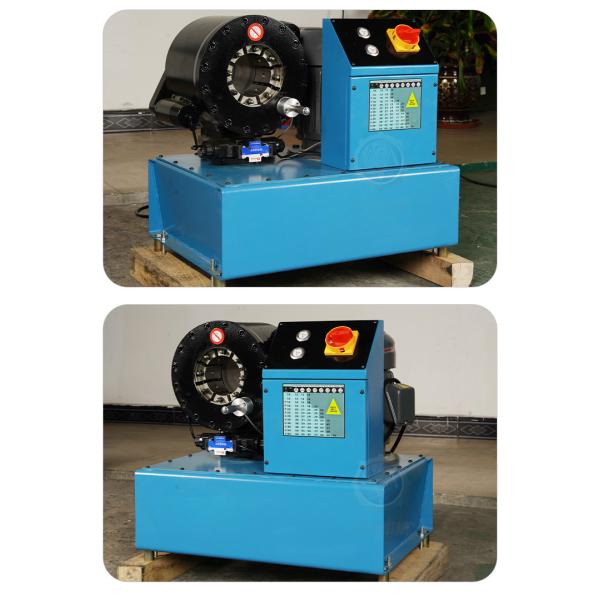

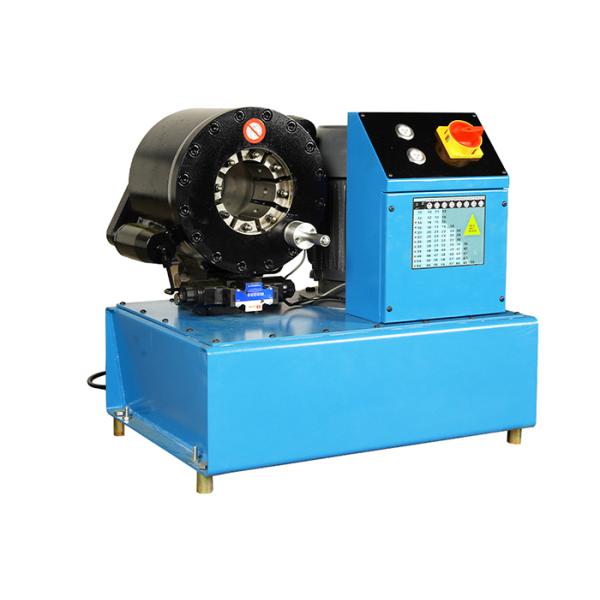

MS-E38 High Pressure Hydraulic Hose Crimping Machine
Product Overview
The MS-E38 hydraulic crimp machine delivers 640T crimping force in a compact design, making it ideal for hose assembly production in machine shops and repair workshops. This versatile crimping machine includes storage for all 10 die sets in the base for operator convenience.
Key Features
  • Forged one-piece crimping head prevents oil leakage
  • Compact structure with lightweight design
  • Double conical master die delivers maximum crimping force
  • High hardness die sets for extended service life
Technical Specifications
ModelMS-E38 Hose Crimper
Crimping Range14 - 87 (mm)
Crimping Force640 (T)
Hose Size1/4 - 2 (inch) 4SH
Max. Opening31 (mm)
Die Sets10
Die Set Type38
System Pressure31.5 (Mpa)
Accuracy0.01 (mm)
ControlMS
Standard Voltage220 (V) / 380 (V)
Motor Power3 (KW)
Length630 (mm)
Width450 (mm)
Height600 (mm)
Weight200 (KG)
2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool 2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool
38 Crimper Die Sets Specifications
Die No.Crimping (mm)Length (mm)
6*6.0 - 8.055
8*8.0 - 10.055
10*10.0 - 12.055
12*12.0 - 14.055
1414.0 - 16.060
1616.0 - 20.060
2020.0 - 22.060
2222.0 - 26.060
2626.0 - 30.060
3030.0 - 38.070
3838.0 - 46.070
4646.0 - 54.080
5454.0 - 64.080
6464.0 - 69.080
69*69.0 - 76.090
Additional Options & Notes
  • Customized die sets available in different sizes or shapes
  • Special voltages including 110V, 208V, 240V, 415V available
  • Foot pedal option for hands-free operation
Advanced Design Features

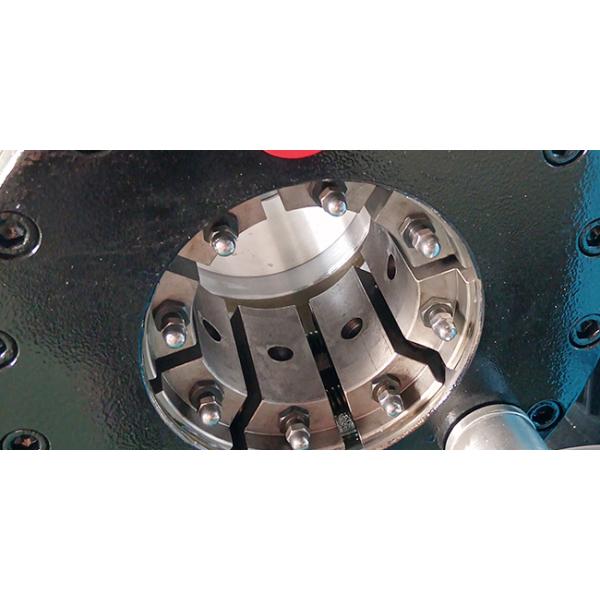

Hydraulic Crimping Head
One-piece forged structure ensures long service life, while double conical master die provides maximum crimping force and high accuracy.
2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool

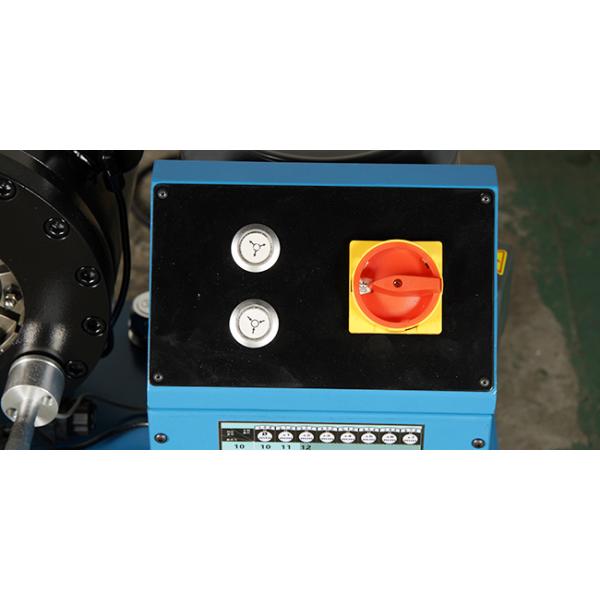

User-Friendly Control Panel
Easy and convenient operation with two-button control, making it suitable for both experienced operators and new users.
2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool

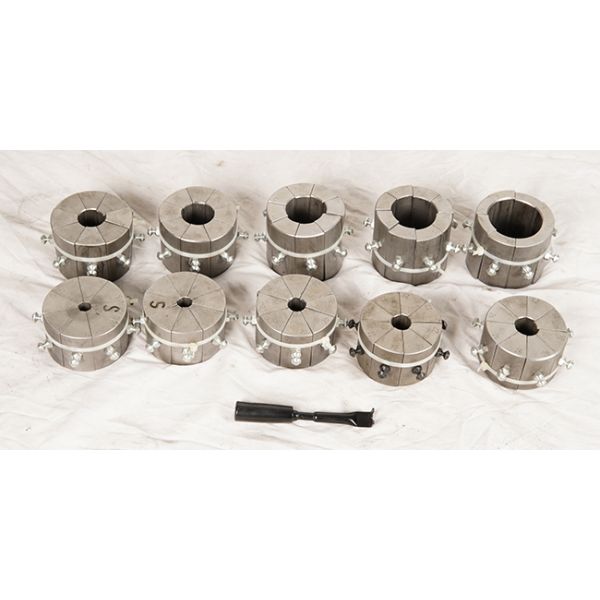

High Hardness Die Sets
E38 includes 10 die sets with hardness of 59-63HRC for extended service life and consistent performance.
2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool

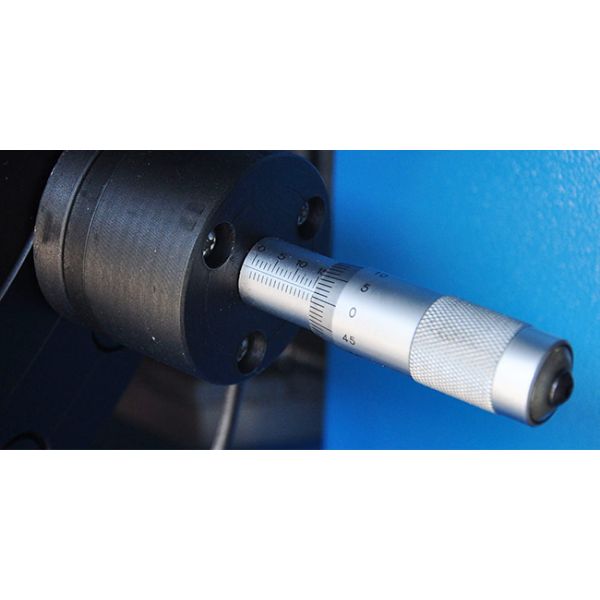

Precision Crimping Dial
Hose crimping sizes are controlled by a high-accuracy micrometer, eliminating the need to adjust scales for single-size hoses.
2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool

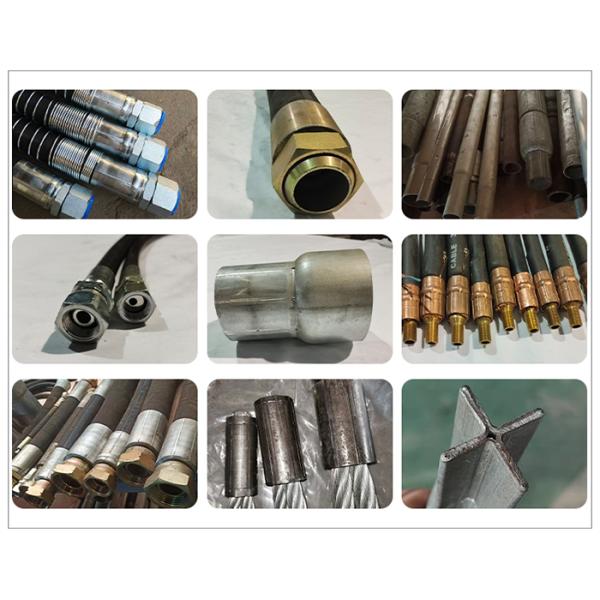

Application Samples
MS-E38 is widely used in hydraulic hose assembly crimping, cable and wire rope pressing, tube swaging, and automotive component jointing applications.
2 Inch High Pressure Hydraulic Hose Crimper P32 Crimping Machine AC Fitting Crimp Tool
Complete Hose Assembly Tool Requirements
  • Cutting machine for precise hose length cutting
  • Rubber layer stripping machine for skiving outer or inner rubber layers
  • Crimping machine for joining hydraulic hose, fitting stem, and ferrule
  • Pressure test machine for verifying hose assembly pressure capacity
