Specifications
Brand Name :
MENSION
Model Number :
P140
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
6 - 220mm
Hose Size :
2'' 6SP (DN51)
Die Sets :
18 sets
Color :
Blue or customized
Max. Opening :
82mm
Crimping Force :
320T
Product :
P140 Crimping Hose Fitting Machine
Application :
Workshop
Control Method :
Button Control
Voltage :
380V 50HZ
Size :
950*880*1750mm
Weight :
1100Kg
Description

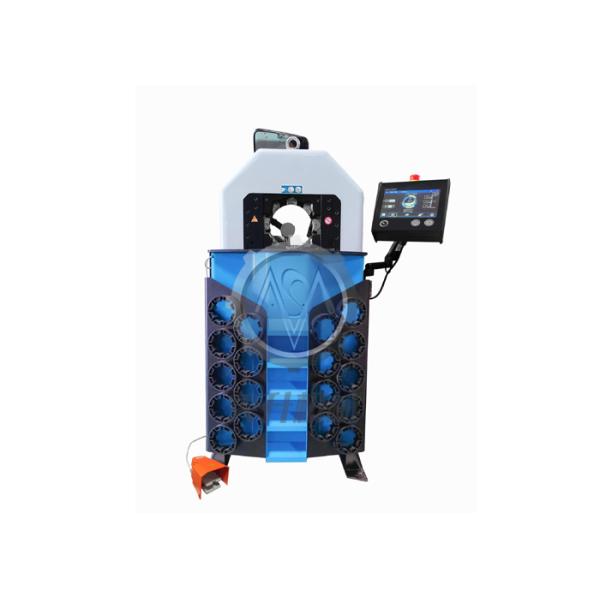

P140 Hydraulic Hose Crimping Machine
Heavy duty hose crimper for high pressure hydraulic hoses up to 2 inches with 6 layers of reinforcement
Product Overview
The P140 hose crimping machine delivers precise and reliable crimping for hoses up to 2 inches with 6 layers of reinforcement. This industrial-grade crimper accommodates various hose sizes with adjustable crimping pressure settings, interchangeable die sets, hydraulic power operation, and comprehensive safety features. Essential for industries requiring secure, leak-free high-pressure hose connections.
Key Advantages
  • Crimping Capacity: Handles hoses up to 2 inches in diameter for versatile applications
  • Layered Reinforcement: Specifically designed for hoses with up to 6 reinforcement layers
  • Adjustable Settings: Precise crimping pressure control prevents hose or fitting damage
  • Multiple Die Sets: Interchangeable die sets accommodate various hose and fitting combinations
Technical Specifications
ModelP140 Hose Crimping Machine
Crimping Range6 - 220 mm
Crimping Force320 T
Hose Size1/4" - 2" (6SP)
Max. Opening82 mm
Die Sets18
Die Set TypeP32 & P140
System Pressure31.5 MPa
Accuracy0.01 mm
ControlUC
Standard Voltage380 V
Motor Power4 KW
Length950 mm
Width880 mm
Height1750 mm
Weight1100 KG
Hydraulic Hose Fittings Press Machine Hose Crimping Machine Eaton Crimper
P140 Hose Crimper Machine Die Sets
P32 Die Sets
Die No.Crimping RangeLength
6*6 - 8mm55
8*8 - 10mm55
10*10 - 12mm55
12*12 - 14mm55
1414 - 16mm55
1616 - 19mm55
1919 - 22mm55
2222 - 26mm70
2626 - 30mm70
3030 - 34mm70
3434 - 39mm75
3939 - 45mm75
4545 - 51mm90
5151 - 57mm90
5757 - 63mm100
6363 - 69mm110
6969 - 74mm110
7474 - 78mm110
7878 - 84mm110
P140 Die Sets
Die No.Crimping RangeLength
8484 - 92mm110
9292 - 100mm110
100100 - 108mm110
108*108 - 116mm110
116*116 - 126mm110
126*126 - 136mm110
Important Notes
  • Customized crimping die sets are available
  • Special voltages (110V, 208V, 240V, 415V) are available
  • * indicates non-standard die sets
  • Includes one adapter die
Standard Accessories
  • Quick Die Change Tool
  • Die Set Rack / Machine Stand
  • UC/CNC Control
  • Foot Pedal Switch
  • Crimping Mirror
  • Emergency Stop
  • Back Positioning Device
Applications
The P140 hydraulic swaging machine is designed for industrial applications requiring high-pressure hydraulic hose assemblies with secure, leak-free connections.
