Finn Power 2 Inch P20 Hydraulic Hose Crimper Pipe Pressing Machine
Finn Power 2 Inch P20 Hydraulic Hose Crimper Pipe Pressing Machine
Finn Power 2 Inch P20 Hydraulic Hose Crimper Pipe Pressing Machine
Finn Power 2 Inch P20 Hydraulic Hose Crimper Pipe Pressing Machine
Finn Power 2 Inch P20 Hydraulic Hose Crimper Pipe Pressing Machine
Finn Power 2 Inch P20 Hydraulic Hose Crimper Pipe Pressing Machine
Specifications
Brand Name :
MENSION
Model Number :
P20
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 64mm
Hose Size :
1/4'' - 2''
Die Sets :
10 sets
Color :
Blue or customized
Max. Opening :
25mm
Crimping Force :
640T
Product :
P20 Crimping Hose Machine
Application :
Workshop

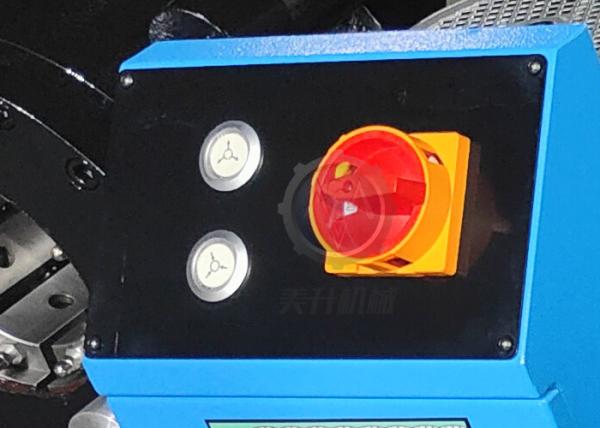

Control Method :
Button Control
Voltage :
220V
Size :
630*450*600mm
Weight :
200Kg
Description
Finn Power 2 Inch P20 Hydraulic Hose Crimper Pipe Pressing Machine

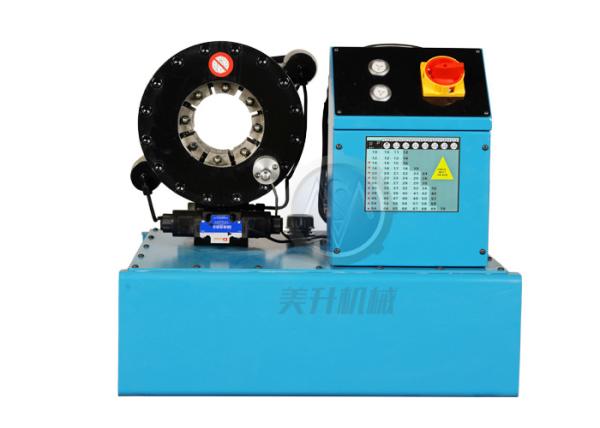

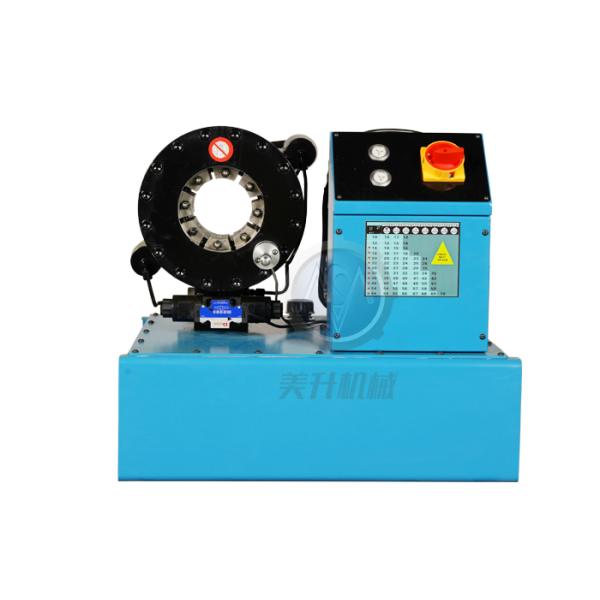

HYDRAULIC HOSE CRIMPING MACHINE P20
DESCRIPTION
The P20 pressing tool for hydraulic hose is engineered for high-pressure rubber hose fabrication from 1/4 inch to 2 inch. Equipped with 10 sets of high-hardness dies covering crimping diameters from 14mm to 64mm. Standard dies are smooth; for specialized applications like air conditioner or brake hoses, customized toothy die sets are available.
Ideal for hose repair workshops and fitting manufacturing stores, the P20 hose crimper features a compact design that can be installed on any platform. A dedicated rack from MENSION is available for separate purchase.
ADVANTAGES
  • High system pressure delivering substantial crimping force
  • Large production capacity for high-volume operations
  • Precision micrometer with accuracy up to 0.01mm
  • Compatible with steel, aluminum, and copper ferrules
TECHNICAL DATA
ModelP20 Cable Pressing Machine
Crimping Range14 - 64 (mm)
Crimping Force640 (T)
Hose Size1/4" - 2" (inch)
Max. Opening25 (mm)
Die Sets10
Die Set TypeP20
System Pressure31.5 (Mpa)
Accuracy0.01 (mm)
ControlMS
Standard Voltage220 (V)
Motor Power3 (KW)
Length630 (mm)
Width450 (mm)
Height600 (mm)
Weight200 (KG)
Finn Power 2 Inch P20 Hydraulic Hose Crimper Pipe Pressing Machine
P20 HOSE PRESSING MACHINE DIE SETS
Die No.Crimping RangeLength
6*6 - 8mm35
8*8 - 10mm35
10*10 - 12mm35
12*12 - 14mm35
1414 - 16mm60
1616 - 20mm60
2020 - 22mm60
2222 - 26mm60
2626 - 30mm60
3030 - 38mm70
3838 - 46mm70
4646 - 54mm80
5454 - 64mm80
6464 - 69mm80
69*69 - 76mm100
NOTE
  • Customized crimping die sets are available
  • Special voltages (110V, 208V, 240V, 415V) are available
  • * indicates non-standard die sets
OPTIONAL ACCESSORIES
  • Quick Die Change Tool
  • Die Set Rack / Machine Stand
  • UC/CNC Control
  • Foot Pedal Switch
  • Pressure Gauge
  • Normal Stand

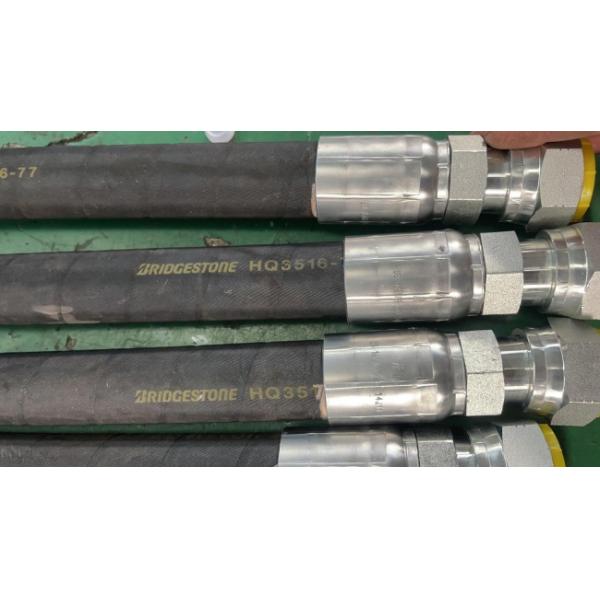

APPLICATION FOR P20 HYDRAULIC CRIMPING MACHINE
Finn Power 2 Inch P20 Hydraulic Hose Crimper Pipe Pressing Machine
