Specifications
Brand Name :
MENSION
Model Number :
MS-P51
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4'' - 2''
Die Sets :
10 sets
Color :
Blue or customized
Max. Opening :
25mm
Crimping Force :
640T
Product :
MS-P51 Hydraulic Hose Crimping Machine
Application :
Workshop
Operate Mode :
Electric Operate
Voltage :
220V
Size :
630*450*600mm
Weight :
200Kg
Description

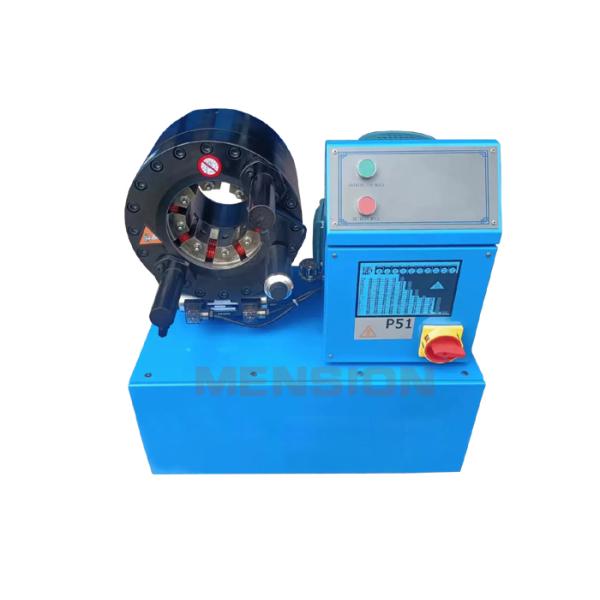

P51 Hydraulic Hose Crimping Machine - 2" Automatic Hose Crimper
The P51 hose crimper machine features a unique oil cylinder design capable of crimping high pressure stainless steel braided hose up to 2 inches. It includes high-accuracy crimping diameter adjustment tools with precision up to 0.01mm.
The master die connects with 16 high tensile springs, enabling quick cylinder opening and extended service life. A die sets choosing reference sheet is conveniently pasted on the machine for easier and more convenient hose pressing operations.
Key Advantages
  • Compact structure with large pressing force
  • Innovative double conical hydraulic cylinder design
  • Rapid speed for both closing and opening operations
  • High precision micrometer adjustment
  • Extended warranty period
Technical Specifications
ModelP51 Hydraulic Hose Crimping Machine
Crimping Range14 - 87 (mm)
Crimping Force640 (T)
Hose Size1/4" - 2" (inch)
Max. Opening25 (mm)
Die Sets10
Die Set TypeP51
System Pressure31.5 (Mpa)
Accuracy0.01 (mm)
ControlMS
Standard Voltage220 (V) / 380 (V)
Motor Power3 (KW) / 4 (KW)
Length630 (mm)
Width450 (mm)
Height600 (mm)
Weight200 (KG)
Hydraulic Hose Crimping Machine 2'' P20 Hose Crimper for Hydraulic Hose Pressing Machine
P51 Hydraulic Pipe Crimping Machine Die Sets
Die No.Crimping RangeLength
6*6 - 8mm35
8*8 - 10mm35
10*10 - 12mm35
12*12 - 14mm35
1414 - 16mm60
1616 - 20mm60
2020 - 22mm60
2222 - 26mm60
2626 - 30mm60
3030 - 38mm70
3838 - 46mm70
4646 - 54mm80
5454 - 64mm80
6464 - 69mm80
69*69 - 76mm100
Important Notes
  • Customized crimping die sets are available
  • Special voltages including 110V, 208V, 240V, and 415V are available
  • * indicates non-standard die sets
Optional Accessories
  • Quick Die Change Tool
  • Die Set Rack / Machine Stand
  • UC/CNC Control
  • Foot Pedal Switch
  • Pressure Gauge
  • Normal Rack

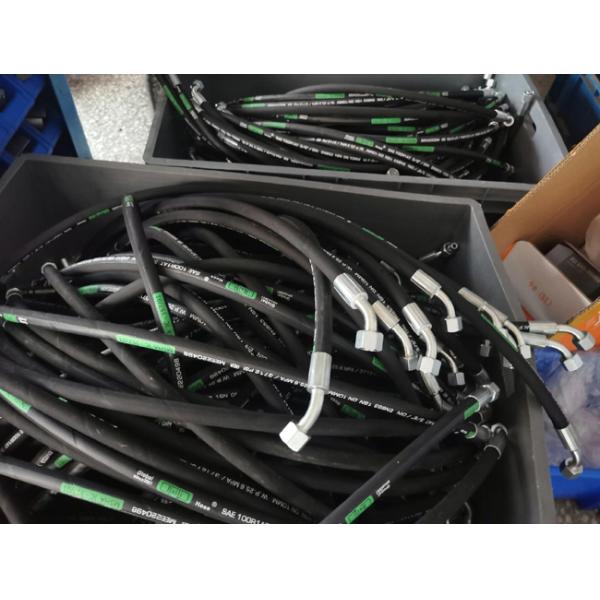

Applications for P51 Hydraulic Hose Pressing Machine
