4'' High Pressure Hose Crimper S102 Hydraulic Hose Crimping Machine Mining
4'' High Pressure Hose Crimper S102 Hydraulic Hose Crimping Machine Mining
4'' High Pressure Hose Crimper S102 Hydraulic Hose Crimping Machine Mining
4'' High Pressure Hose Crimper S102 Hydraulic Hose Crimping Machine Mining
4'' High Pressure Hose Crimper S102 Hydraulic Hose Crimping Machine Mining
4'' High Pressure Hose Crimper S102 Hydraulic Hose Crimping Machine Mining
Specifications
Brand Name :
MENSION
Model Number :
MS-S102
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 187mm
Hose Size :
1/4 - 4inch
Die Sets :
16+1
Color :
Blue
Max. Opening :
30mm
Crimping Force :
1500T
Product Name :
S102 Crimping Machine
Application :
Production
System Pressure :
31.5Mpa
Power :
3KW
Size :
850*530*980mm
Weight :
500Kg
Description

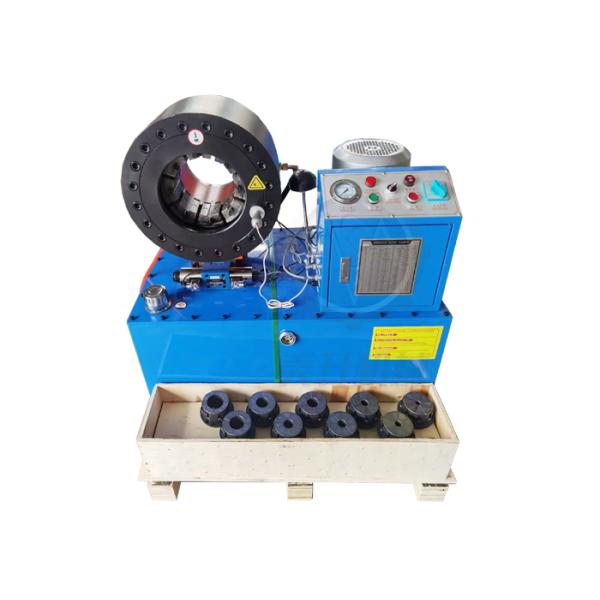

4" High Pressure Hose Crimper S102 Hydraulic Hose Crimping Machine
CRIMPING MACHINE MS - S102 FOR HYDRAULIC HOSE
DESCRIPTION
MS-S102 hose swage machine is a 4" high pressure hose crimper with crimping range for hose from size 1/4" to 4" for one to six layers braided with high pressure. It comes with standard 16 normal dies and 1 adapter die sets. Maximum opening without dies reaches 187mm. This hose crimping machine is commonly used in mining machinery repair and maintenance industry.
MAIN ADVANTAGES
  • Fast delivery time
  • Advanced oil cylinder
  • High speed operation
  • Large production capacity
TECHNICAL DATA
ModelMS-S102 Crimping Machine for Hose
Crimping Range14 - 187 (mm)
Crimping Force1500 (T)
Hose Size1/4 - 4 (inch) 6 Layers
Max. Opening30 (mm)
Die Sets16 + 1
Die Set Type51 + 102
System Pressure31.5 (Mpa)
Accuracy0.05 (mm)
ControlMS
Standard Voltage220 (V) / 380 (V)
Motor Power4 (KW)
Length850 (mm)
Width530 (mm)
Height980 (mm)
Weight500 (KG)
4'' High Pressure Hose Crimper S102 Hydraulic Hose Crimping Machine Mining
51 HOSE CRIMPER DIE SETS
Die No.Crimping RangeLength
6*6 - 8 mm35
8*8 - 10 mm35
10*10 - 12 mm35
12*12 - 15 mm35
1515 - 19 mm60
1919 - 23 mm60
2323 - 26 mm60
2626 - 31 mm60
3131 - 36 mm70
3636 - 41 mm70
4141 - 47 mm70
4747 - 55 mm80
5555 - 63 mm80
6363 - 75 mm80
7575 - 87 mm100
8787 - 100 mm120
100100 - 115 mm120
115115 - 130 mm120
130130 - 147 mm120
NOTES
  • * indicates non-standard die sets
  • Customized die sets are available
  • Special voltages 110V, 208V, 240V, 415V are available
OPTIONAL ACCESSORIES
  • Quick Change Tool
  • UC control system
