Specifications
Brand Name :
MENSION
Model Number :
P32MS
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2.5inch
Die Sets :
13
Color :
Blue
Max. Opening :
31mm
Crimping Force :
650T
Product Name :
P32MS Hose Crimper
Application :
Workshop
System Pressure :
31.5Mpa
Power :
3.75KW
Size :
650*550*1360mm
Weight :
310Kg
Description

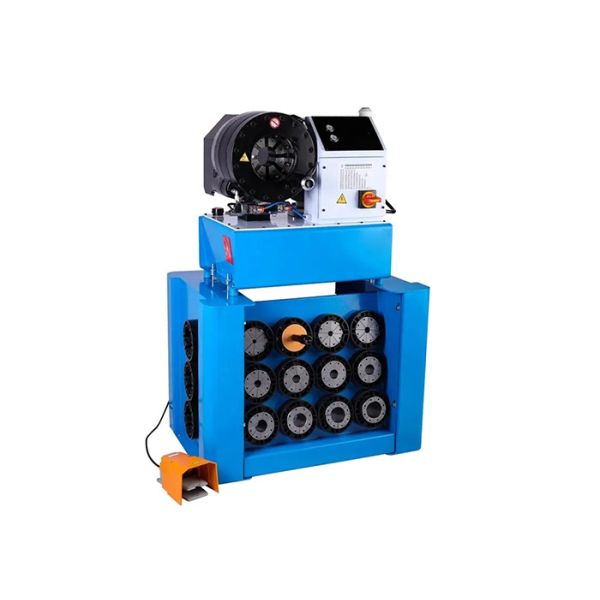

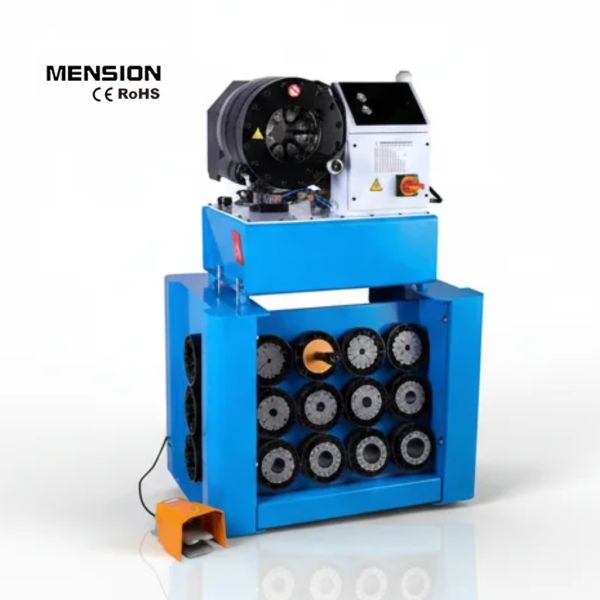

High Pressure Hydraulic Hose Crimper P32 Hydraulic Hose Crimping Machine
2.5 INCH HYDRAULIC HOSE CRIMPER MACHINE P32MS
DESCRIPTION

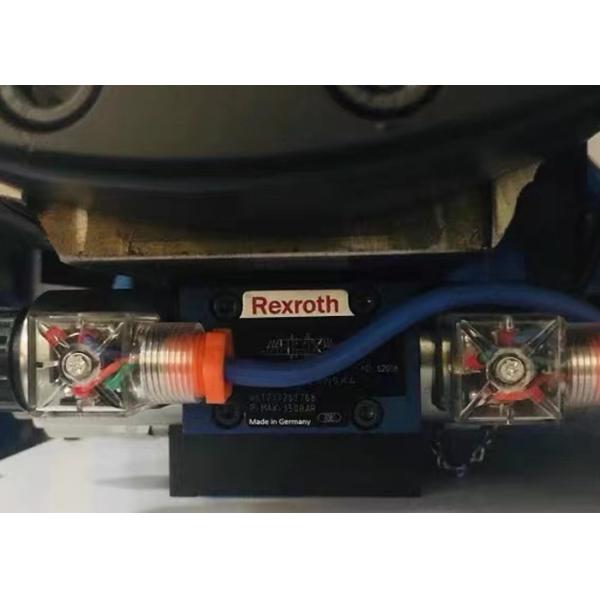

The MS-E130 (now P32MS) pipe pressing machine supports hydraulic high pressure hose up to 4 layers 2-1/2" and industrial hose up to 3" making. Featuring large working stroke and ergonomic design, this Finn power style hose crimper utilizes imported spares from famous brands for durable operating performance.
ADVANTAGES
  • High efficiency
  • Good product consistency
  • Simple operation
  • High precision
TECHNICAL DATA
ModelP32MS Hose Crimper
Crimping Range14 - 87 (mm)
Crimping Force650 (T)
Hose Size1/4 - 2.5 (inch)
Max. Opening31 (mm)
Die Sets13
Die Set TypeP32
System Pressure31.5 (Mpa)
Accuracy0.01 (mm)
ControlMS
Standard Voltage220 (V)
Motor Power3 (KW)
Length650 (mm)
Width550 (mm)
Height1360 (mm)
Weight310 (KG)
High Pressure Hydraulic Hose Crimper P32 Hydraulic Hose Crimping Machine Factory

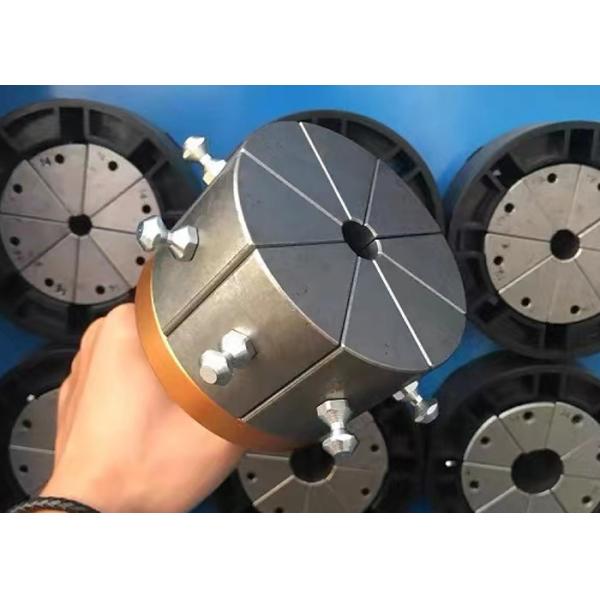

P32MS CRIMPER DIE SETS
Die No.Crimping RangeLength
6 *6 ... 8mm55mm
8 *8 ... 10mm55mm
10 *10 ... 12mm55mm
12 *12 ... 14mm55mm
1414 ... 16mm55mm
1616 ... 19mm55mm
1919 ... 22mm55mm
2222 ... 26mm70mm
2626 ... 30mm70mm
3030 ... 34mm70mm
3434 ... 39mm75mm
3939 ... 45mm75mm
4545 ... 51mm90mm
5151 ... 57mm90mm
5757 ... 63mm100mm
6363 ... 69mm110mm
6969 ... 74mm110mm
74 *74 ... 78mm110mm
78 *78 ... 87mm110mm
NOTE
• "*" indicates non-standard die sets
• Customized die sets are available
• Special voltages 110V, 208V, 240V, 415V are available
OPTIONAL
• UC control system
• Position limit device
