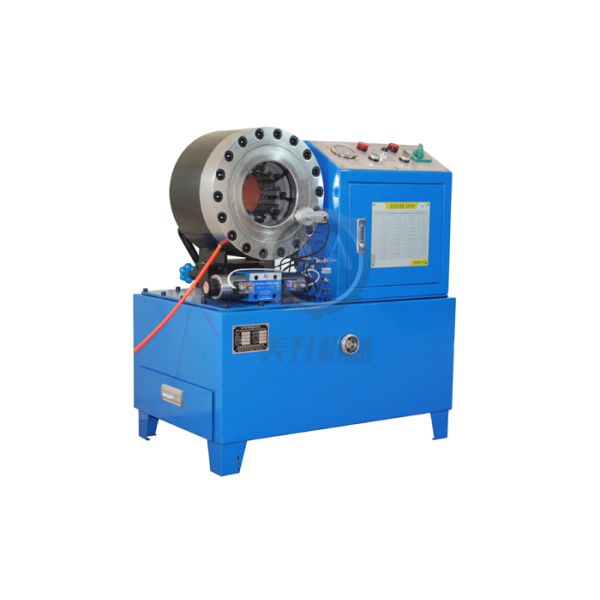

2 Inch Hydraulic Hose Crimper High Pressure Hose Crimping Machine
2 Inch Hydraulic Hose Crimper High Pressure Hose Crimping Machine
2 Inch Hydraulic Hose Crimper High Pressure Hose Crimping Machine
2 Inch Hydraulic Hose Crimper High Pressure Hose Crimping Machine
2 Inch Hydraulic Hose Crimper High Pressure Hose Crimping Machine
2 Inch Hydraulic Hose Crimper High Pressure Hose Crimping Machine
2 Inch Hydraulic Hose Crimper High Pressure Hose Crimping Machine
2 Inch Hydraulic Hose Crimper High Pressure Hose Crimping Machine
Specifications
Brand Name :
MENSION
Model Number :
MS-51
Certification :
CE RoHS
Place of Origin :
CN
MOQ :
1 Set
Price :
Contact Us
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets Per Month
Delivery Time :
2 - 7 Working Days
Packaging Details :
One Plywood For One Set
Crimping Range :
14 - 87mm
Hose Size :
1/4 - 2inch
Die Sets :
10
Color :
Blue
Max. Opening :
30mm
Crimping Force :
500T
Product Name :
MS-51 Hydraulic Hose Crimper
Application :
Workshop
System Pressure :
31.5Mpa
Voltage :
220V
Size :
670*430*820mm
Weight :
260Kg
Description
2 Inch Hydraulic Hose Crimper High Pressure Hose Crimping Machine
R13 Hydraulic Hose Crimping Machine MS-51
Product Overview
Our state-of-the-art High Pressure Hose Crimping Machine sets a new standard for precision and efficiency in hose assembly. Designed for various industries including hydraulics, automotive, and manufacturing, it ensures secure and leak-free connections.
This versatile machine crimps a wide range of hose sizes and types with intuitive interface and user-friendly controls, enabling operators to achieve accurate and consistent crimps while reducing downtime and optimizing productivity.
Built with robust construction and advanced safety features, this machine guarantees durability and operator protection. Upgrade your hose assembly process with exceptional reliability and operational efficiency.
Main Features
  • Precision Crimping Capability: Accurate and Consistent Crimps
  • Versatile Hose Compatibility: Wide Range of Applications
  • User-Friendly Interface: Intuitive Controls, Easy Operation
  • Robust Construction: Durable and Long-Lasting
  • Enhanced Safety Features: Operator Protection, Peace of Mind
Technical Specifications
Model MS-51 Hose Crimping Machine
Crimping Range 14 - 87 (mm)
Crimping Force 500 (T)
Hose Size 1/4 - 2 (inch)
Max. Opening 30 (mm)
Die Sets 10
Die Set Type 51
System Pressure 31.5 (Mpa)
Accuracy 0.05 (mm)
Control MS
Standard Voltage 220 (V) Single Phase
Motor Power 3 (KW)
Length 670 (mm)
Width 430 (mm)
Height 820 (mm)
Weight 260 (KG)
2 Inch Hydraulic Hose Crimper High Pressure Hose Crimping Machine
51 Hose Crimper Die Sets
Die No. Crimping (mm) Length (mm)
6* 6 - 8 mm 35
8* 8 - 10 mm 35
10* 10 - 12 mm 35
12* 12 - 15 mm 35
15 15 - 19 mm 60
19 19 - 23 mm 60
23 23 - 26 mm 60
26 26 - 31 mm 60
31 31 - 36 mm 70
36 36 - 41 mm 70
41 41 - 47 mm 70
47 47 - 55 mm 80
55 55 - 63 mm 80
63 63 - 69 mm 80
69* 69 - 76 mm 90
• "*" indicates non-standard die sets
• Customized die sets are available
• Special voltages 110V, 208V, 240V, 415V are available
Optional Accessories
  • Quick Change Tool
  • Quick Change Die Set Rack
  • UC Control
Crimping machines are primarily used for hydraulic hose assembly manufacturing.
