1T/Hour Ultrapure Water Equipment with Stainless steel membrane shell
1T/Hour Ultrapure Water Equipment with Stainless steel membrane shell
1T/Hour Ultrapure Water Equipment with Stainless steel membrane shell
1T/Hour Ultrapure Water Equipment with Stainless steel membrane shell
1T/Hour Ultrapure Water Equipment with Stainless steel membrane shell
1T/Hour Ultrapure Water Equipment with Stainless steel membrane shell
1T/Hour Ultrapure Water Equipment with Stainless steel membrane shell
1T/Hour Ultrapure Water Equipment with Stainless steel membrane shell
Specifications
Brand Name :
HongJie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
1set
Price :
US$10000~US$12000
Payment Terms :
T/T
Supply Ability :
>300sets/month
Delivery Time :
5-10working days
Packaging Details :
export standard wooden case
Model Number :
HJ-UP1T
Product name :
Ultrapure water machine
Capacity :
1T/Hour
Key Components :
RO Membrane Modules, EDI Units
Size of frame(m) :
3.5*1.5*2.2
Recovery Rate :
Primary RO ≥ 75%, Secondary RO ≥ 85%
Desalination Rate :
>98%
Description

4Tons/Hour Two Stage Ultrapure water Machine With RO and EDI for Optoelectronics Module

I. Overview

Ultrapure water equipment is a precision water treatment system that removes impurities from water to trace levels through a multi-stage process involving pretreatment, reverse osmosis, and ultrapurification. The resulting water can have a resistivity exceeding 18 MΩ·cm, also known as soft water. Originating in the US semiconductor industry, this equipment is now widely used in electronics, medicine, and chemical industries, including chip manufacturing, high-precision material cleaning, and laboratory pure water production.

II. Process

Raw water → Raw water booster pump → Multi-media filter → Activated carbon filter → Water softener → Precision filter → First-stage reverse osmosis equipment → Intermediate water tank → Intermediate water pump → Ion exchanger → Purified water tank → Pure water pump → Ultraviolet sterilizer → Microporous filter → Water point
III:Features:
1: High degree of integration, easy expansion; increasing the number of membranes can increase processing capacity.
2: High degree of automation, immediate shutdown in the event of a fault, and automatic protection function.
3: The membrane assembly is made of rolled composite membranes, demonstrating higher solute separation efficiency and permeation rate.
4: Low energy consumption, high water utilization, and low operating costs.
5: Rational structure, small footprint.
6: Advanced membrane protection system: When the equipment is shut down, desalinated water automatically flushes contaminants from the membrane surface, extending membrane life.
7: The system has no wearing parts, requiring minimal maintenance, and provides long-term, efficient operation.
8: The equipment is designed with a scale prevention system for the membrane cleaning system.

IV.Parameters

Item Specification
Product name Ultrapure water system
Produced Water Quality Conductivity < ≤1.3 μS/cm
Core Technology Double-pass Reverse Osmosis + EDI
Key Components RO Membrane Modules, EDI Units
Operation Mode Full Automatic (PLC-controlled)
Material Stainless steel rack, stainless steel membrane shell, carbon steel tank
After-Sales Service 1Year Warranty For Standard Equipment

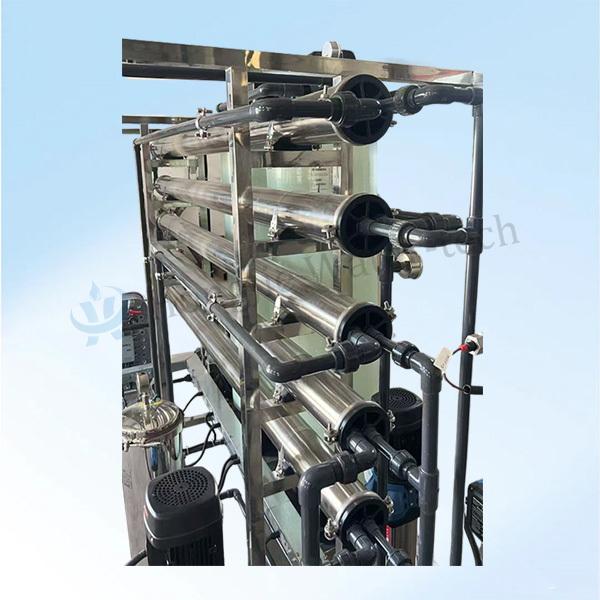

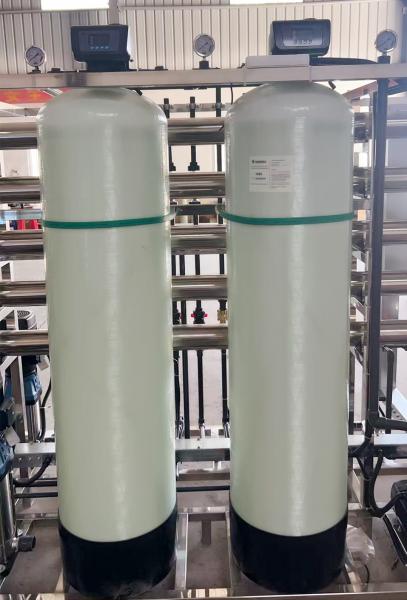

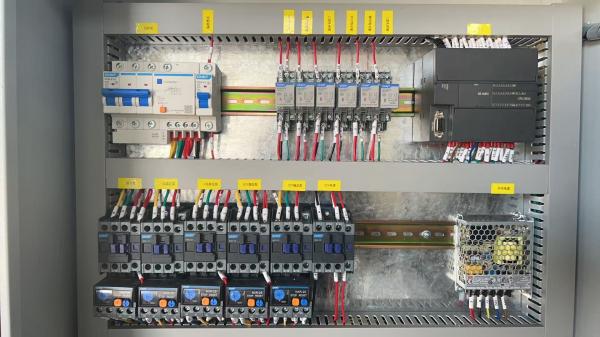

IV:Photo for details

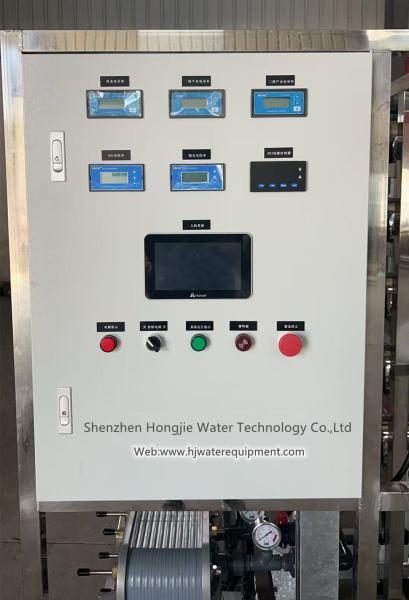

Company name,logo,contact information,website,all can be silkprinted on Electric control cabinet as your requirement.And all could be printed in English.
