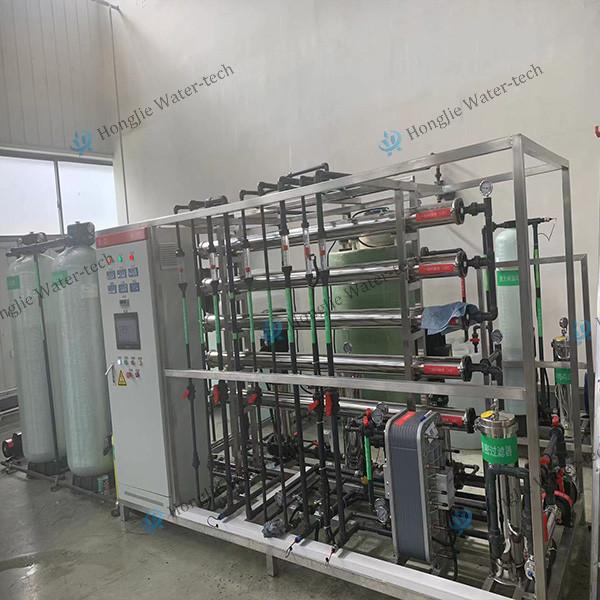

UPVC Industrial Water Filter System 150m3h Ultra Pure Water Treatment Equipment
UPVC Industrial Water Filter System 150m3h Ultra Pure Water Treatment Equipment
UPVC Industrial Water Filter System 150m3h Ultra Pure Water Treatment Equipment
UPVC Industrial Water Filter System 150m3h Ultra Pure Water Treatment Equipment
Specifications
Brand Name :
HongJie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
>=1sets
Price :
US$300000~US$310000
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Main material :
UPVC
Water Quality :
Resistivity ≥ 15 - 17 MΩ·cm
Flow Rate :
150T/H (Customizable)
Core Process :
Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components :
RO Membrane Modules, EDI Units
Electricity Supply :
380V/220V
After-Sales Service :
2-Year Warranty
Operation Mode :
Fully Automatic
High - temperature Resistance :
≤ 40°C (long - term)
TOC Leaching (ppb) :
1 - 5 (initial) → 3 - 10 (long - term)
Description

I.Overview
UPVC (unplasticized polyvinyl chloride, also known as rigid PVC) is mainly used in cost-sensitive scenarios and non-core processes in ultra-pure water systems. It serves as the “economical supporting role” in ultra-pure water systems, playing an irreplaceable role in pre-treatment and secondary water purification processes. Its core value lies in its cost-effectiveness and ease of installation.


II.Main process
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use


III.Core Application Scenarios of UPVC

Scenarios Details
Pretreatment and Primary Pure Water Transportation Raw water transportation, sand filter/carbon filter pipes, RO product water storage
Economical Ultra - pure Water Systems Medical dialysis equipment, laboratory pure water systems, photovoltaic cell cleaning


IV.Key Performance Characteristics of UPVC

Parameter UPVC
Impact on Resistivity Water quality degrades to 15 - 17 MΩ·cm after use
TOC Leaching (ppb) 1 - 5 (initial) → 3 - 10 (long - term)
High - temperature Resistance ≤ 40°C (long - term)
Installation Cost $10/m (cold glue bonding)
Service Life 8 - 10 years


V.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
