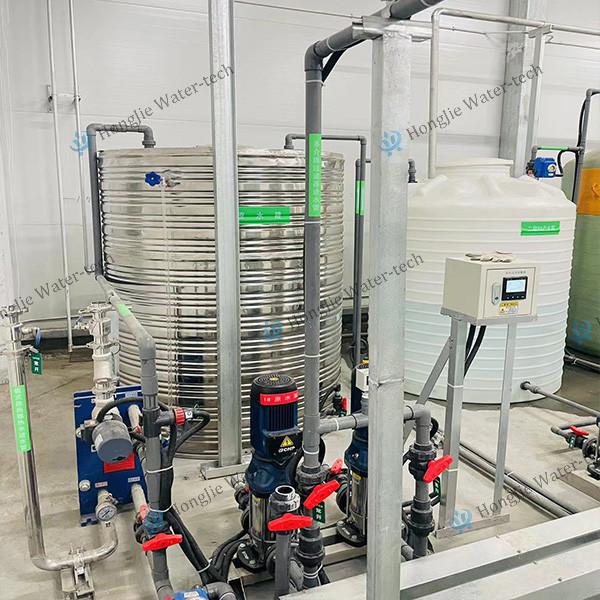

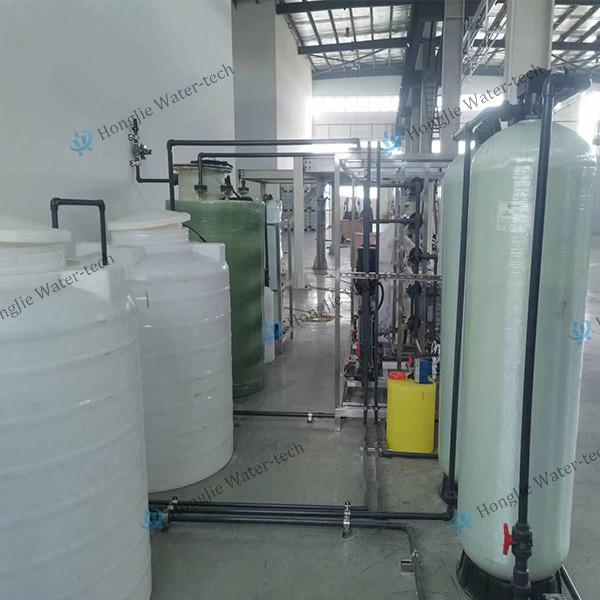

90cubic Per Hour Industrial Reverse Osmosis System + EDI Module Filter
90cubic Per Hour Industrial Reverse Osmosis System + EDI Module Filter
90cubic Per Hour Industrial Reverse Osmosis System + EDI Module Filter
90cubic Per Hour Industrial Reverse Osmosis System + EDI Module Filter
Specifications
Brand Name :
HongJie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
>=1sets
Price :
US$205400~US$211000
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Water Quality :
Resistivity ≥15-18.25 MΩ·cm
Flow Rate :
90m3h (Customizable)
Core Process :
Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components :
RO Membrane Modules, EDI module
Electricity Supply :
380V/220V
After-Sales Service :
2-Year Warranty
Operation Mode :
Fully Automatic
Product Features :
Stable Water Quality,Low Operation Cost,Reliable Performance
Description

I.Overview
EDI (Electrodeionization) is a water treatment technology that combines ion exchange resin with electrodialysis membranes to continuously produce high-purity water (with resistivity as high as 18 MΩ·cm or more). It is a core component of ultra-pure water production. “EDI marks the transition of ultra-pure water systems from ‘chemical regeneration’ to ‘continuous physical purification,’” and in the semiconductor/pharmaceutical industries, EDI has replaced mixed-bed systems as an industry standard (SEMI F63).


II.Main process
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use


III.Core Components and Materials of EDI

Component Material and Function Industry Standard
Ion Exchange Resin Nuclear - grade granular resin (e.g., Purolite® NRW1600), particle size 0.6 - 0.7 mm, exchange capacity ≥ 1.8 eq/L ASTM D1782
Ion Exchange Membrane Perfluorosulfonic acid membrane + perfluoroquaternary ammonium membrane (e.g., DuPont Nafion®), ion selectivity > 98% SEMI F73
Diaphragm Flow Channel Food - grade PP or PVDF, thickness 0.8 - 1.0 mm, turbulent flow design to prevent scaling FDA 21 CFR 177
Electrode Titanium - plated ruthenium anode/stainless steel cathode, corrosion - resistant current density > 100 mA/cm² ISO 9001


IV.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
