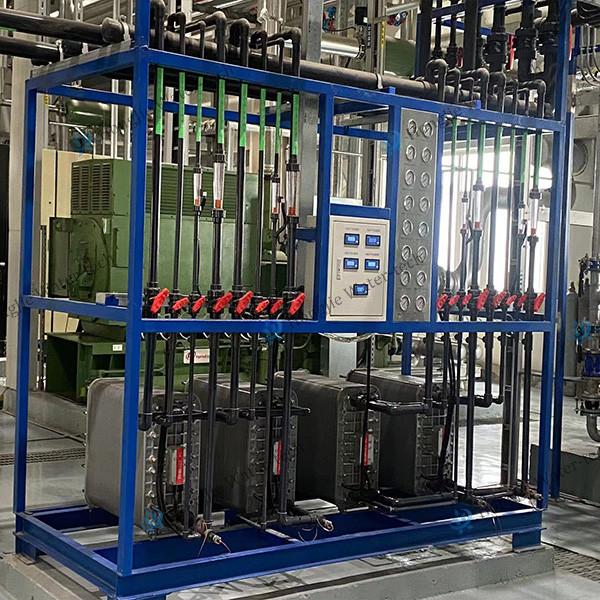

316 Stainless Steel Water Treatment Plant 30tons/H Industrial Ultrapure Water Systems
316 Stainless Steel Water Treatment Plant 30tons/H Industrial Ultrapure Water Systems
316 Stainless Steel Water Treatment Plant 30tons/H Industrial Ultrapure Water Systems
316 Stainless Steel Water Treatment Plant 30tons/H Industrial Ultrapure Water Systems
Specifications
Brand Name :
HongJie
Certification :
ISO 14001,ISO 9001,CE,EPA
Place of Origin :
Shenzhen,China
MOQ :
>=1sets
Price :
US$73200~US$74000
Payment Terms :
L/C,D/P,T/T,Western Union
Supply Ability :
>300sets/month
Delivery Time :
1-7working days(depand on raw materials stocking)
Packaging Details :
export standard wooden case
Material :
316 Stainless steel
Flow Rate :
30m³/H (Customizable)
Core Process :
Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components :
RO Membrane Modules, EDI Units
Electricity Supply :
380V/220V
After-Sales Service :
2-Year Warranty For Standard Equipment
Operation Mode :
Fully Automatic
Product Features :
Stable Water Quality,Low Operation Cost,Reliable Performance
Description

I.Overview
Stainless steel is a critical structural material in ultra-pure water (UPW) systems, with its performance directly impacting water purity and system reliability. In industries such as semiconductors and pharmaceuticals, it must simultaneously meet ultra-high cleanliness standards and zero contamination release requirements. Stainless steel in ultra-pure water systems represents the “art of balancing cleanliness and strength.” 316L-EP grade stainless steel, with its ultra-low leaching and extreme surface finish, remains the gold standard for semiconductor/pharmaceutical UPW systems.

II.Process
Raw Water → Raw Water Tank → Booster Pump → Flocculant/Reducer Dosing → Activated Carbon Filter → Ultrafiltration (UF) → Scale Inhibitor Dosing → Security Filter → 1st Stage High-Pressure Pump → 1st Stage RO → pH Adjustment → Intermediate Tank → 2nd Stage High-Pressure Pump → 2nd Stage RO → Purified Water Tank → EDI Booster Pump → UV Sterilizer → Cartridge Filter → EDI System → Ultra-Pure Water Tank → Transfer Pump → TOC Removal Unit → Polishing Resin → Final Filter → Point of Use

III.Core applications of 316 stainless steel

Category Sub - category Details
1. Distribution Pipeline System Pure Water Conveyance 316L stainless steel pipelines are used to convey ultra - pure water with 18.2 MΩ·cm, avoiding ion leaching and pollution.
Circulation System Maintain a constant flow rate (> 1 m/s) to prevent microbial growth. The pipe wall requires electrolytic polishing (Ra ≤ 0.5 μm).
2. Water Storage Tanks and Pressure Vessels Ammonia - free Water Tank 316L inner tank + argon - shielded welding to isolate the ingress of CO₂/O₂.
Membrane Shell and Filter Shell Pressure - bearing RO/UF membrane shells need to withstand 0.6 - 1.0 MPa without metal ion leaching.
3. Process Equipment Contact Components Pumps, Valves and Sensors Diaphragm pump bodies, conductivity flow cells all use ultra - low carbon stainless steel (316L).
Mixed Bed Resin Columns Directly contact high - purity resin. The material must meet the SEMI F19 standard.

IV.Parameters

Characteristic 304 Stainless Steel 316L Stainless Steel (Recommended)
Carbon Content ≤0.08% ≤0.03% (Ultra - low Carbon)
Molybdenum Content None 2.0% - 2.5% (Core for Corrosion Resistance)
Iron Ion Leaching >0.5 ppb <0.1 ppb (80°C/24h Static Test)
Intergranular Corrosion Risk Sensitive in Welded Areas Ultra - low Carbon Design to Thoroughly Avoid
Applicable Standard ASTM A240 SEMI F19 (Semiconductor - Grade Certification)

V.Here is a guideline for you to get a proper quotation
Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
