24dBi Grid Parabolic High Gain Wireless Antenna Long distance U Clamp 16dB 2.4G
24dBi Grid Parabolic High Gain Wireless Antenna Long distance U Clamp 16dB 2.4G
24dBi Grid Parabolic High Gain Wireless Antenna Long distance U Clamp 16dB 2.4G
24dBi Grid Parabolic High Gain Wireless Antenna Long distance U Clamp 16dB 2.4G
24dBi Grid Parabolic High Gain Wireless Antenna Long distance U Clamp 16dB 2.4G
24dBi Grid Parabolic High Gain Wireless Antenna Long distance U Clamp 16dB 2.4G
24dBi Grid Parabolic High Gain Wireless Antenna Long distance U Clamp 16dB 2.4G
24dBi Grid Parabolic High Gain Wireless Antenna Long distance U Clamp 16dB 2.4G
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSGR-2400-24
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product name :
High Gain Wireless Antenna
Application :
Long-distance transmission/2.4GHZ WIFI WILAN system
Frequency rang-MHz :
2400-2483
Bandwidth -MHz :
83
Gain -dBi :
24
Polarization :
Horizontal or Vertical
Description


24dBi Grid Parabolic High Gain Wireless Antenna Long distance U Clamp 16dB 2.4G


Feature:

● UV stable coat finish
● Can be installed H or V
● High Gain, Larger F/B Ratio
● Die cast aluminum reflector


Application:
● 2.4GHZ WIFI WILAN system
● Long-distance transmission
● Wireless bridge

Specification

Model NO

RSGR-2400-24

Electric Spec

Frequency rang-MHz

2400-2483

Bandwidth -MHz

83

Gain -dBi

24

beam width -°

H:14 V:10

F/B RATIO-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

N-Type or Customized

Mechanical Specification

Size -mm

600*900

Cable length-m

0.3

Antenna weight-kg

3.2

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

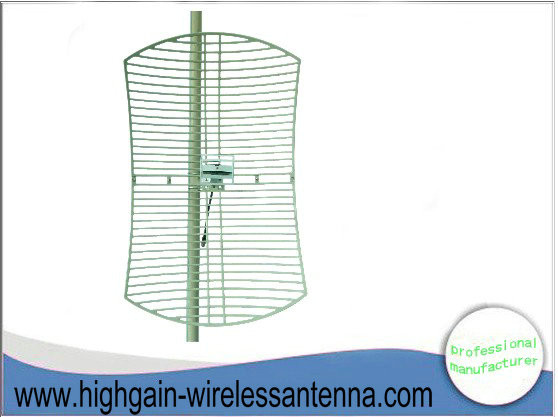

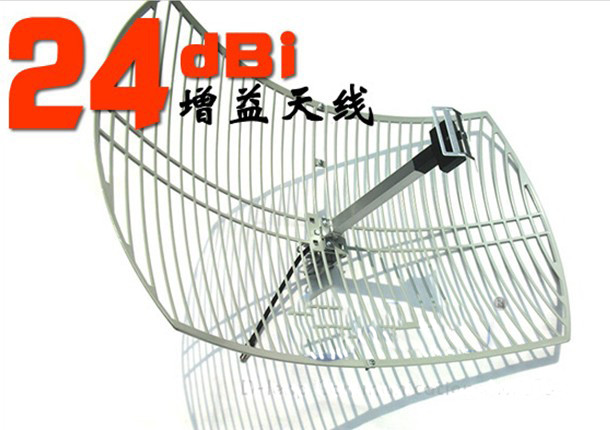

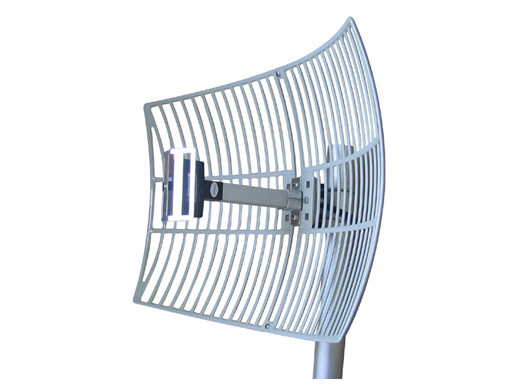

Antenna details :

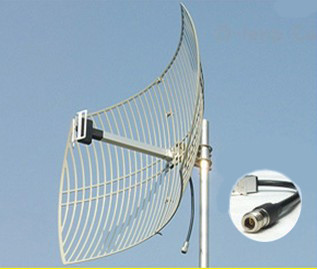

Application Example :




Install demonstration




View of us ;























































Product tags

24 dbi parabolic grid antenna

,

4g antenna parabolic

,

wifi grid antenna 24dbi
