12dbi WIFI WLAN 2.4 GHz High Gain Wireless Antenna / Base Station Antenna
12dbi WIFI WLAN 2.4 GHz High Gain Wireless Antenna / Base Station Antenna
12dbi WIFI WLAN 2.4 GHz High Gain Wireless Antenna / Base Station Antenna
12dbi WIFI WLAN 2.4 GHz High Gain Wireless Antenna / Base Station Antenna
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSMP-2400-12
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
High Gain Wireless Antenna
Feature :
High Gain,Dual Polarization
Frequency rang :
2400-2500
Polarization :
Vertical and Horizontal
Radome material :
UPVC
Connector model :
2×N Female
Description

12dbi WIFI WLAN 2.4 GHz High Gain Wireless Antenna / Base Station Antenna


Feature:

● High Gain
● Full day for working
● Optimized dimension
● Dual Polarization

Application:
● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● Base station &Repeater station system


Specification

RSMP-2400-12

Electric Specifications

Frequency rang

2400-2500

Polarization

Vertical and Horizontal

Gain(DBi)

2×12

Beamwidth(0°)

H:65 V:30

F/B ratio(DB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

200

Lightning protection

DC ground

Mechanical Specifications

Connector model

2×N Female

antenna size (mm)

260*114*54

Packing size(mm)

290*200*150

Antenna weight (kg)

2

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～15

Working Temperature(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

50～75

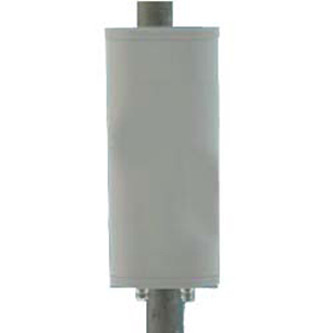

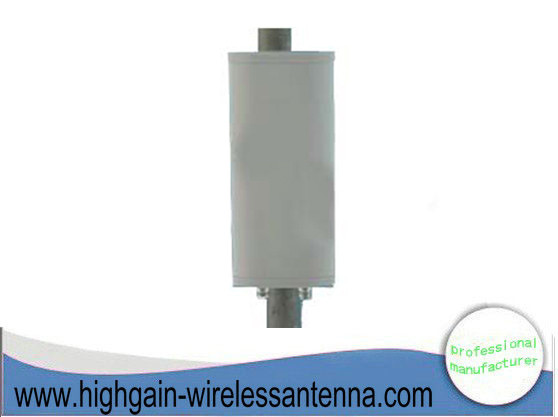

Antenna details :



















Application Example :




Install demonstration




View of us ;
