Dual Polarization High Gain Wireless Antenna Panel For 2.4 GHz WIFI WLAN System
Dual Polarization High Gain Wireless Antenna Panel For 2.4 GHz WIFI WLAN System
Dual Polarization High Gain Wireless Antenna Panel For 2.4 GHz WIFI WLAN System
Dual Polarization High Gain Wireless Antenna Panel For 2.4 GHz WIFI WLAN System
Dual Polarization High Gain Wireless Antenna Panel For 2.4 GHz WIFI WLAN System
Dual Polarization High Gain Wireless Antenna Panel For 2.4 GHz WIFI WLAN System
Dual Polarization High Gain Wireless Antenna Panel For 2.4 GHz WIFI WLAN System
Dual Polarization High Gain Wireless Antenna Panel For 2.4 GHz WIFI WLAN System
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSDP-2400-15
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
High Gain Wireless Antenna
Feature :
High Gain,Dual Polarization
Frequency rang :
2400-2500
Polarization :
±45°
Gain(DBi) :
2×15
Beamwidth(0°) :
H:90 V:18
Description


Dual Polarization High Gain Wireless Antenna Panel For 2.4 GHz WIFI WLAN System


Feature:

● High Gain
● Full day for working
● Optimized dimension
● Dual Polarization


Application:
● 2.4 GHz WIFI WLAN System
● 2.4GHz ISM applications
● Public wireless hot signal coverage
● Base station &Repeater station system


Specification

RSDP-2400-15

Electric Specifications

Frequency rang

2400-2500

Polarization

±45°

Gain(DBi)

2×15

Beamwidth(0°)

H:90 V:18

F/B ratio(DB)

≥25

Input Impedance(Ω)

50

VSWR

≤1.5

Max power(W)

200

Lightning protection

DC ground

Mechanical Specifications

Connector model

2×N Female

antenna size (mm)

650*175*80

Packing size(mm)

680*200*150

Antenna weight (kg)

4

Radome material

UPVC

Radome color

Gray

Mechanical tilt(°)

0～15

Working Temperature(°c)

-40～60

Rated Wind Velocit(m/s)

60

Pole diamete(mm)

50～75

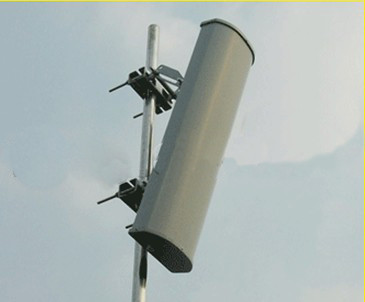

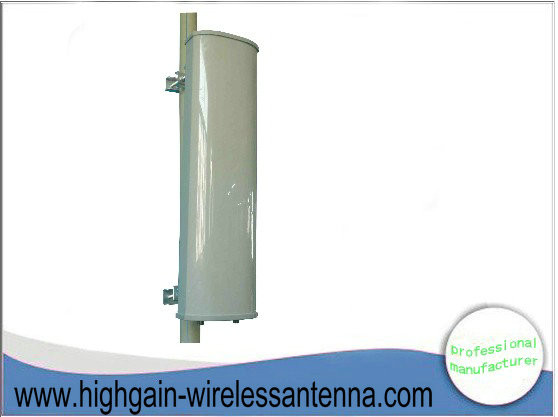

Antenna details :

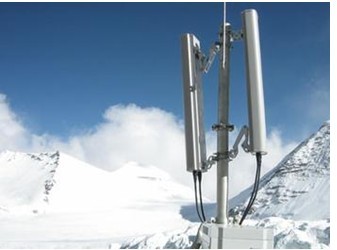

Application Example :

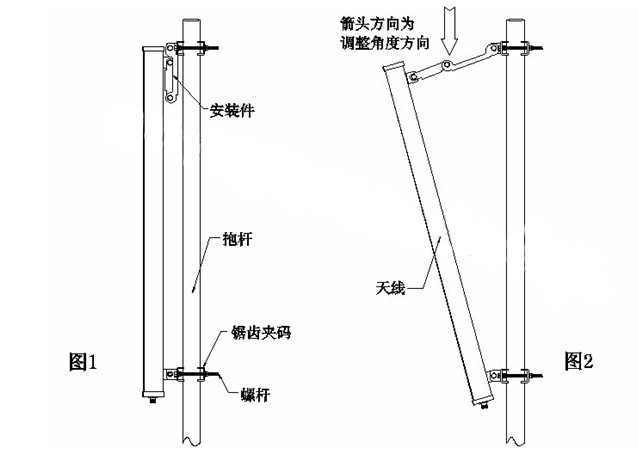

Install demonstration




View of us ;
