2.4GHZ ISM High Gain Wireless Antennas / 2400 MHz - 2483 MHz Flat Panel Antenna
2.4GHZ ISM High Gain Wireless Antennas / 2400 MHz - 2483 MHz Flat Panel Antenna
2.4GHZ ISM High Gain Wireless Antennas / 2400 MHz - 2483 MHz Flat Panel Antenna
2.4GHZ ISM High Gain Wireless Antennas / 2400 MHz - 2483 MHz Flat Panel Antenna
2.4GHZ ISM High Gain Wireless Antennas / 2400 MHz - 2483 MHz Flat Panel Antenna
2.4GHZ ISM High Gain Wireless Antennas / 2400 MHz - 2483 MHz Flat Panel Antenna
2.4GHZ ISM High Gain Wireless Antennas / 2400 MHz - 2483 MHz Flat Panel Antenna
2.4GHZ ISM High Gain Wireless Antennas / 2400 MHz - 2483 MHz Flat Panel Antenna
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSW-2400-18
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
High Gain Wireless Antenna
Feature :
High Gain,Lower VSWR, corrosion resistance
Application :
2.4GHZ ISM application,Wireless AP , wireless adapter
Polarization :
Vertical
Connector model :
N Female
Size -mm :
305*305*20
Description

2.4GHZ ISM High Gain Wireless Antennas / 2400 MHz - 2483 MHz Flat Panel Antenna

Application:


● 2.4GHZ WLAN System
● 2.4GHZ ISM application
● WIFI Telecommunication system
● Wireless AP , wireless adapter

Feature:


● Good appearance
● Durable, corrosion resistance
● Full day for working ,waterproof
● Optimized dimension
● High Gain, Lower VSWR, Strongly Anti-interference

Specification

Model NO

RSW-2400-18

Electric Spec

Frequency rang-MHz

2400-2483

Bandwidth -MHz

83

Gain -dBi

18

beam width -°

H:23 V:23

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

305*305*20

Antenna weight-kg

1.1

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

hold in the pole

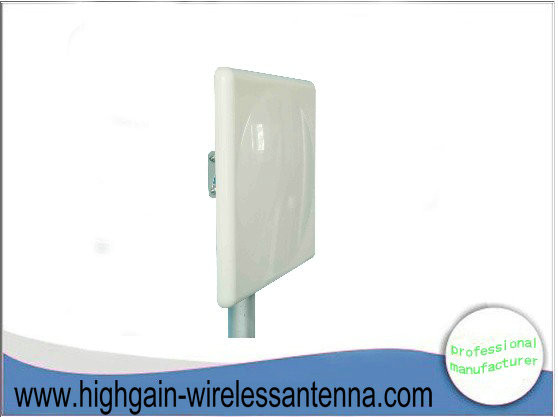

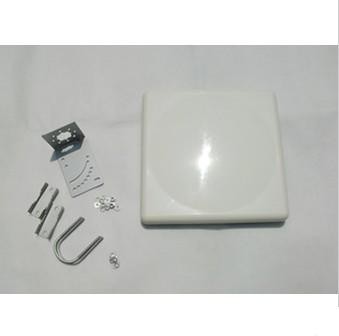

Antenna details :

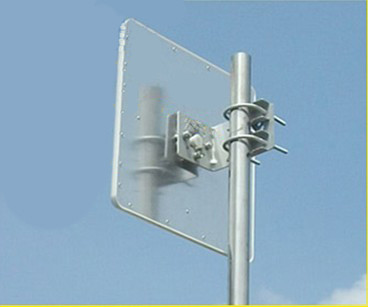

Application Example :

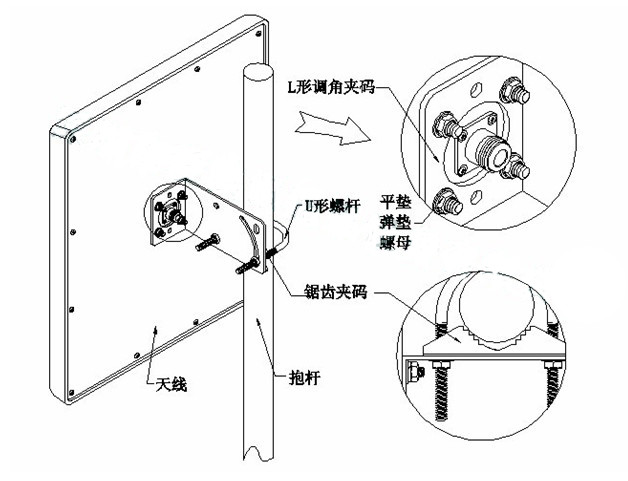

Install demonstration

View of us ;

Product tags

helical antenna 2.4ghz

,

pcb antenna 433mhz

,

dual antenna
