Point to point Outdoor Yagi Wireless Antenna High Gain Directional 18DBI
Point to point Outdoor Yagi Wireless Antenna High Gain Directional 18DBI
Point to point Outdoor Yagi Wireless Antenna High Gain Directional 18DBI
Point to point Outdoor Yagi Wireless Antenna High Gain Directional 18DBI
Point to point Outdoor Yagi Wireless Antenna High Gain Directional 18DBI
Point to point Outdoor Yagi Wireless Antenna High Gain Directional 18DBI
Point to point Outdoor Yagi Wireless Antenna High Gain Directional 18DBI
Point to point Outdoor Yagi Wireless Antenna High Gain Directional 18DBI
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSY-2400-18
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
High Gain Wireless Antenna
Feature :
High Gain,Aluminum Alloy frame
Frequency rang-MHz :
2400-2483
Bandwidth -MHz :
83
Gain -dBi :
18
Application :
2.4GHZ WLAN System,Point to point and point to point multipoint transmission
Description


Point to point Outdoor Yagi Wireless Antenna High Gain Directional 18DBI


Feature:
● High Gain
● Aluminum Alloy frame
● Full day for working
● Optimized dimension
● Optional installation H or V


Application:
● 2.4GHZ WLAN System
● Point to point and point to point multipoint transmission system
● Wireless bridge ,Terminal antenna
● Wireless AP , wireless adapter

Specification

Model NO

RSY-2400-18

Electric Spec

Frequency rang-MHz

2400-2483

Bandwidth -MHz

83

Gain -dBi

18

element

18

beam width -°

H:30 V:28

F/B Ratio-dB

≥16

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Horizontal or Vertical

Max power -W

100

Lightning protection

DC ground

Connector model

SMA female or others

Mechanical Specification

Size -mm

580*70*44

Cable length-m

1

Antenna weight-kg

0.35

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Clamp

U

Pole diameter -mm

Φ40～Φ50

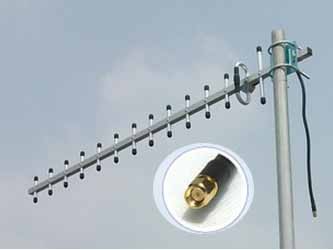

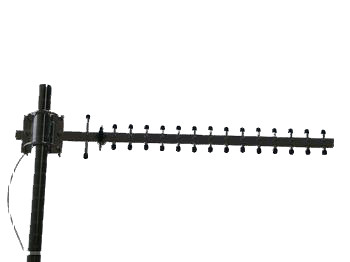

Antenna details:




Application Example :

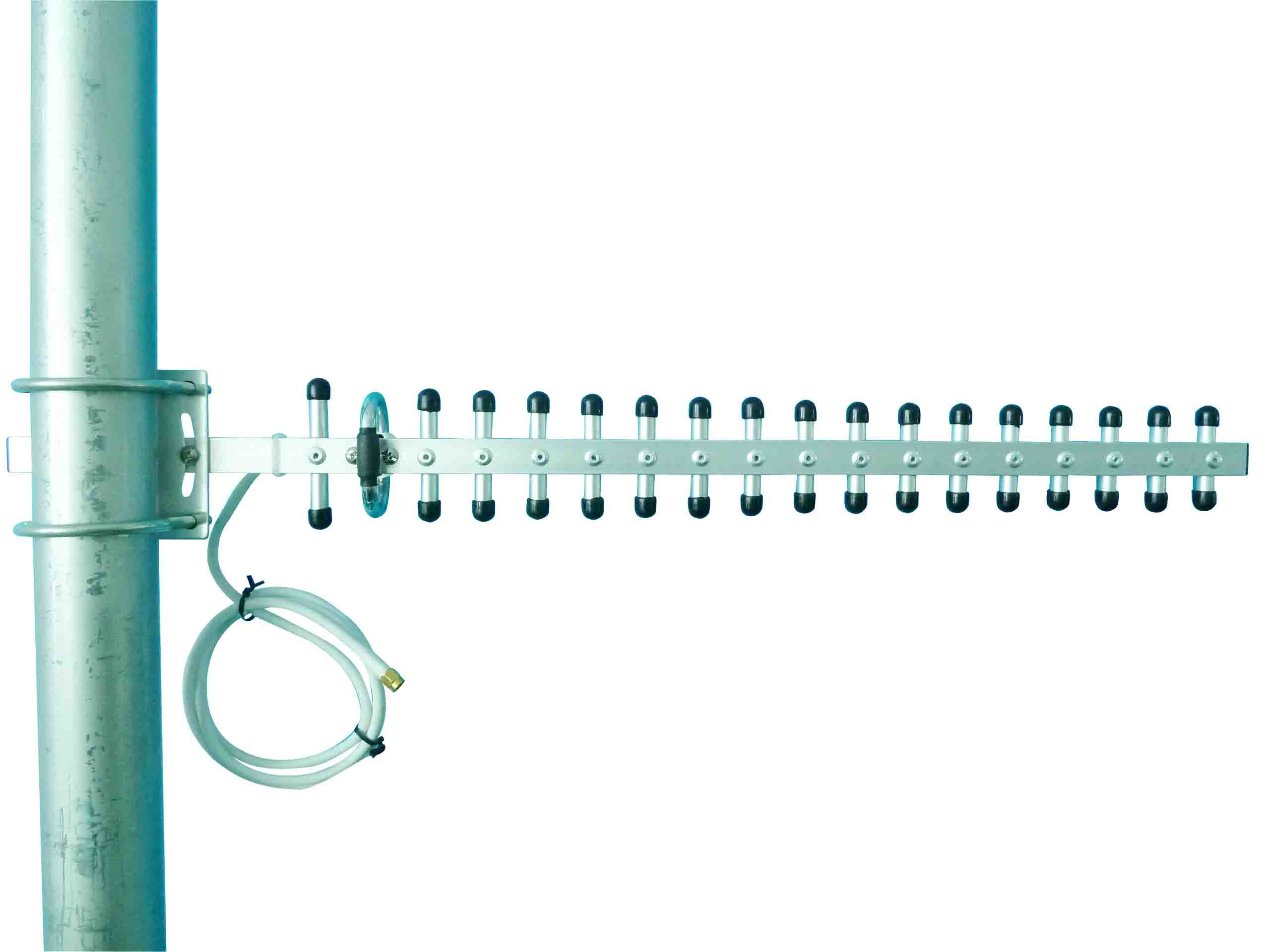

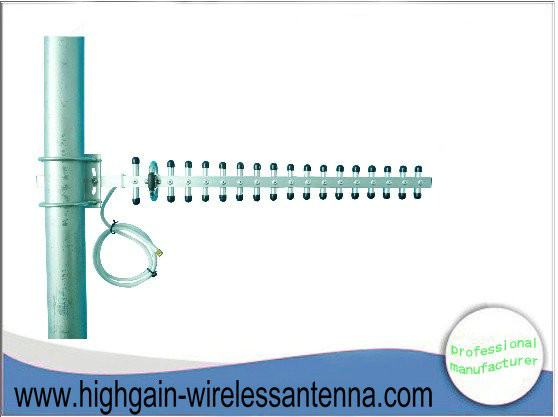

Install demonstration :



View of us :
