Vertical Multiband Log-periodic Hi-Gain Wireless Antenna With N Female Connector
Vertical Multiband Log-periodic Hi-Gain Wireless Antenna With N Female Connector
Vertical Multiband Log-periodic Hi-Gain Wireless Antenna With N Female Connector
Vertical Multiband Log-periodic Hi-Gain Wireless Antenna With N Female Connector
Vertical Multiband Log-periodic Hi-Gain Wireless Antenna With N Female Connector
Vertical Multiband Log-periodic Hi-Gain Wireless Antenna With N Female Connector
Vertical Multiband Log-periodic Hi-Gain Wireless Antenna With N Female Connector
Vertical Multiband Log-periodic Hi-Gain Wireless Antenna With N Female Connector
Specifications
Place of Origin :
Shenzhen China
Brand Name :
Runshine
Certification :
ROSH
Model Number :
RSL-800-2500-11
MOQ :
100pcs
Delivery Time :
1 week after received the payment
Payment Terms :
TT in advance
Product Name :
High Gain Wireless Antenna
Feature :
High Gain,Provide with mount kits
Application :
GSM/CDMA/PCS/3G/WLAN system
Frequency rang-MHz :
806～960/1710～2500
Bandwidth -MHz :
154/790
Gain -dBi :
10/11
Description



Vertical Multiband Log-periodic Hi-Gain Wireless Antenna With N Female Connector


Application:
● GSM/CDMA/PCS/3G/WLAN system
● 800-2500MHZ frequency band
● Wireless transmission

Feature:

● Good appearance
● Durable corrosion resistance
● Provide with mount kits
● Optimized dimension
● Designed by board band technology

Specification

Model NO

RSL-800-2500-11

Electric Spec

Frequency rang-MHz

806～960/1710～2500

Bandwidth -MHz

154/790

Gain -dBi

10/11

beam width -°

H:65/50 V:55/40

VSWR

≤1.5

Input Impedance-Ω

50

Polarization

Vertical

Max power -W

50

Lightning protection

DC ground

Connector model

N Female

Mechanical Specification

Size -mm

445*210*65

Antenna weight-kg

0.91

Working Temperature -°c

-40～60

Rated Wind Velocity-m/s

60

Radome color

white

Mounting way

hold in the pole

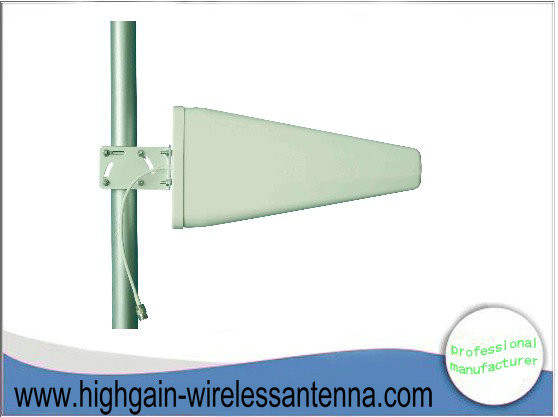

Antenna details :

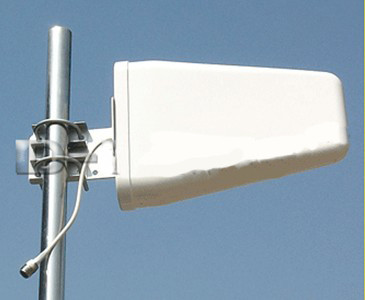

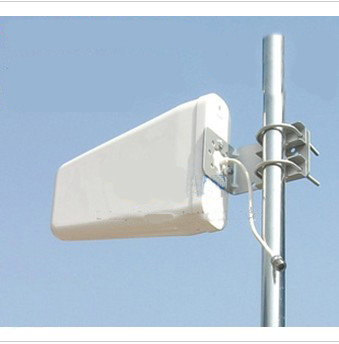

Application Example :

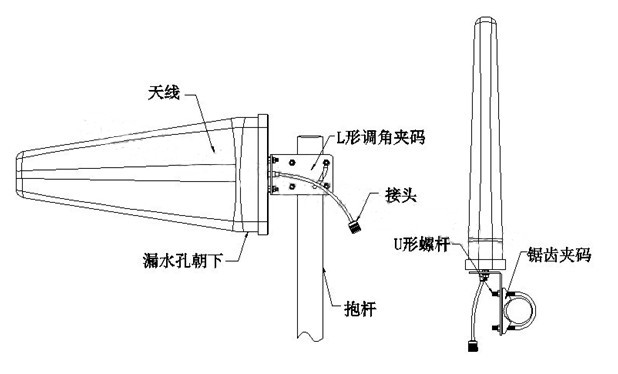

Install demonstration




View of us ;
