Low Oxidation Effect 200Watt YAG Laser Beam Welding Machine With Crane Arm
Low Oxidation Effect 200Watt YAG Laser Beam Welding Machine With Crane Arm
Low Oxidation Effect 200Watt YAG Laser Beam Welding Machine With Crane Arm
Low Oxidation Effect 200Watt YAG Laser Beam Welding Machine With Crane Arm
Low Oxidation Effect 200Watt YAG Laser Beam Welding Machine With Crane Arm
Low Oxidation Effect 200Watt YAG Laser Beam Welding Machine With Crane Arm
Specifications
Brand Name :
Herolaser
Model Number :
ML-WY-M02-200W
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets/month
Delivery Time :
10-15 days
Packaging Details :
Wooden case package: 1680*500*1500mm/560kg
Average laser power :
200W
Max energy of single pulse :
75J
Pulse width :
0-20ms
Laser welding frequency :
0.5 -100HZ
Spot size range :
0.2-2mm
Welding wire :
0.1-0.8mm
Laser source :
YAG laser
Power Consumption :
6000W
Description

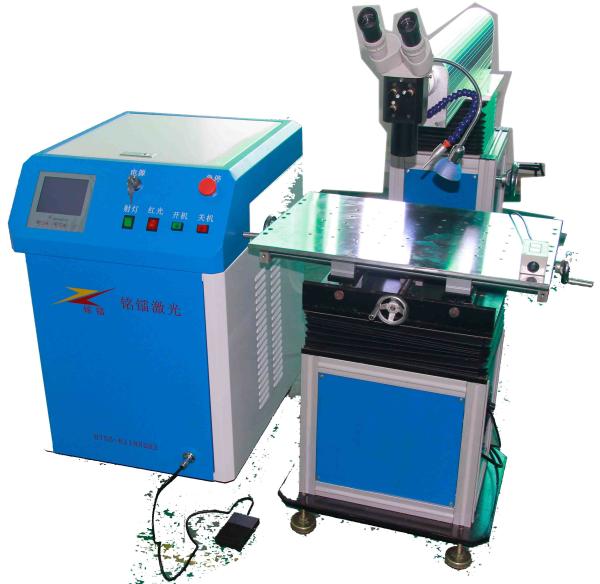

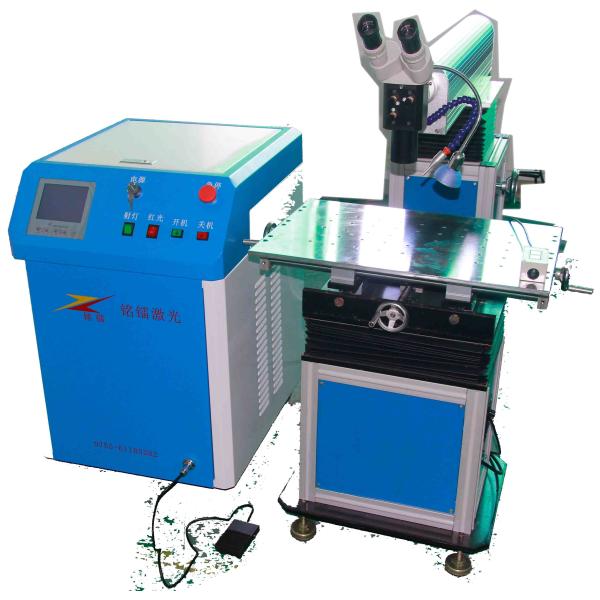

200 Watt Mould Repairing Laser Welding Machine with Crane Arm Simple to Maintain

Introduction of machine:
The solder joint diameter is only 0.1-3.0mm, with high precision and precision;
The YAG laser has a wavelength of 1064nm and is less harmful to human skin than other lasers
Small heating range, to ensure that the workpiece is not deformation, no foaming
It makes up for the shortcomings of traditional argon arc welding and cold welding in repairing fine surface. Low oxidation effect, workpiece color change freely;
Welding operations can be performed in small Spaces or deep space without damage to the surrounding walls. There are no deformations in the mold and no dents around the weld pool.
Edges will not burn when repairing details.
Argon protection, to ensure that the repair parts and the substrate does not burn, oxidation.
Joystick control, moving workpiece, assembly, curve;
Microscope monitoring operation to ensure good vision of fine parts;
Imported welding wire, with a variety of imported mold materials, can achieve polishing and modeling.
In material, manpower, time and other aspects can greatly save the processing cost.
Advantages and features:

It has flexible angle and position adjustment ability in ten directions. Control pole controls the motor in laser head with stepless speed regulation. It is suitable for making patch welding on all molds at any angle or any position.

For large size mold, there is no need worktable, just directly conduct mold welding on the ground or at forklift truck.

It adopted British ceramic condenser cavity, it has high reflectivity and extremely long service life.

At the same time, it is equipped with precision worktable using electric lift, making small mold welding, it is also convenient and flexible.

Product parameters:
Model ML-WY-M02
Average laser power 200W
Max laser power 200W

Max energy of single pulse

75J
Laser wavelength 1064nm
Pulse width 0-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.8mm
Power Supply 220VAC ± 10% / 50-60HZ
Power Consumption 6000w
Water pressure protection ≤ 0.025MPa
Cooling water temperature ≤ 35 degrees
Temperature protection 40 degrees
Cooling water flow 10L/min
Dimensional 1400mm x 1400mm x 1500mm
Weight 340 kg
Cooling Way Water cooling
Laser Type Pulse

Applied area and materials:
Repair cracks, collapsed horn, touched edge and damaged sealing side, welding on horniness material (~HRC60). This machine’s arm could be move up and down, front and backwards, left and right side.

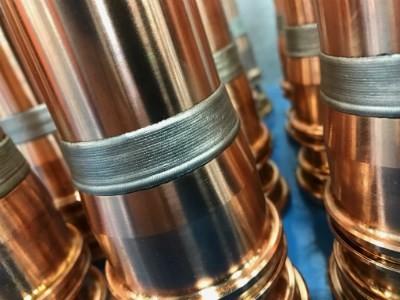

Samples for reference:
Low Oxidation Effect 200Watt YAG Laser Beam Welding Machine With Crane Arm
FAQ
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.
