Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps
Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps
Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps
Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps
Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps
Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps
Specifications
Brand Name :
Herolaser
Model Number :
ML-WY-M02-400W
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets/month
Delivery Time :
10-15 days
Packaging Details :
Wooden case package: 1680*500*1500mm/560kg
Power Supply :
380VAC ± 10% / 50-60HZ
Output power :
400W
Dimension :
1000mm x 600mm x 1500mm
Net weight :
560kg
Laser source :
YAG laser
Welding wire :
0.1-0.8mm
Laser Type :
Pulse
Spot size range :
0.2-2mm
Description

Incredibly Durable Mould Laser Welding Machine Mold Repair Laser Welders

Product introduction:

Welding on large size precision injection, die-casting, mould repairing, patch welding on sand hole or air hole in beryllium copper mould insert, aluminum casting, copper casting, welding or patch welding processing for large size products.

Features:

  • It adopted Ceramic condenser cavity, high reflectivity, strong power, and extremely long service life.
  • It had high power laser device with 2 lamps, which meets the welding processing needs of the copper, aluminum and those moulds and products requires lot of welding works.
  • The heavy duty bearing for the worktable is provided the ability to load with heavy jobs, and meanwhile it remain the advantages of light and flexible at the same time.
  • It is equipped with 3P high power integration design cooling water system, which ensured the stability of high power welding.
Product parameters:
Model ML-WY-M02
Average laser power 400W
Max energy of single pulse 75J
Laser wavelength 1064nm
Pulse width 0-20ms
Laser welding frequency 0.5 -100HZ
Spot size range 0.2-2mm
Welding wire 0.1-0.8mm
Power Supply 380VAC ± 10% / 50-60HZ
Power Consumption 12 KW
Water pressure protection ≤ 0.025MPa
Cooling water temperature ≤ 35 degrees
Temperature protection 45 degrees
Cooling water flow 10L/min
Dimensional 1000mm x 600mm x 1500mm
Weight 560kg
Cooling Way Water cooling
Laser Type Pulse
Hazard Class 4 Class

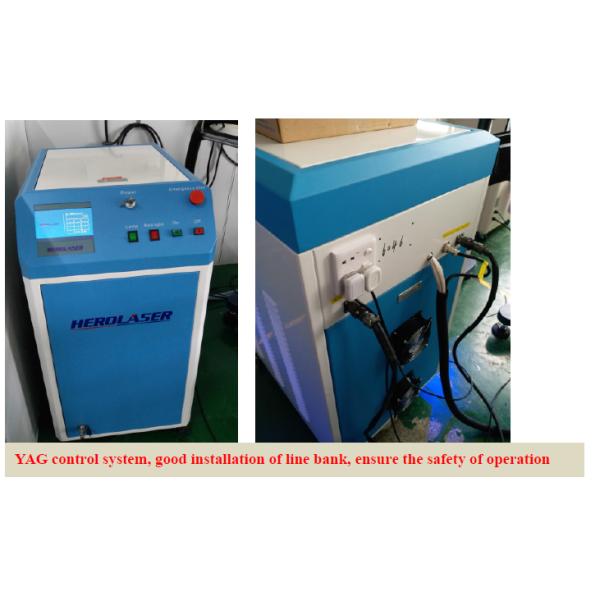

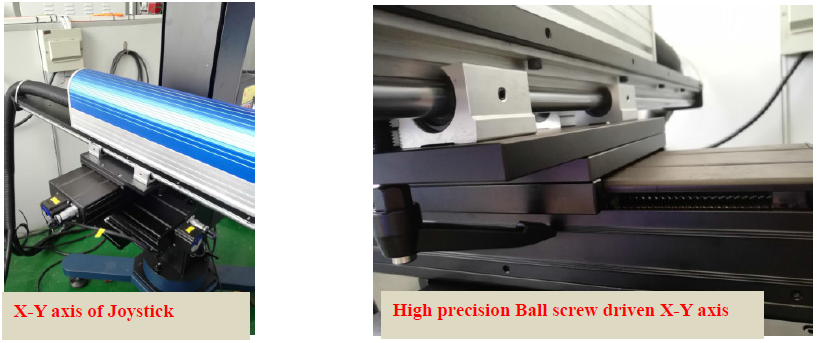

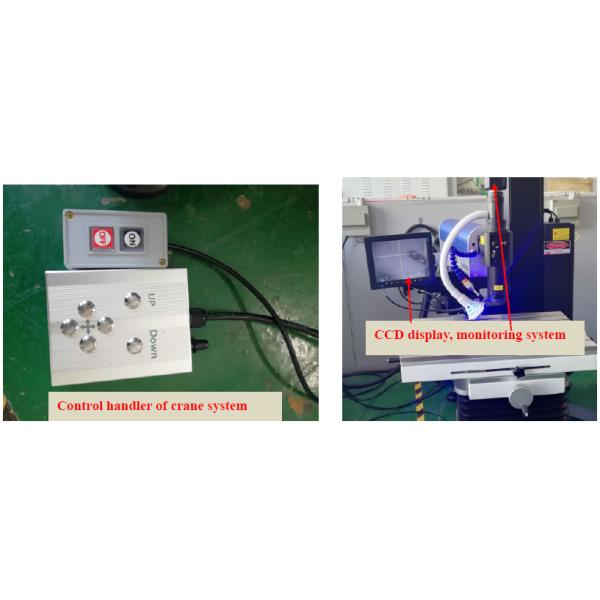

Main parts of machine:

Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps

Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps

Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps

Samples for reference:
Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps
FAQ
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.

Incredibly Durable FDA 2mm Spot Mould Laser Welding Machine With 2 Lamps
