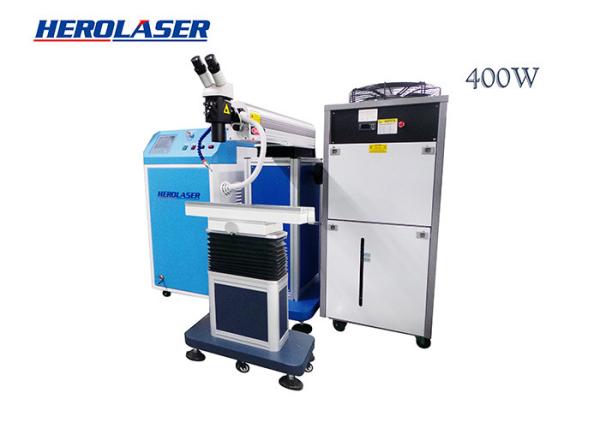

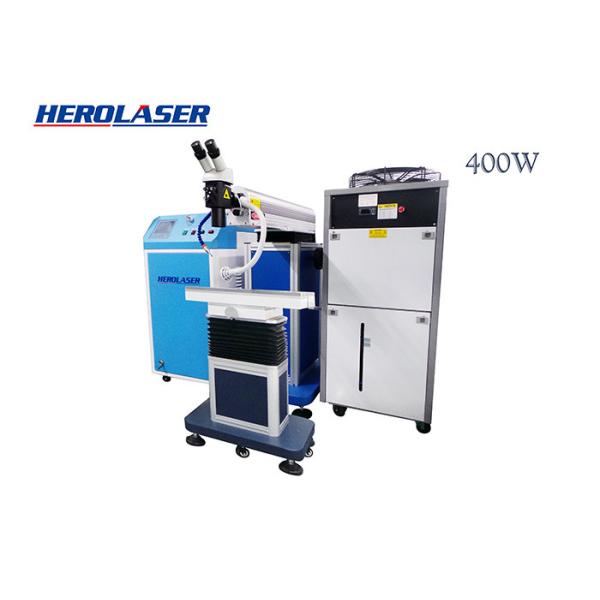

FDA Certified Mould Laser Welding Machine
FDA Certified Mould Laser Welding Machine
FDA Certified Mould Laser Welding Machine
FDA Certified Mould Laser Welding Machine
Specifications
Brand Name :
Herolaser
Model Number :
ML-WY-M02
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets/month
Delivery Time :
10-15 days
Packaging Details :
Wooden case package: 1680*500*1500mm/560kg
Laser source :
YAG laser
Laser wevelength :
1064nm
Max Energy per pulse (Joule) :
15J
Pulse Duration (sec) :
0.1S
Focal Length (mm) :
90mm
Pulse repetition frequency (Hz) :
≤50Hz
Mode (CW or Pulse) :
Pulse
Exit Laser beam or  beam diameter at  Lens (mm) :
0.2-2mm
Description

Ceramic Condenser Cavity Mould Laser Welding Machine 1064nm Wavelength

Product introdution:
While TIG(tungsten inert gas) welding may be the preferred option for many factory mold welding, high power pulsed laser welding is a high quality process that can provide a repaired mold that behaves as if it were new. Repairing a worn mold is always cheaper than replacing it.
Plastics processors will find that the alternative method of pulsed laser welding provides better results with less damage to the base material, so the mold will produce better quality parts and significantly longer service life after repair.
Advantages and features:
  • Ability for molds to be repaired multiple times
  • Quicker repair of molds with much faster machining or bench time
  • Portable and flexible to reach almost any feature, even in large molds
  • Less expensive from a total-cost perspective and lasts longer

Product parameters:
Model No ML-WY-M02
Mode (CW or Pulse) Pulse
Power 400w
Laser gain media NO
TEMoo NA
Max Energy per pulse (Joule) 15J
Pulse Duration (sec) 0.1S
Pulse repetition frequency (Hz) ≤50Hz
Wavelength (nm) 1064NM
Minimal Spot Size (mm) 0.2MM
Exit Laser beam or beam diameter at Lens (mm) 0.2-2mm
Focal Length (mm) 90mm
Beam Divergence (mrad) NA
Maximum lasing time (sec) NA
Emergency Stop offer
Key Control offer
Beam Shutter have
Stand By Mode not offer
Activation Warning not offer
Malfunction Warning Xenon lemp,water presure,lack of presure warning
Remote Control have
Viewing Window OD not offer
Protective Housing not offer
Interlock on Protective Housing not offer
Hazard Class 4 class
Labels welding

Field of application:

It is specially designed for large mold patch welding, such as plastic mold and die-casting mold of automobile mold, shell mold, tire mold, plastic cover mold of home appliance. The equipped hanging-arm is power-driven, so it can move up and down and make 360 degree spin. It can conduct patch welding on large mold with 3 meters’ length and several tons’ weight. Besides, this equipment has pulley wheel, easy to move, it can be moved to the place nearby injection machine and conduct direct patch welding. There is no need to disassemble the mold. It is also equipped with manual worktable, which is suitable for making patch welding on middle or small size mold.

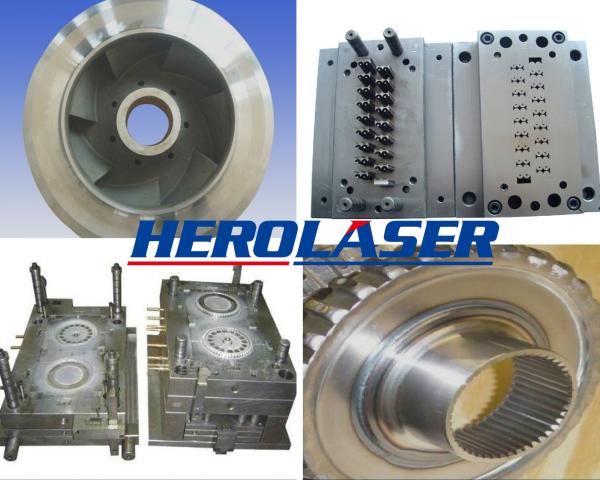

Samples for reference:
FDA Certified Mould Laser Welding Machine
FAQ
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.
