Specifications
Brand Name :
Herolaser
Model Number :
ML-WY-M01-200W
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets/month
Delivery Time :
10-15 days
Packaging Details :
Wooden case package: 1680*500*1500mm/560kg
Laser source :
YAG laser
Laser wevelength :
1064nm
Pulse Duration (sec) :
0.1S
Focal Length (mm) :
90mm
Pulse repetition frequency (Hz) :
≤50Hz
Mode (CW or Pulse) :
Pulse
Exit Laser beam or  beam diameter at  Lens (mm) :
0.2-2mm
CCD camera ,Toch screen :
Made in China
Description

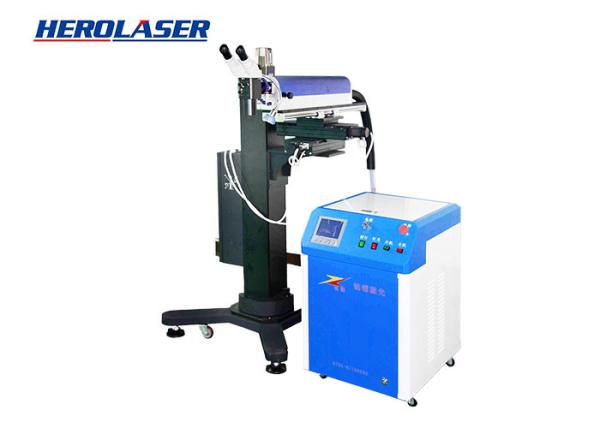

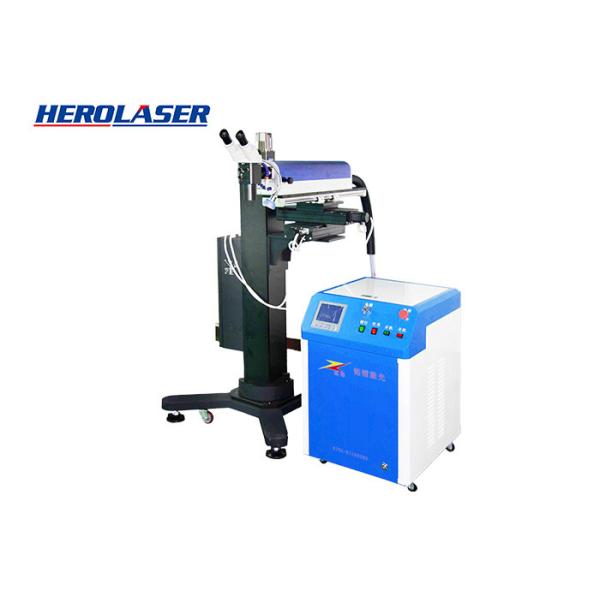

Edge Repair Mould Laser Welding Machine for Mould Mold Industry

Product introdution:
Laser mould welding machine is the use of high energy heat generated by laser moment, the special welding wire melting and connected with the damaged parts of the mould, so as to firmly connect with the raw materials, and then through the electric spark, grinding, cutting and other processes to repair the mould. On the basis of many years of experience in laser welding development, Herolaser has developed a special laser mold welding machine for the mold industry. It can accurately repair the small parts such as blisters, cracks, fragments and wear of the mold. Widely used in mobile phone, digital, automobile and other industries. Can repair all kinds of die forging steel, beryllium copper, copper and extremely hard alloy materials. Small heat affected zone, avoid mold deformation. Deep welding makes the connection firm. No repair marks are left after full melting, and there are no grooves at the connection between the raised part and the matrix.
Advantages and features:

The laser mold repair welding machine can quickly and accurately repair the pores, slag holes and shrinkage holes formed in the casting process.

Suitable for laser repair materials are ductile cast iron, gray cast iron, stainless steel, etc.

  • Small thermal deformation, small heat affected zone (suitable for processing high melting point, high hardness, unique materials)
  • It can be used for local heat treatment of ordinary parts, complex parts or small parts. It can also be done in a vacuum
  • No preheating treatment is required, and the workpiece is not annealed after welding
  • No sagging deformation, no pores, no trachoma
  • After use, it can be used to repair cracks, chipping, edges and corners, sand holes, mold wear
  • The same hardness as the substrate can be achieved after repair with the same material as the substrate
  • The toughness of the cold mold and the cutting edge of the tool can also be welded, eliminating the tedious preheating and heat preservation process of ordinary argon welding

Product configuration:
Laser source YAG laser source made by Herolaser factory
Xenon Lamp Made in China
CCD camera ,Toch screen Made in China
Cooling chiller Made in China

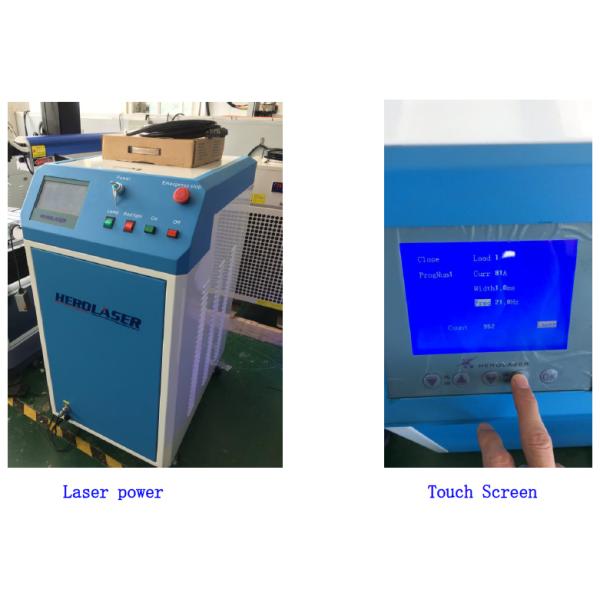

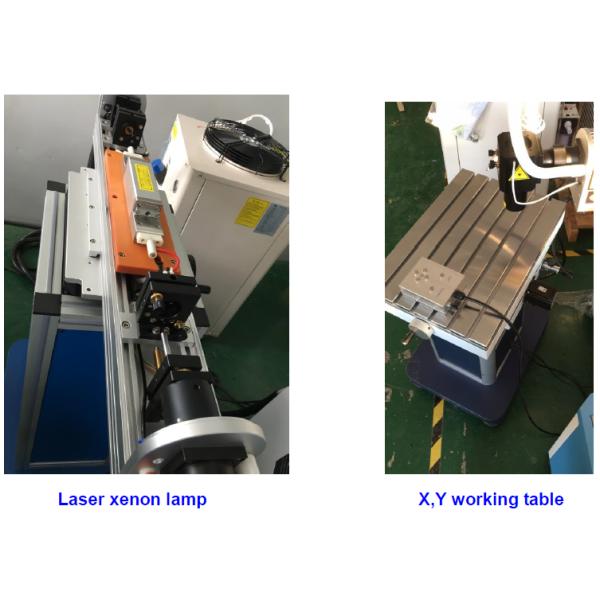

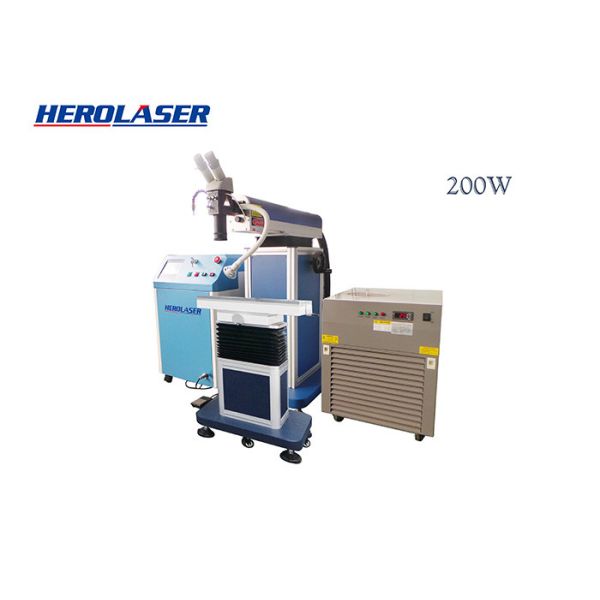

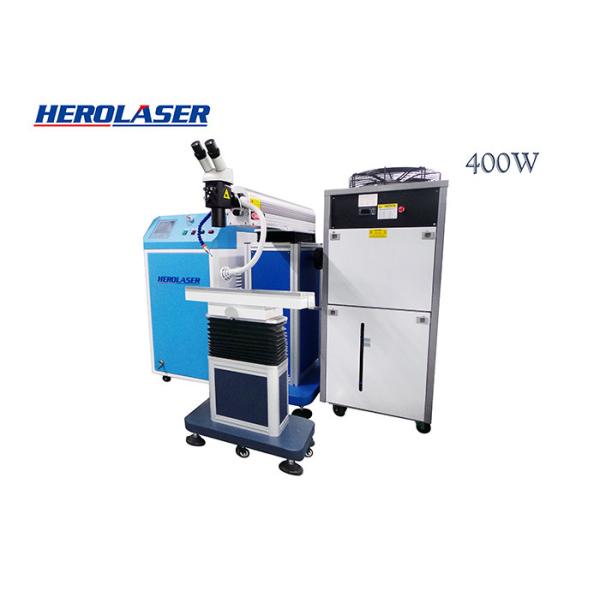

Machine main parts pictures:

Edge Repair High Energy 90mm Mould Laser Welding Machine Accurate

Edge Repair High Energy 90mm Mould Laser Welding Machine Accurate

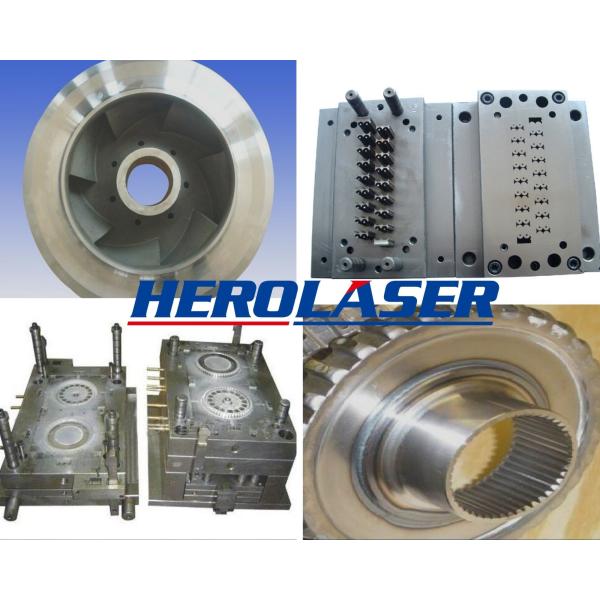

Applications:

It is suitable for repairing welding of large, medium and small plastic molds or die-casting molds in shell making, automobile, rubber, home appliances and other industries. This model is preferred by processing service providers for on-site processing of customers.

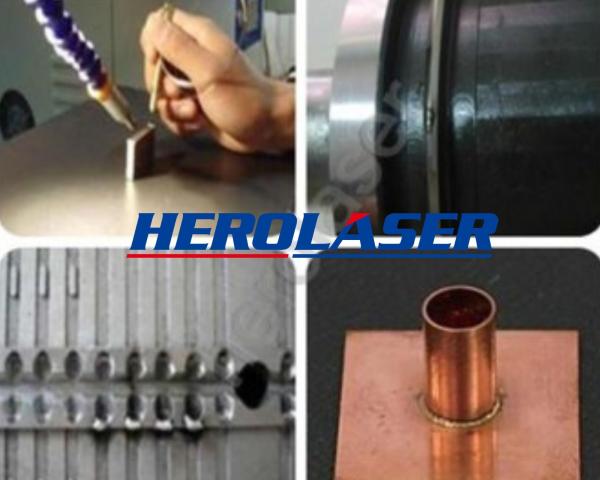

Samples for reference:
Edge Repair High Energy 90mm Mould Laser Welding Machine Accurate
FAQ
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.
