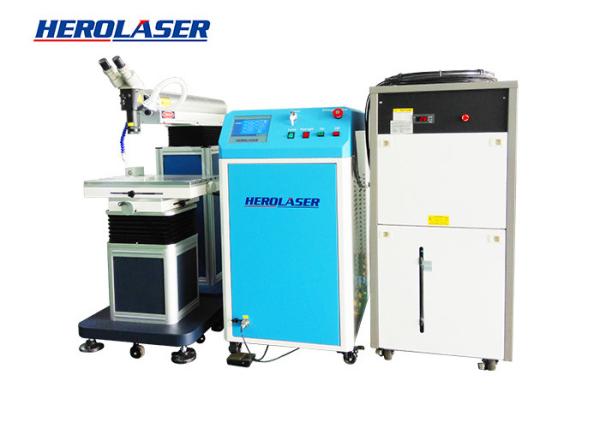

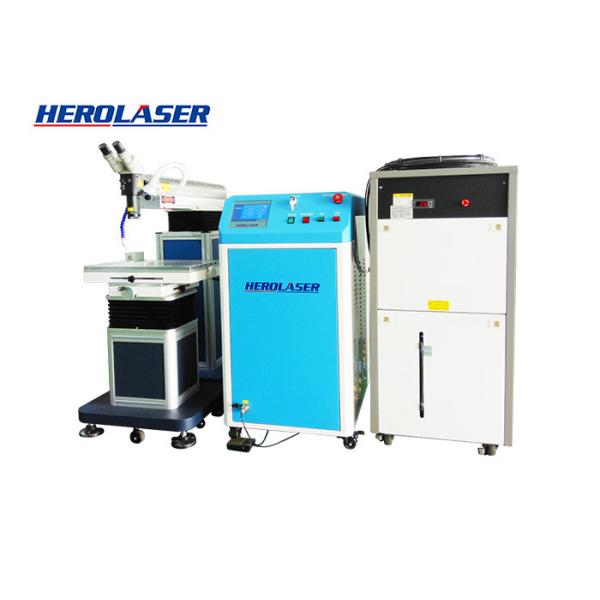

1064nm YAG Laser Welder
1064nm YAG Laser Welder
1064nm YAG Laser Welder
1064nm YAG Laser Welder
Specifications
Brand Name :
Herolaser
Model Number :
ML-WY-M01
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets/month
Delivery Time :
10-15 days
Packaging Details :
Wooden case package: 1680*500*1500mm/560kg
Laser source :
YAG laser
Laser wevelength :
1064nm
Max Energy per pulse (Joule) :
15J
Pulse Duration (sec) :
0.1S
Focal Length (mm) :
90mm
Pulse repetition frequency (Hz) :
≤50Hz
Mode (CW or Pulse) :
Pulse
Exit Laser beam or  beam diameter at  Lens (mm) :
0.2-2mm
Description

Mould Laser Welding Machine to Mould Steel, Beryllium Copper, Red Copper & Hard Alloy Material

Product introdution:
Laser mould welding machine is the use of high energy heat generated by laser moment, the special welding wire melting and connected with the damaged parts of the mould, so as to firmly connect with the raw materials, and then through the electric spark, grinding, cutting and other processes to repair the mould. On the basis of many years of experience in laser welding development, Aohua has developed a special laser mold welding machine for the mold industry. It can accurately repair the small parts such as blisters, cracks, fragments and wear of the mold. Widely used in mobile phone, digital, automobile and other industries. Can repair all kinds of die forging steel, beryllium copper, copper and extremely hard alloy materials. Small heat affected zone, avoid mold deformation. Deep welding makes the connection firm. No repair marks are left after full melting, and there are no grooves at the connection between the raised part and the matrix.
Advantages and features:
  • Ability for molds to be repaired multiple times
  • Quicker repair of molds with much faster machining or bench time
  • Portable and flexible to reach almost any feature, even in large molds
  • Less expensive from a total-cost perspective and lasts longer

Product configuration:
Laser source YAG laser source made by Herolaser factory
Xenon Lamp Made in China
CCD camera ,Toch screen Made in China
Cooling chiller Made in China

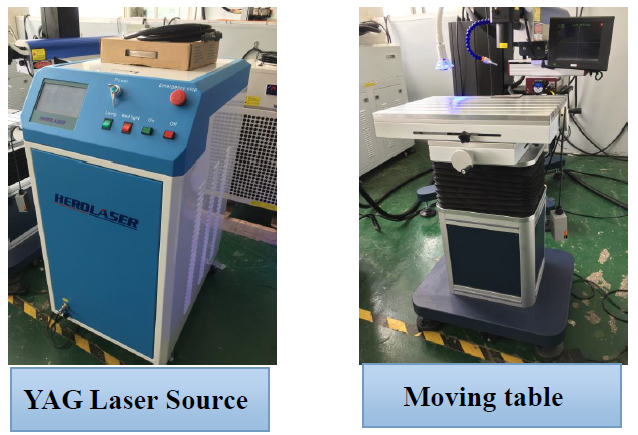

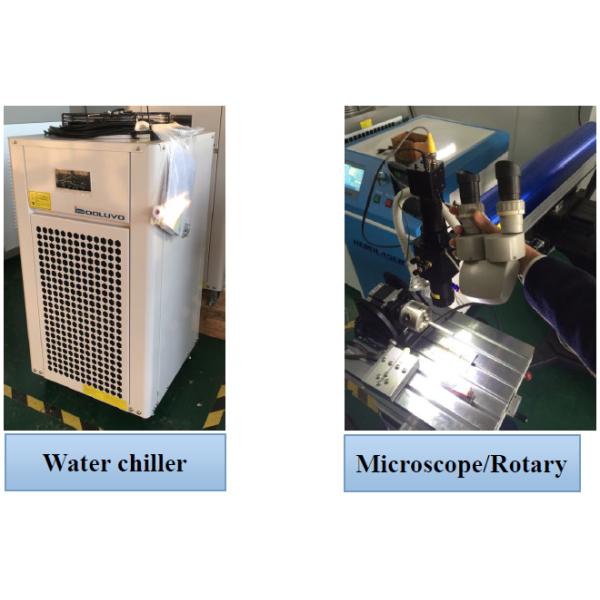

Machine main parts pictures:

1064nm YAG Laser Welder

1064nm YAG Laser Welder

Applications:

It is specially designed for the repairing and welding of large moulds such as plastics and die-casting mould including auto moulds, casing moulds, tire moulds, plastic shell moulds for home appliance, etc. The suspension arm equipped can be lift up and down by electric power and rotate 360 degrees to weld moulds of 3 meters long and several tons in weight. And the facility is installed pulley wheels for easy motion, so that it can be moved beside the injection molding machine to weld. It is unnecessary to unpack the mould. Manual table equipped also fits welding of small and medium moulds.

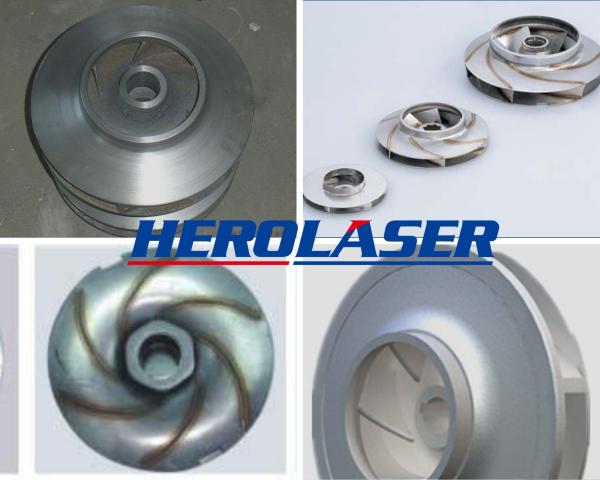

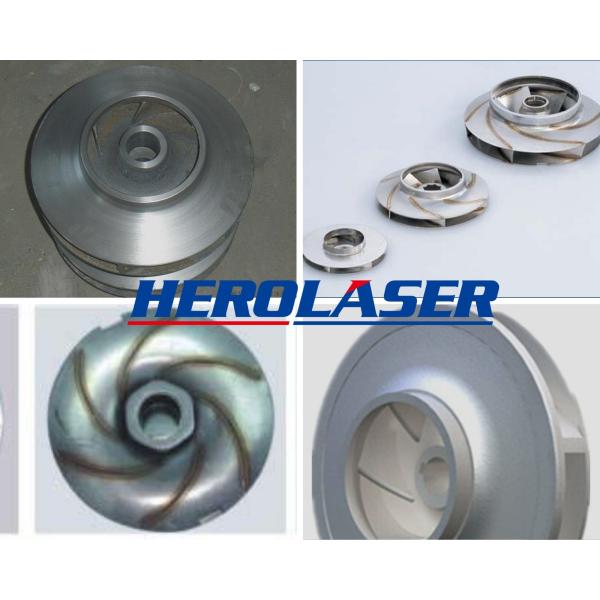

Samples for reference:
1064nm YAG Laser Welder
FAQ
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample welding or testing is available
  • Progressing solution design to all clients, including distributors and end users.

1064nm YAG Laser Welder
