500W High Precision Laser Cutting Machine
500W High Precision Laser Cutting Machine
500W High Precision Laser Cutting Machine
500W High Precision Laser Cutting Machine
Specifications
Brand Name :
Herolaser
Model Number :
ML-CT-A01-500W
Certification :
CE, FDA
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
200 sets/month
Delivery Time :
20 days
Packaging Details :
Wooden case package: 1700 ×1250 ×1750 mm/1500 KG
Application :
Laser Cutting
Laser wevelength :
1070nm
Electricity demand :
220V /50Hz/32A
Output power :
500W
Effective cutting range :
600mm*350mm
Cutting thickness :
≤2mm
Cutting length range :
within 3000mm
Cutting speed :
≤10000mm/min
Description

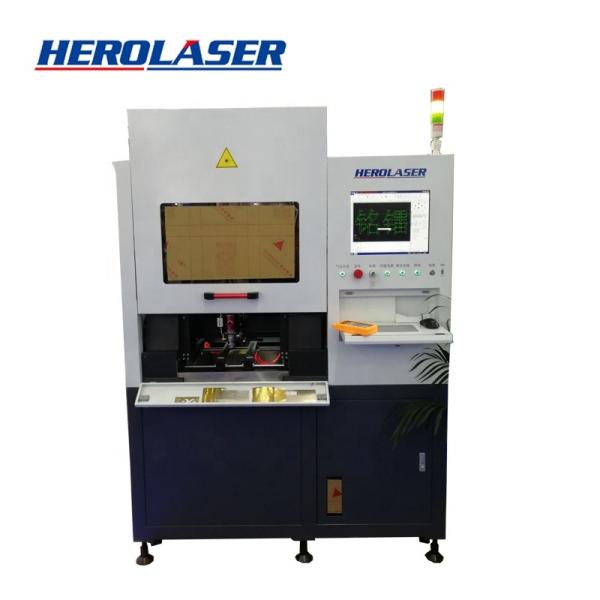

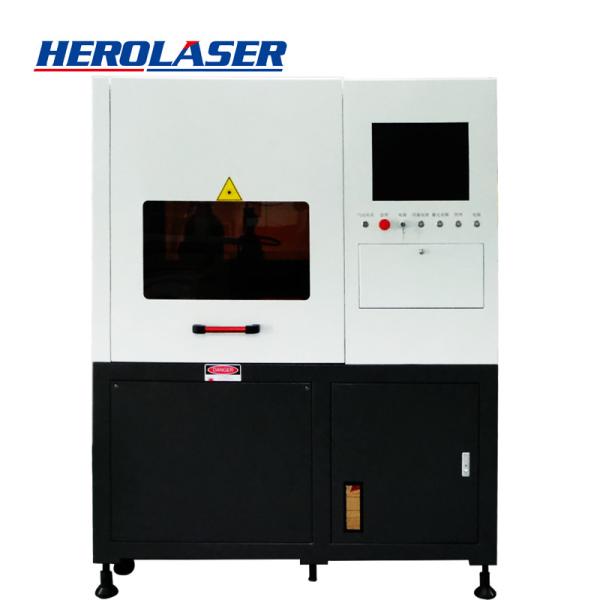

Compact Design High Precision Fiber Laser Cutting Machine in Small Scale

Introduction of machine:
This model adopts high-precision linear motor workbench, high precision, fast speed; optional high-precision CCD automatic positioning, automatic calibration. The whole process controlled by automatic computer software, the software interface real-time feedback, timely understanding of the processing status, non-contact processing program, no mechanical stress and deformation, simple operation, high cutting precision.
Advantages of New machine:
  • Practical new type patent integrated design, can match with different types or manufacturers of laser source, compact structure reliable, safe, practical and reasonable.
  • Using an optical marble platform, anti-vibration frame design, suitable for high speed movement, high stability.
  • High-precision, with full feedback linear motor workbench, speed is fast; large working area visual precision positioning is optional, automatic precision calibration.
  • The multi-function integrated control, independent research and development of patent software, software automatic control in processing, the software interface real-time feedback, showing all functions and all parts of processing status; non-contact processing mode, no mechanical stress and deformation.
Product parameters:
Item Parameters
Laser wavelength 1070nm
Maximum output power 500W
Effective cutting range 600mm*350mm
Cutting thickness ≤2mm
Cutting length range within 3000mm
Cutting speed ≤10000mm/min
Workable positioning accuracy ≤0.05mm
Repeat positioning accuracy ≤±0.01mm
Electricity demand AC220V±5%/50Hz
Power consumption ≤3.5kw
Cabinet size 1500mm*1600mm*2000mm

Applied area and materials:
Applied to various metal sheet cutting and punching and other kinds of laser processing, such as hardware, consumer electronics components, various instruments, sheet metal processing industrial cutting; precision cutting and drilling for various metal materials.
Samples for reference:
500W High Precision Laser Cutting Machine
FAQ
1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample cutting or testing is available
  • Progressing solution design to all clients, including distributors and end users.
