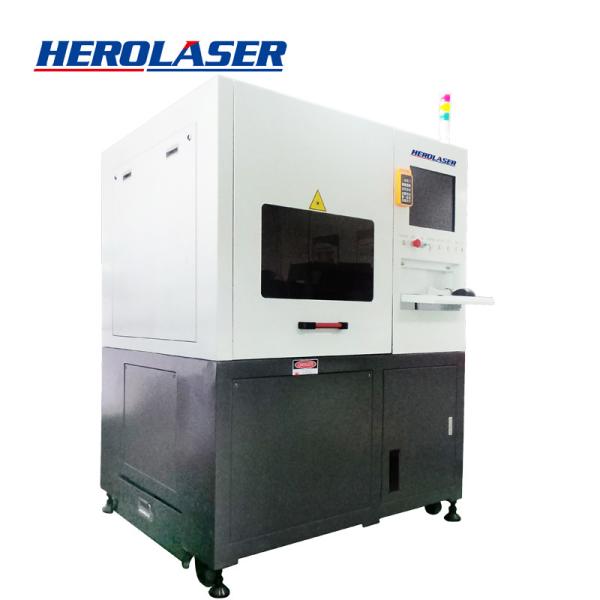

CNC Fiber Laser Cutting Machine 1000W For Metal Sheet
CNC Fiber Laser Cutting Machine 1000W For Metal Sheet
Specifications
Brand Name :
HEROLASER
Model Number :
ML-C4-QF-OC-IW1000
Certification :
CE,FDA
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
600 Sets Per Month
Delivery Time :
12 days
Packaging Details :
Wooden case package: 1700 ×1250 ×1750 mm/1500 KG
Application :
Small size Precision Laser Cutting Machine
Laser Type :
Fiber Laser
Cutting Thickness :
depends on laser power
Condition :
New
Applicable Material :
Metal
Cutting speed :
≤10000mm/min
Description

metal sheet cnc fiber laser cutting machine 1000W fiber laser cutting machine

Product Introduction

Precious metal precision laser cutting machine adopts Herolaser original double precious metal recycle system.Imported fiber laser source,high-profile cutting head,high precision rotary servo motors,with professional laser cutting control software and automatic following focalizing system,it can fully automatic adjust the focus position following the heights of bent cutting work piece to ensure the cutting quality.Automatic feeding system and bangle,rings rotary cutting system can be optional.

Advantages and Features

1
  • Original recovery system: fully enclosed double-layer protection, cutting inside the cavity, the recovery rate is greater than 99.95%
2
  • High cutting precision, fast speed, narrow cutting seam, extremely small heat-affected zone, smooth cutting surface without burrs
3
  • Fiber life can reach 100,000 hours

Technical Specs

S.N Item Specifications
1 Model type Precious metal precision cutting machine
2 Laser wavelength 1070nm
3 Maximum output power 1000W
4 Effective cutting range 600*350mm
5 Cutting thickness ≤2mm
6 Cutting length range Within 3000mm
7 Cutting speed ≤10000mm/min
8 Positioning accuracy of worktable ≤0.05mm
9 Repeated positioning accuracy of worktable ≤±0.01mm
10 Electricity demand AC 220V ±5% /50Hz

Applications:

It is suitable for a variety of laser processing such as cutting and perforating a variety of metal sheets, such as cutting of hardware, consumer electronic components, various instruments, and sheet metal processing.

Cutting samples for reference

CNC Fiber Laser Cutting Machine 1000W For Metal Sheet

CNC Fiber Laser Cutting Machine 1000W For Metal Sheet

FAQ

CNC Fiber Laser Cutting Machine 1000W For Metal Sheet
