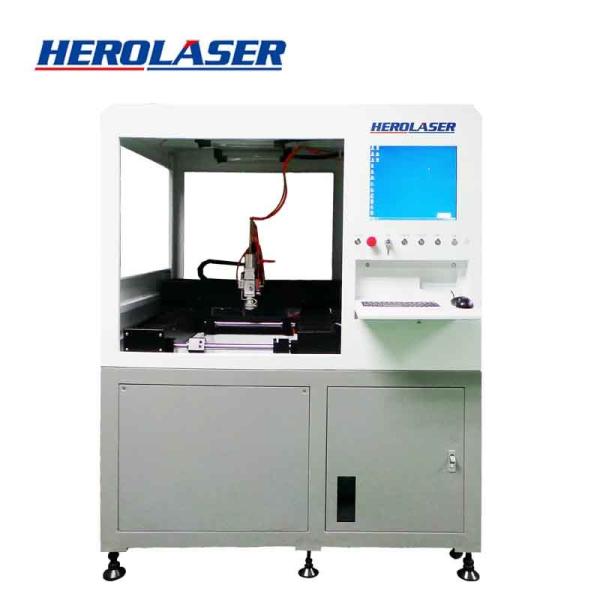

Multifunctional 500W High Precision Laser Cutting Machine For Eyewear Frame
Multifunctional 500W High Precision Laser Cutting Machine For Eyewear Frame
Specifications
Brand Name :
Purple Horn
Model Number :
ML-CP-A01-500W
Certification :
CE and FDA
Place of Origin :
China
MOQ :
1 set
Price :
25000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 sets/ month
Delivery Time :
7-15 days
Packaging Details :
plywood box
Applicable Material :
metal
Laser Type :
Fiber Laser
Cutting Area :
600*400mm or 600*600mm
laser source :
Raycus, Max, IPG, nlight
cutting head :
Precitec, WSX, Raytool, IPG
control software :
Cypcut
Graphic Format supported :
AI, BMP, Dst, Dwg, DXF
Cooling Mode :
water
cutting precision :
0.02mm
Description

High Precision Eyewear Frame Laser Cutting Machine

Features

  • Practical new type integrated design, compact structure, reliable, safe and practical.
  • Adopts optical marble worktable, anti-vibration frame design, suitable for high-speed moving, high stablity.
  • High-precision, ful feedback linar motor worktable, high-speed. The high-precision vision positioning system is optional.
  • Multi-functions integrated controlled, self-developing patented software, the processing is automatic, the PC interface real-time feedbacks, display all the functions and working status. Non-contact type processing, no mechanical deformation.
Applicable materials and fields
  • Suitable for various of metallic thin sheet cutting, drilling, such as consume electronics parts, metallic parts, panels.
  • Various of metallic material precision cutting and drilling.
Model list
No. Name Parameter
1 Laser type Imported fiber laser source
2 Laser power 500W
3 Cutting range 200x200MM
4 Cutting thickness Max. 3.0MM
5 Cutting line width 0.04- 0.06MM
6 Cutting speed ≤10M/MIN
7 Repeatability positioning accuracy 0.01MM
8 Cooling mode Water cooled
9 Air pressure required 1.2- 1.5MPA
10 Total power 4.5KW
11 Power supply 220V/ 50Hz/ 60A
12 Dimensions 1200x2000x1400MM
13 Weight 1200KG
14 Optional Smoke and dust recycling and purifying system
