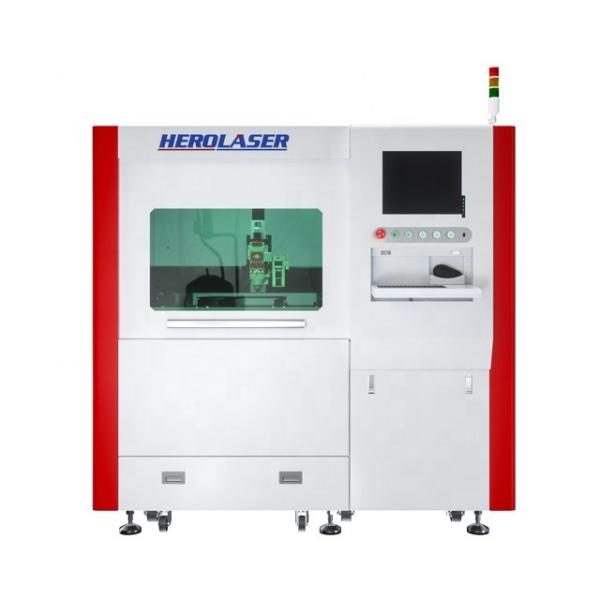

1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass
1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass
1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass
1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass
1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass
1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass
1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass
1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass
1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass
1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass
Specifications
Brand Name :
Herolaser
Model Number :
C13
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
25 sets per month
Delivery Time :
20-45 days
Packaging Details :
Wooden case
Product name :
C13 Precision Laser Cutting Machine
Warranty :
2 years for laser source
Processing Size :
1300*1300mm
Accuracy of Position :
0.01mm
Accuracy of Repeat :
0.003mm
Type :
Square, round, special pipe
Description

C13 0.03 Precision 1300*1300mm Processing Cnc Fiber Laser Cutter Cutting Machine Equipmemt For Glass

Functions of C13 Cutting Machine

Model Features:
- Can cut all kinds of graphics on planiform plates.


- High precision, fast speed, narrow cutting seam, minimum heat affected zone, smooth cutting surface without burrs.


- The laser cutting head will not touch the surface of the material and will not scratch the workpiece.


- Narrow thin kerf, small heat-affected zone, minimal local deformation of the workpiece, no mechanical deformation.


- Good processing flexibility, can process any graphics.


- It can cut steel plate, stainless steel, aluminum alloy plate, hard alloy and other hard materials without deformation.


- The parallel exchange platform is used to complete the exchange within 20 seconds, which greatly improves the processing efficiency.


- Low power consumption, no reaction gas required, compressed air is used as auxiliary gas for laser cutting.

Optical performance parameter
Laser source wavelength ML-C6-QF
Output power rate of the Laser source 1070nm
Effective cutting area 600mm*600mm
Cutting thickness (depend on Laser source power) Carbon ≤8mm；Stainless Steel ≤4mm
Aluminum Alloy ≤2mm; Copper ≤2mm
Positioning accuracy ≤±0.03mm
Repeated position accuracy ≤±0.02mm
Max speed of X-axis ≤20m/min
Max speed of Y-axis ≤20m/min
Max speed of Z-axis ≤17m/min
Synthesis speed ≤20m/min
Max accelerated speed 0.3G
Bearing weight 300KG
Electric demand AC220V±5%50Hz
Total Power consumption 6KW-25KW
Dimension 1880*1450*2100(mm)
Machine weight About 1200KG
Support Graphical format DXF

1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass

1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass

1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass

1300x1300mm Processing CNC Fiber Laser Cutter 0.03 Precision For Glass
