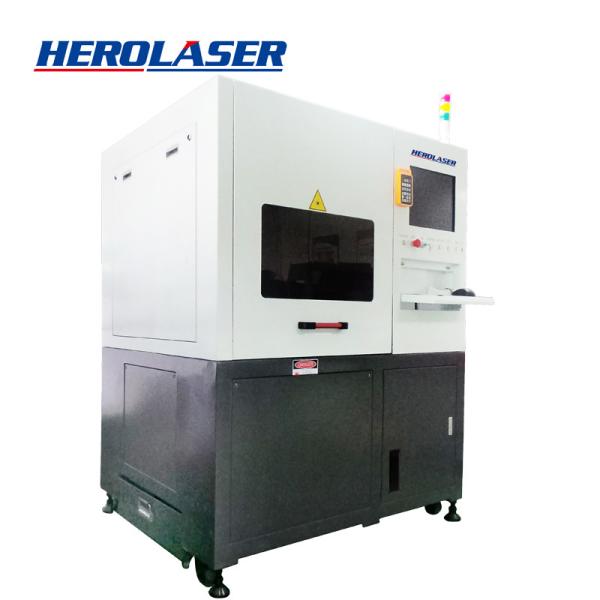

300 500 800 1000W IPG Fiber Laser Cutting Machine
300 500 800 1000W IPG Fiber Laser Cutting Machine
300 500 800 1000W IPG Fiber Laser Cutting Machine
300 500 800 1000W IPG Fiber Laser Cutting Machine
300 500 800 1000W IPG Fiber Laser Cutting Machine
300 500 800 1000W IPG Fiber Laser Cutting Machine
300 500 800 1000W IPG Fiber Laser Cutting Machine
300 500 800 1000W IPG Fiber Laser Cutting Machine
Specifications
Brand Name :
Purple Horn
Model Number :
ML-C4-QF-OC-IW500
Certification :
CE,FDA
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
600 Sets Per Month
Delivery Time :
12 days
Packaging Details :
Wooden case package: 1700 ×1250 ×1750 mm/1500 KG
Application :
Laser Cutting
Laser wevelength :
1070nm
Electricity demand :
220V /50Hz/32A
Output power :
500W
Effective cutting range :
600mm*350mm
Cutting thickness :
≤2mm
Cooling Mode :
WATER COOLING
Cutting speed :
≤10000mm/min
Description

300w 500w 1000w 800w fiber laser cutting machine with IPG laser source

Product Introduction

This model adopts high-precision linear motor working platform, high precision, fast speed, optional high-precision CCD automatic positioning and automatic correction. The entire processing process is automatically controlled by computer software, and the software interface provides real-time feedback to understand the processing status in time, with non-contact processing schemes, no mechanical stress and deformation, simple operation and high cutting accuracy.

Advantages and Features

1
  • Original recovery system: fully enclosed double-layer protection, cutting inside the cavity, the recovery rate is greater than 99.95%
2
  • High cutting precision, fast speed, narrow cutting seam, extremely small heat-affected zone, smooth cutting surface without burrs
3
  • Fiber life can reach 100,000 hours

Technical Specs

S.N Item Specifications
1 Model type Precious metal precision cutting machine
2 Laser wavelength 1070nm
3 Maximum output power 500W
4 Effective cutting range 600*350mm
5 Cutting thickness ≤2mm
6 Cutting length range Within 3000mm
7 Cutting speed ≤10000mm/min
8 Positioning accuracy of worktable ≤0.05mm
9 Repeated positioning accuracy of worktable ≤±0.01mm
10 Electricity demand AC 220V ±5% /50Hz
11 Whole machine power consumption ≤3.5KW
12 Equipment size 1500*1600*2000mm

Applications:

It is suitable for a variety of laser processing such as cutting and perforating a variety of metal sheets, such as cutting of hardware, consumer electronic components, various instruments, and sheet metal processing.

Cutting samples for reference

FAQ

1. How is the payment?
  • 30% deposit before production and the balance 70% before shipment
2. How is the delivery and shipment?
  • Ship in 7 days after 100% payment;
  • Plywood box packaging
3. How will you guarantee aftersales services?
  • We offer two warranty for laser source, one year for whole machine and lifetime maintenance services.
  • Engineers available to service machinery overseas
  • Free technical training in our factory
  • Free sample can be sent to you
  • Professional technical team 24 hours online
4. How about your presales service?
  • Speeding offer within 8 hours quick response and free consulting.
  • Free sample cutting or testing is available
  • Progressing solution design to all clients, including distributors and end users.
